VICTORY Elegant 30 Inch Wall Mount Range Hood with Remote Blower, 450 CFM (Elegant-30-RB)
List price $2,249.00Marked down to $1,619.28
Choose your blower below
- Free shipping to the lower 48 states
- Ships direct from Victory Range Hoods
- Authorized Victory dealer
- Ships to the lower 48 states only (no AK, HI or PR)
Questions before you order? Call (508) 419-4276
Overview

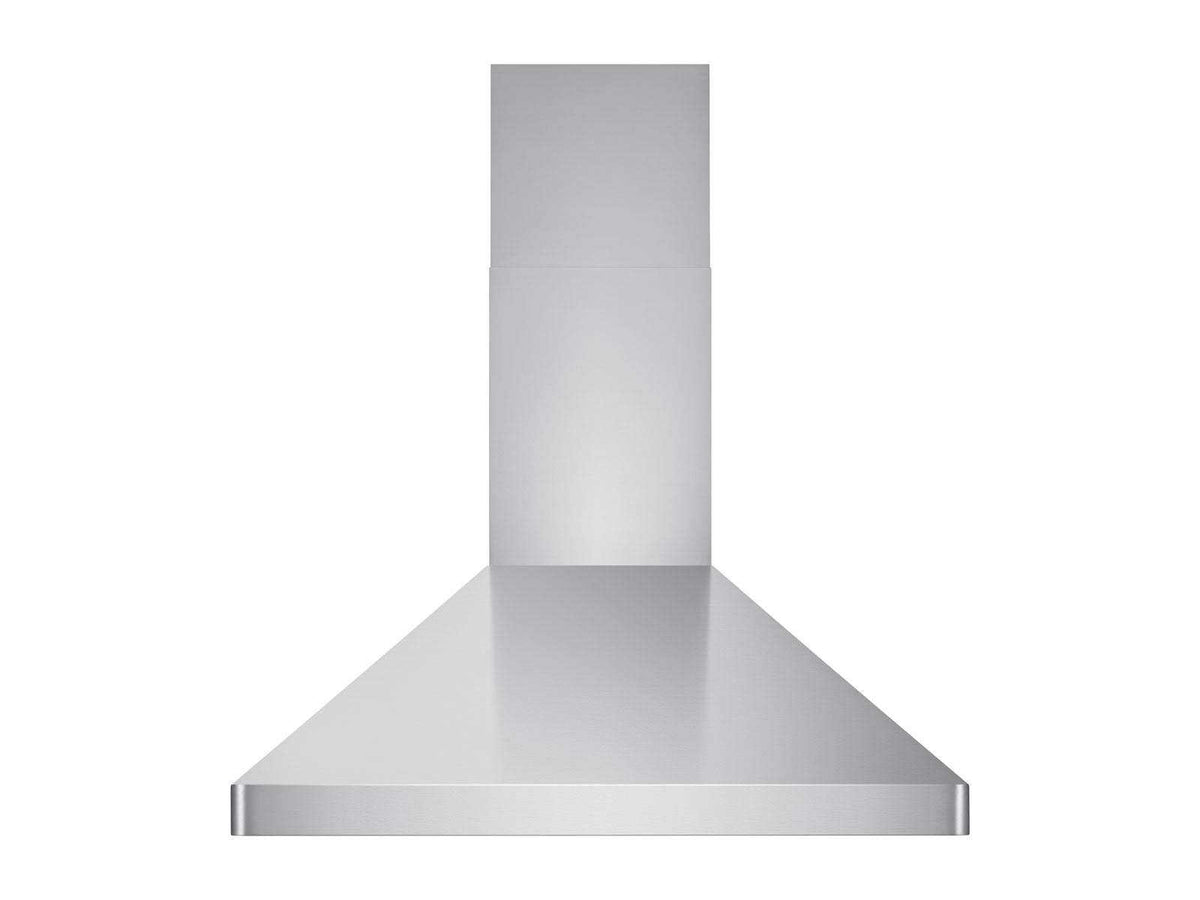

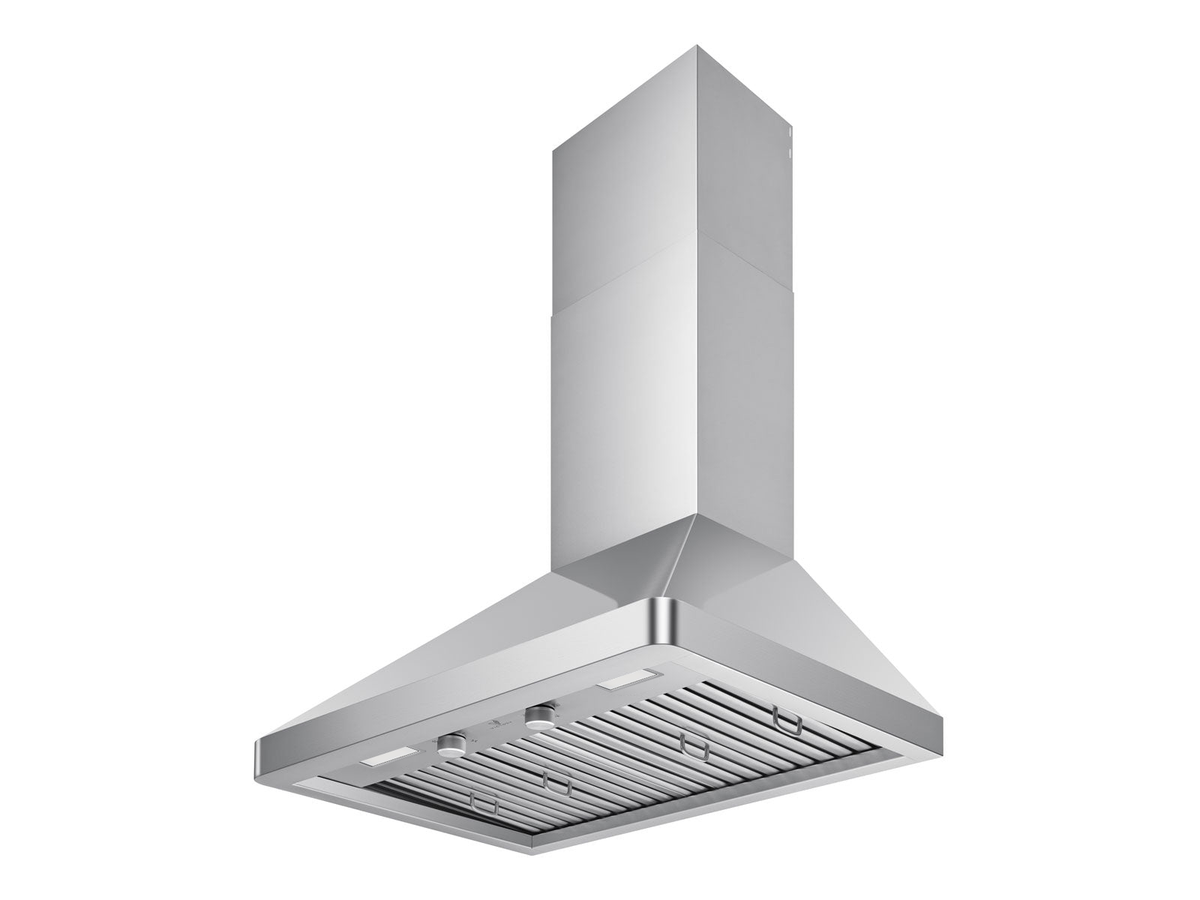

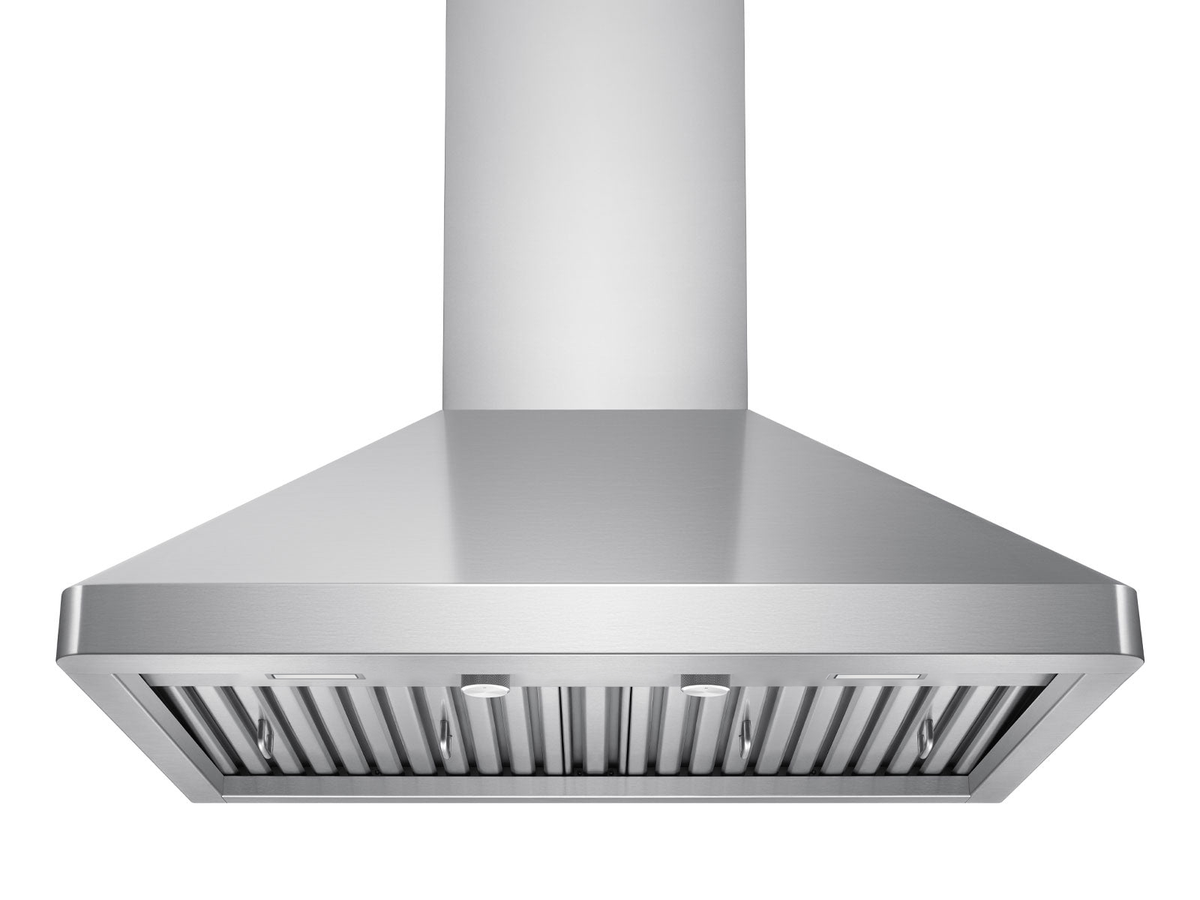

Victory Elegant 30 Inch Wall Mount Range Hood with Remote Blower
The Victory Elegant 30 inch wall-mount chimney hood pairs a stainless canopy with a 450 CFM remote blower. The motor sits in the duct run or on an outside wall instead of inside the hood, so less fan noise stays in the kitchen.
Motor out of the room

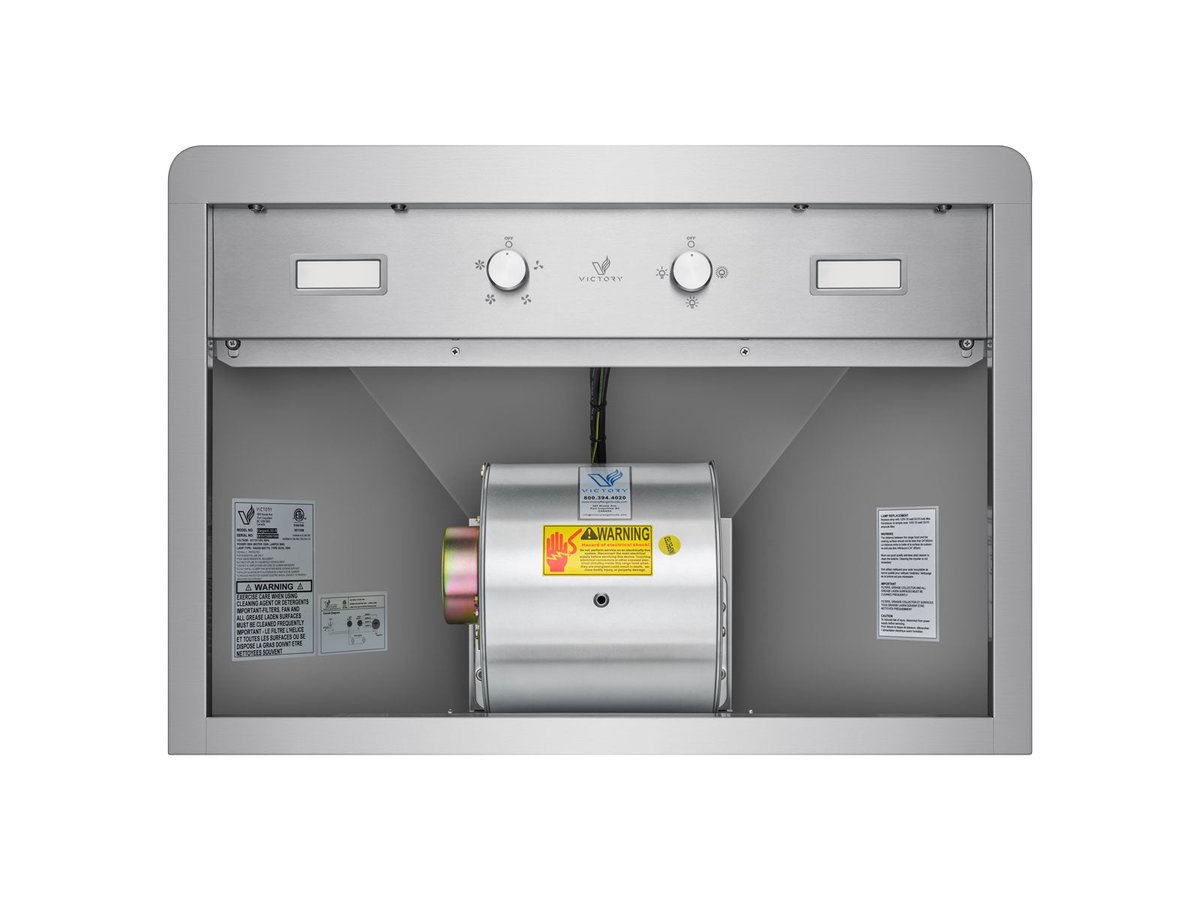

The 450 CFM blower mounts inline or on an outside wall, so the loudest part is away from the kitchen.

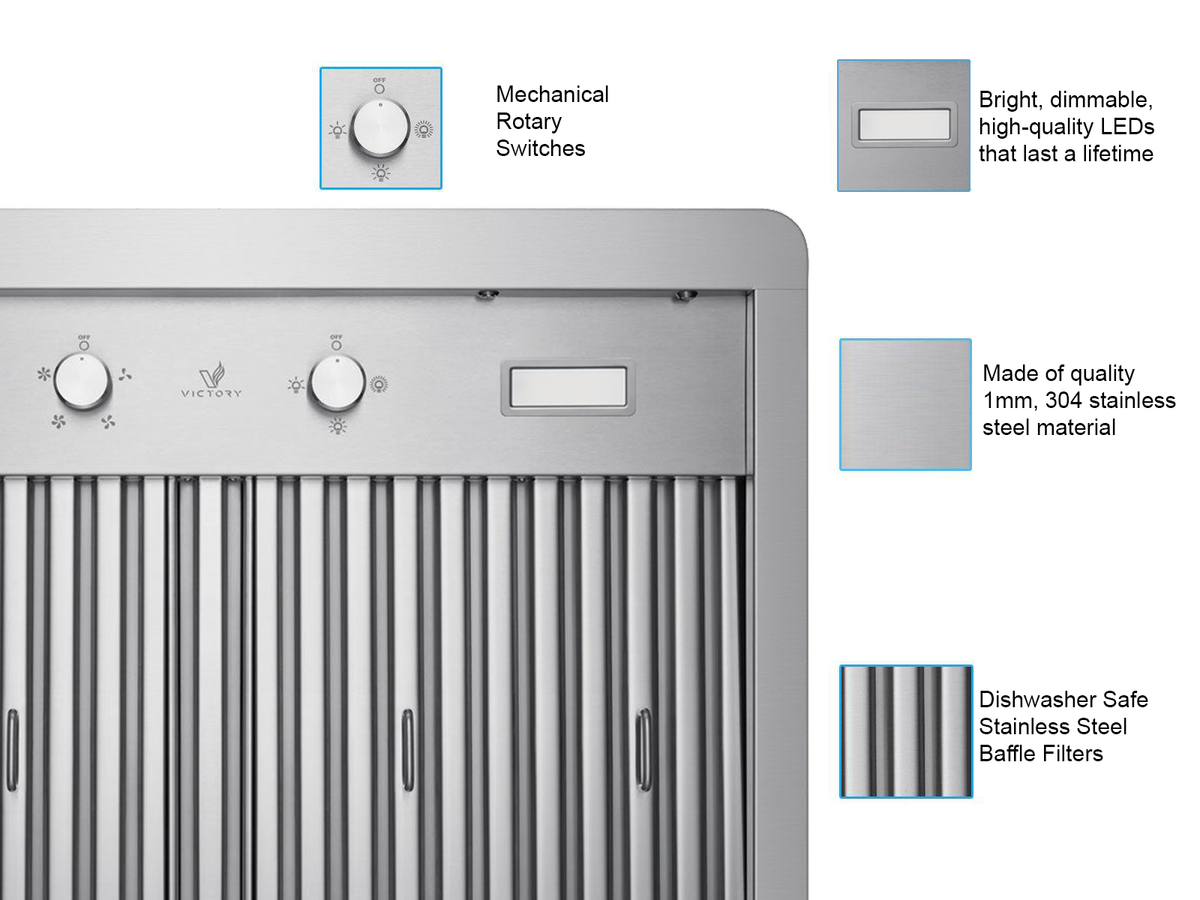

Knobs that just work
Mechanical rotary switches control the fan and dim the lights. No touch panel to fuss with.
Built in stainless
1 mm, 19 gauge 304 stainless steel body with stainless baffle filters.
At a glance
- Mount
- Wall
- Airflow
- 450 CFM max, 4 speeds
- Duct size
- 6" round, top
- Hood size
- 29-1/2" W x 20-3/4" D
- Material
- 304 stainless steel, 1 mm (19 gauge)
- Lights
- 2 dimmable LED lights, 2.5 W, 12 V (3000K)
- Filters
- Stainless steel baffle filters with grease tunnel and grease trap
- Power
- 120V 60Hz
- Warranty
- Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered.
- Model
- Elegant
Will it fit?
Check your kitchen
Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.
Our suggestions
Answer what you know. Your suggestions show up here.
Local code may differ. Your installer and building department have the final say.
Want a second look? Call (508) 419-4276 or email us.
Options and specs
Options and full specifications
| Option | Part number | Price |
|---|---|---|
| 450 CFM Inline450 CFM inline blower, 6" duct | VICTORY-Elegant-30-RB-450-CFM-INLINE | |

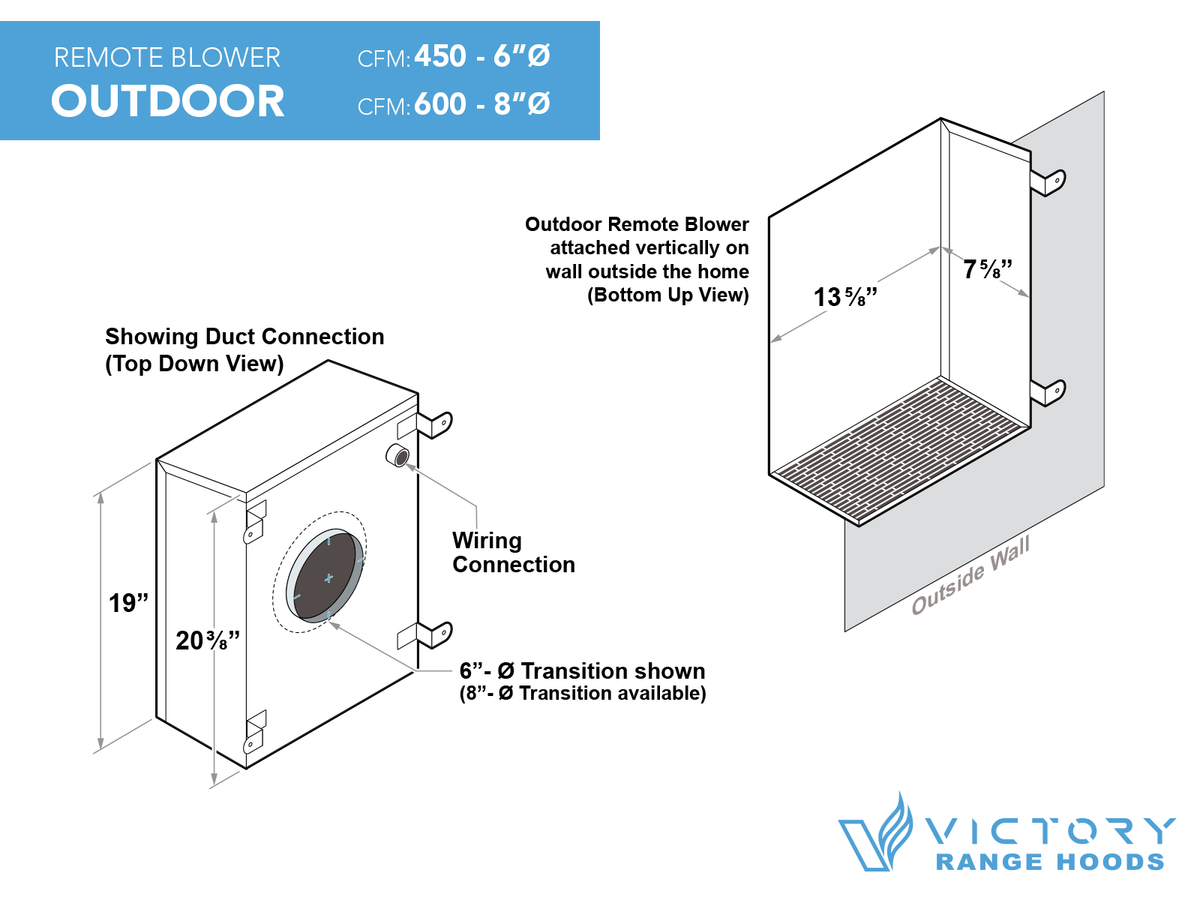

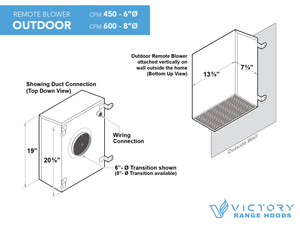

| 450 CFM Outdoor Wall-Mounted450 CFM outdoor wall blower, 6" duct | VICTORY-Elegant-30-RB-450-CFM-OUTDOOR-WALL-MOUNTED |
Full specificationsFrom the maker's spec sheet and manual, for you or your installer
| Model | Elegant |
|---|---|
| Mount type | Wall |
| Body | 304 stainless steel, 1 mm (19 gauge) |
| Finish | Brushed stainless |

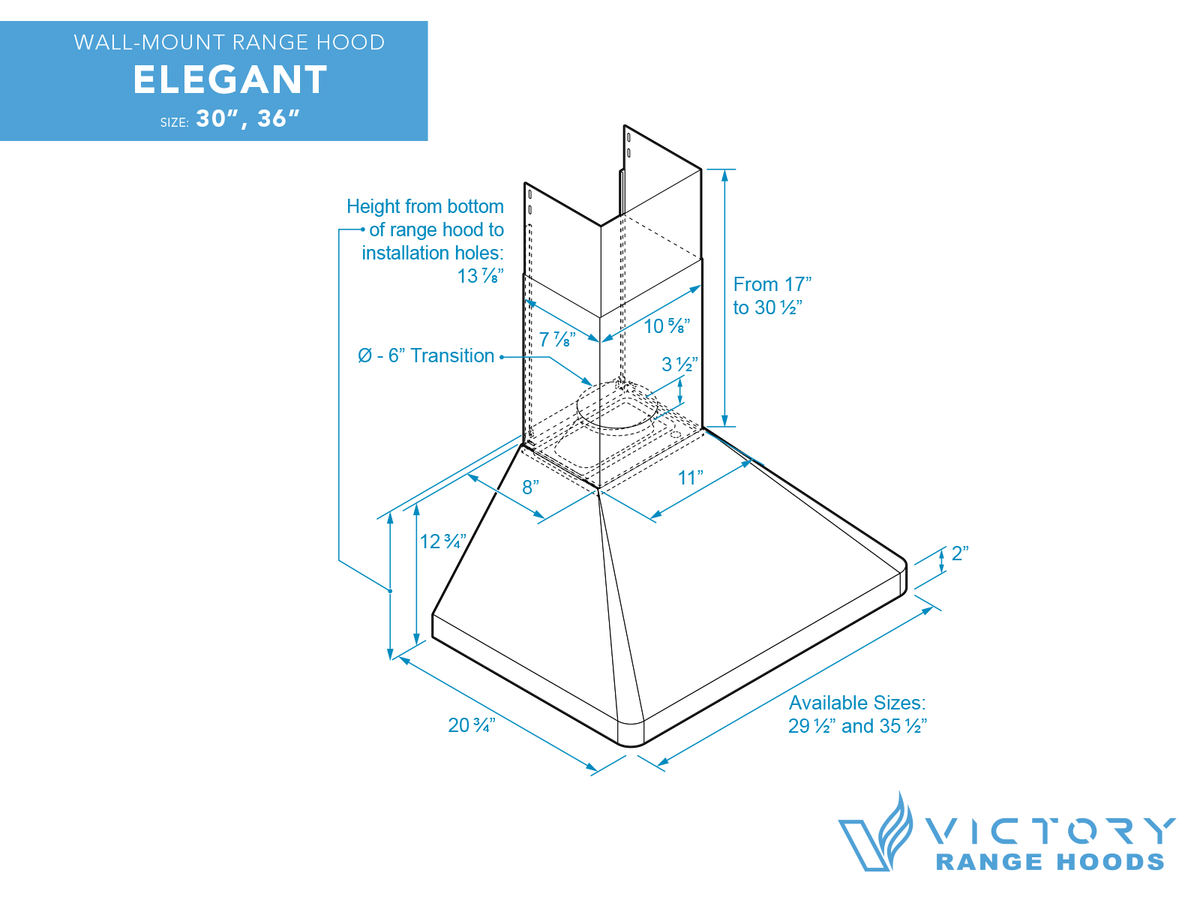

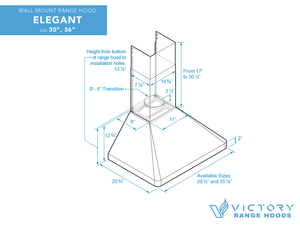

| Size | 29-1/2" W x 20-3/4" D x 12-3/4 hood body; chimney cover adjusts from 17 to 30-1/2 above it" H |
| Blower | Remote blower (inline or outdoor wall-mounted), 450 CFM; choose one |
| Airflow | 450 CFM max |
| Exhaust | 6" round, top |
| Longest duct run | 50 ft equivalent |
| Height above cooktop | 24" to 30" |

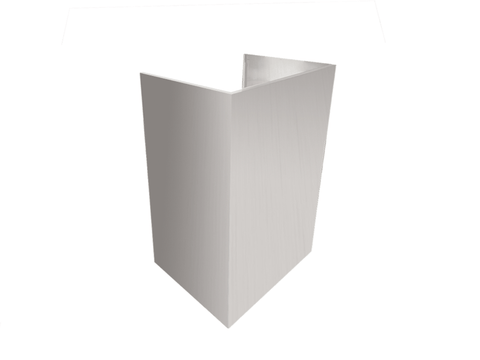

| Ceiling height | 8 to 9 ft with the included chimney (max 108 in); Victory sells extensions for 10 ft and 12 ft ceilings |
| Power | 120V 60Hz |
| Electrical | Hood plugs into a 120V outlet inside the chimney area (at least 76 in from the floor) on a separate 15 A circuit. Have a qualified installer confirm the remote blower wiring. |
| Lights | 2 dimmable LED lights, 2.5 W, 12 V (3000K) |
| Filters | Stainless steel baffle filters with grease tunnel and grease trap |
| Controls | Mechanical rotary knobs: 4-speed blower switch and a light dimmer |
| Certifications | cETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113 |
| Warranty | Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered. |
What you get
What's in the box
- Elegant range hood
- Upper and lower chimney coversTelescoping
- 6 inch round transition with gasket
- Damper flapsSkip if your wall or roof cap has a damper
- Stainless steel baffle filters, spacers and grease tunnelCount varies by size
- Filter handles (x4)
- Chimney mounting bracket
- Anchors and screwsConcrete anchors (x2), drywall anchors with screws (x6), M4 screws for the chimney (x4) and filter handles (x4)

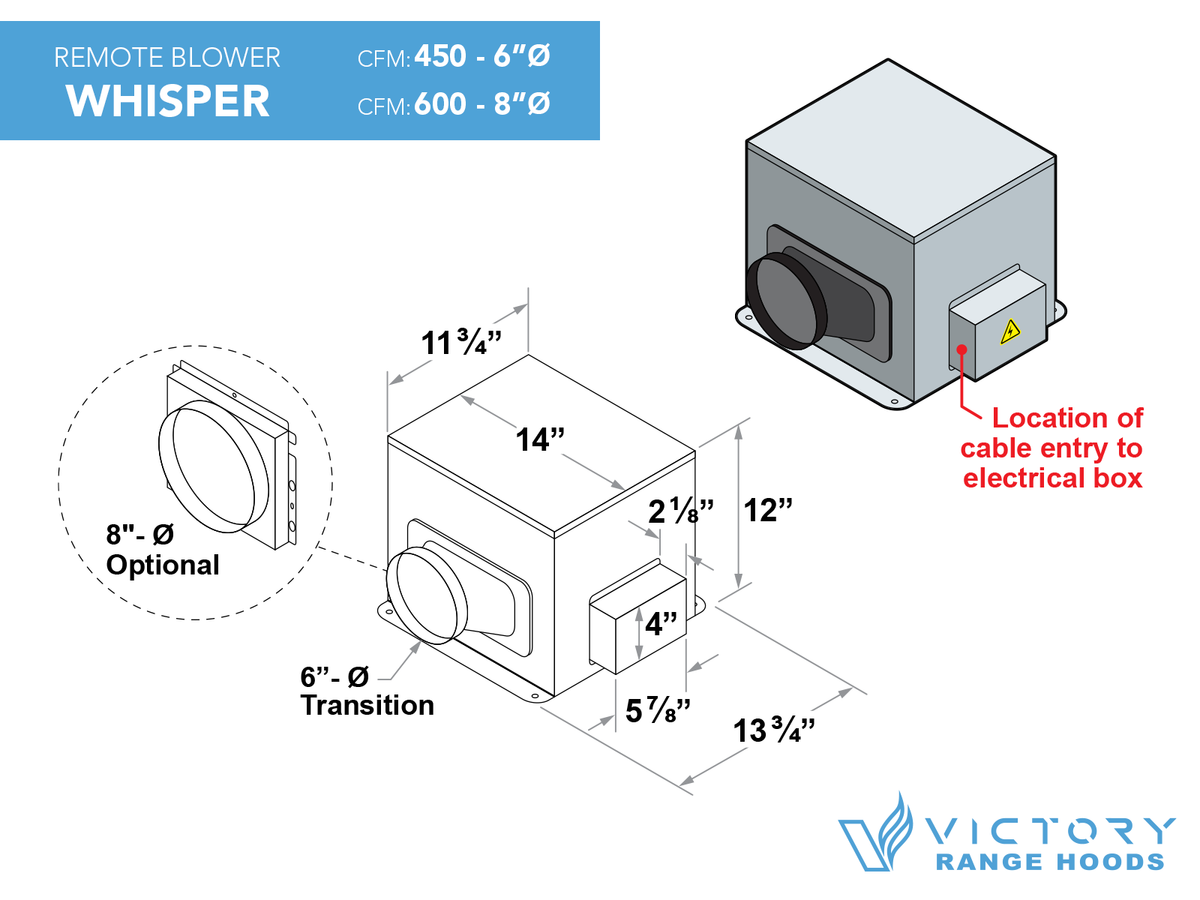

- 450 CFM remote blowerInline or outdoor wall-mounted, as selected
Installing it
How it goes in
We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.
- 1
Test first
Check the hood's lights and controls before mounting.
- 2
Plan the blower location
Decide where the inline or outdoor blower goes and add a brace to support it.
- 3
Add backing
Screw plywood to the wall studs behind the hood. Do not rely on drywall anchors.
- 4
Mount the hood
Fit the 6 inch transition and screw the hood to the backing 24 to 30 inches above the cooktop.
- 5
Run the duct
Connect 6 inch metal duct from the hood to the blower and out to the cap. Tape every joint and insulate in cold climates.
- 6
Chimney and filters
Install the chimney bracket and covers, then the grease tunnel and baffle filters.
We sell the hood, not the install
We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.
Instructions and drawings
Downloads
Save or print these for your installer before the work starts.
Specs and drawings
- Victory Elegant dimensionsDownload
Questions
Frequently asked questions
Inline or outdoor blower: which should I pick?
Both are 450 CFM. Pick inline if the blower can sit in the duct run, for example in an attic or crawl space. Pick outdoor wall-mounted if your duct exits straight through an exterior wall. Review the path with your installer before ordering.
What duct size does it need?
6 inch round metal duct. Do not reduce it to 4 or 5 inch, avoid plenum boxes, and keep the run as short and straight as you can.
Does it have to vent outside?
Yes. It must be ducted to the outdoors through the roof or a side wall, with a backdraft damper.
How high above the cooktop should it go?
Between 24 and 30 inches from the cooktop to the bottom of the hood, per the manual.
Will it fit my ceiling?
The included chimney fits 8 to 9 foot ceilings. Victory sells extensions for 10 and 12 foot ceilings.
Do I need make-up air?
Possibly. Many local codes look at kitchen exhaust above 400 CFM. Ask your installer or local inspector what applies in your town.
