VICTORY Elegant 30 Inch Wall Mount Range Hood, 600 CFM (Elegant-30)
List price $1,449.00Marked down to $1,043.28You save $405.72
- Free shipping to the lower 48 states
- Ships direct from Victory Range Hoods
- Authorized Victory dealer
- Ships to the lower 48 states only (no AK, HI or PR)
Questions before you order? Call (508) 419-4276
Overview

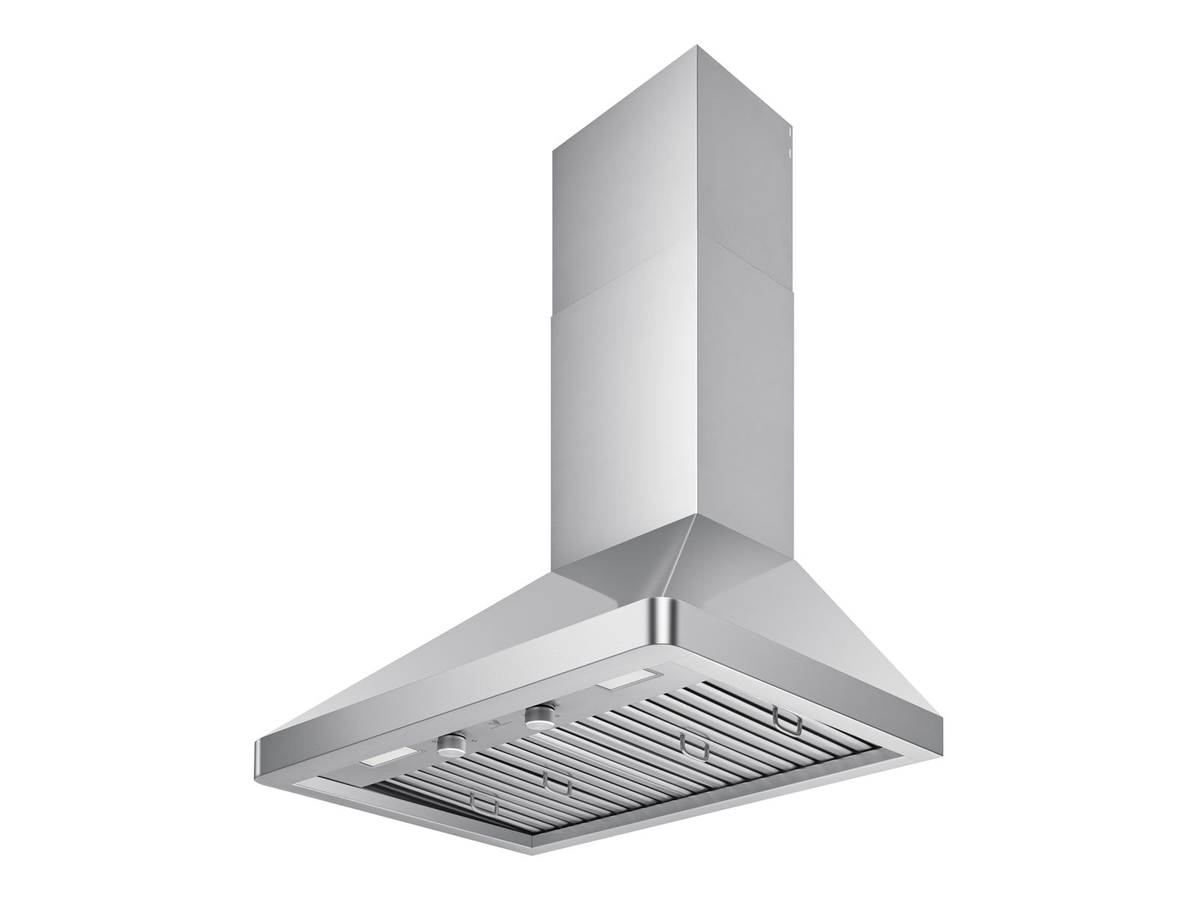

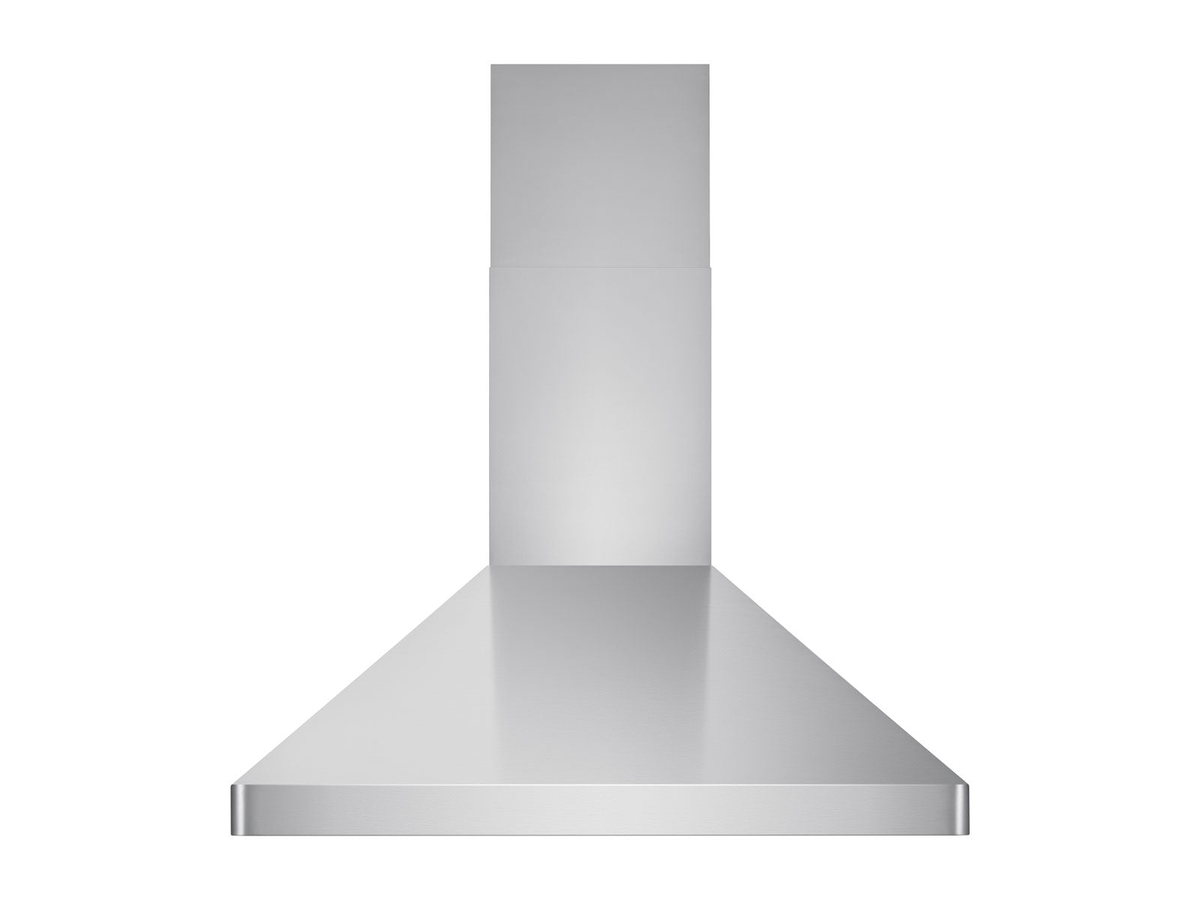

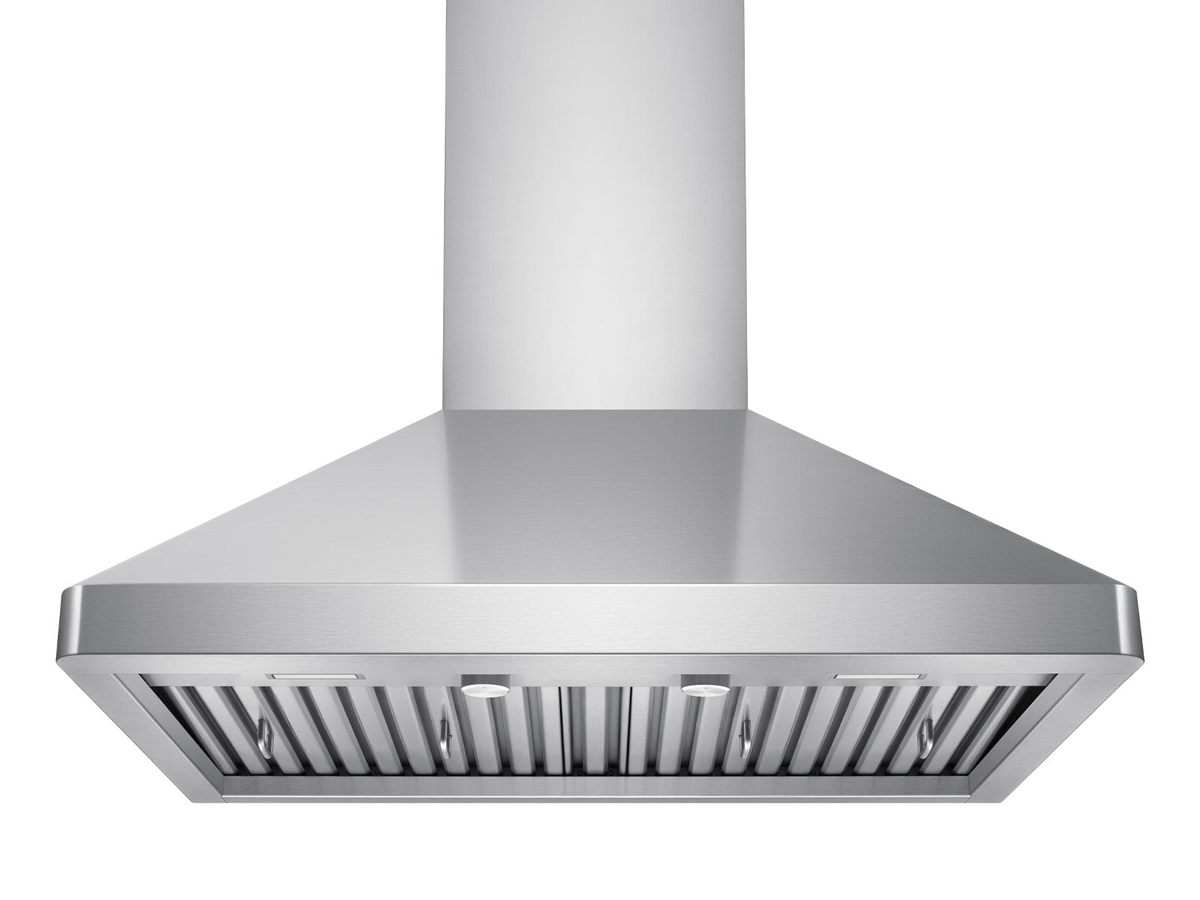

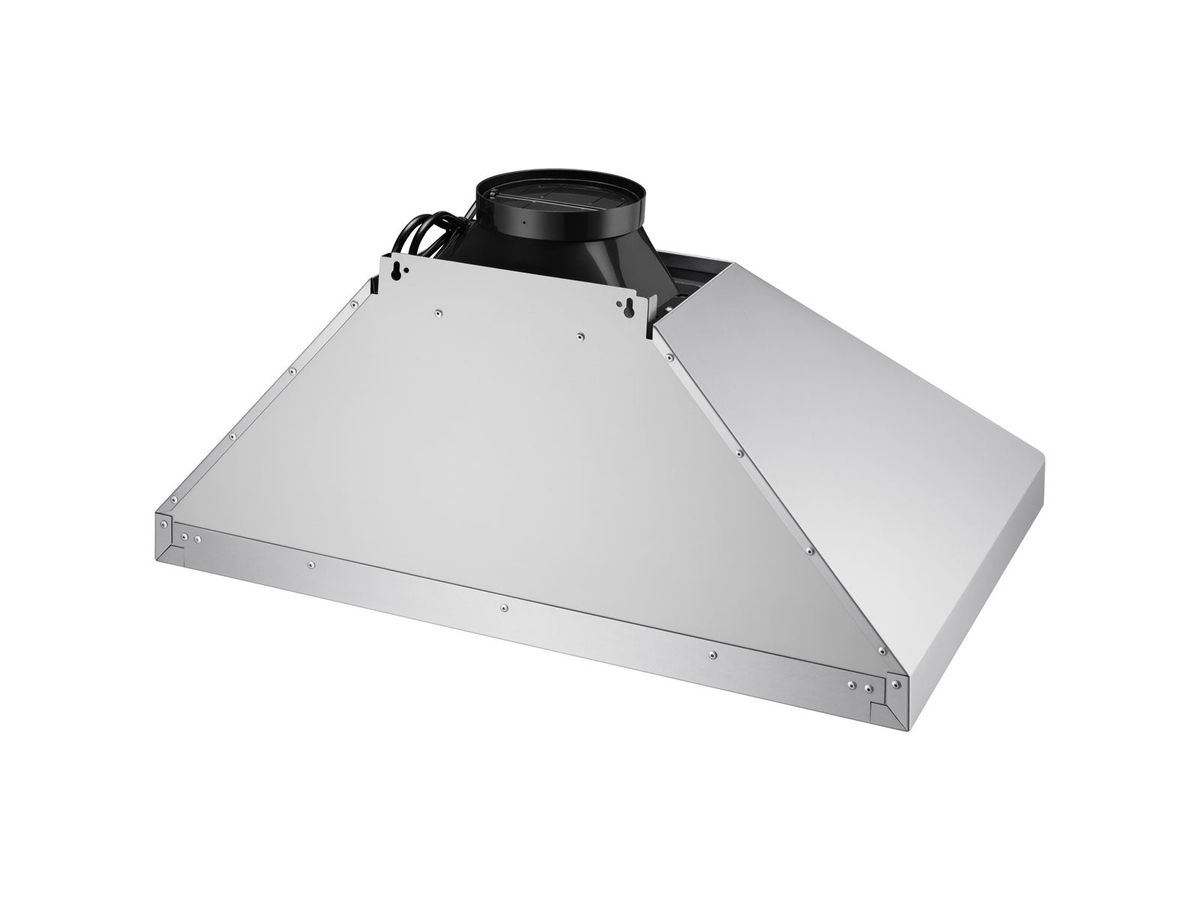

Victory Elegant 30 Inch Wall Mount Range Hood
The Victory Elegant is a 30 inch stainless steel wall-mount chimney hood with a quiet 600 CFM internal blower. Simple rotary knobs, stainless baffle filters and a telescoping chimney make it a solid, no-fuss choice for a 30 inch range on a standard 8 to 9 foot ceiling.
Strong, steady airflow
A 600 CFM all-metal blower with four speeds handles everyday cooking and heavy searing.

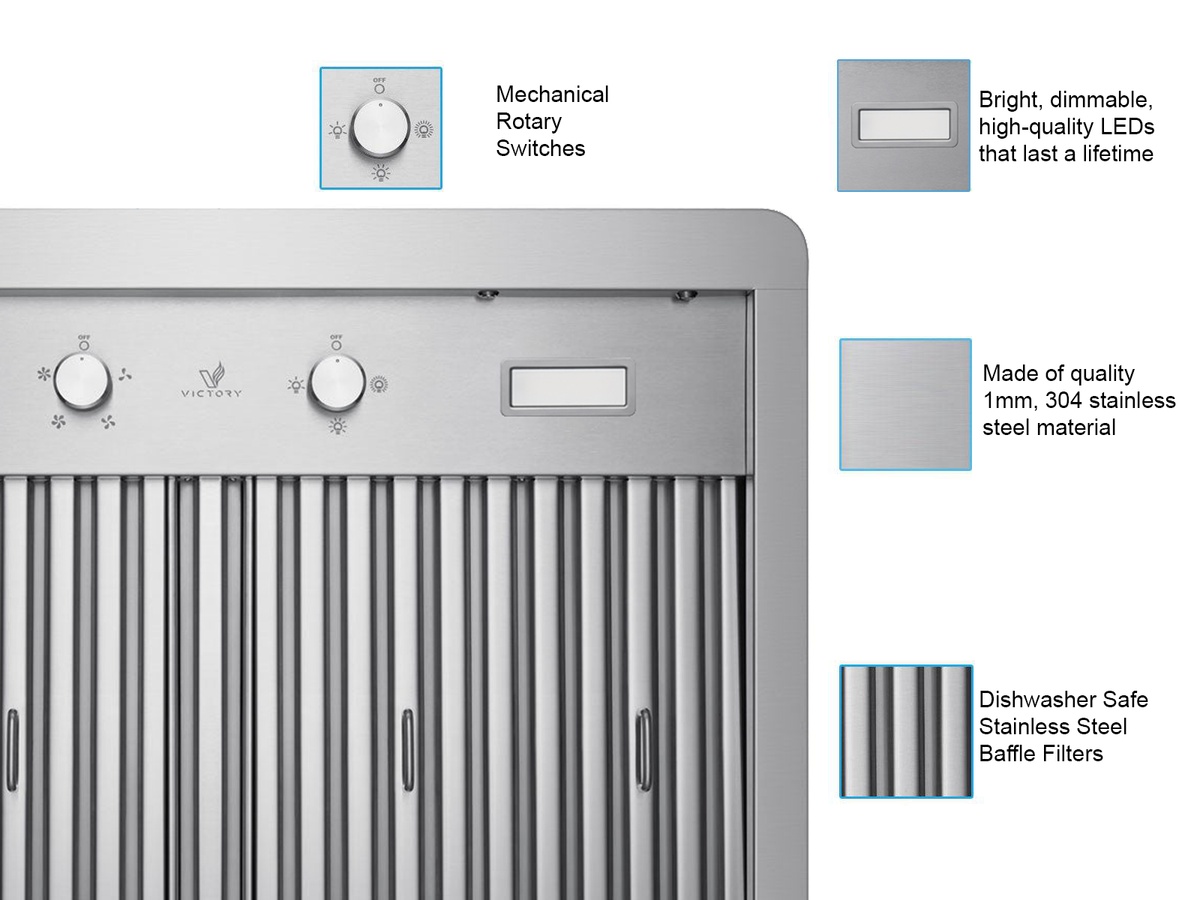

Knobs that just work
Mechanical rotary switches control the fan and dim the lights. No touch panel to fuss with.
Built in stainless
1 mm, 19 gauge 304 stainless steel body with stainless baffle filters.
At a glance
- Mount
- Wall
- Airflow
- 600 CFM max, 4 speeds
- Duct size
- 6" round, top
- Hood size
- 29-1/2" W x 20-3/4" D
- Material
- 304 stainless steel, 1 mm (19 gauge)
- Lights
- 2 dimmable LED lights, 2.5 W, 12 V (3000K)
- Filters
- Stainless steel baffle filters with grease tunnel and grease trap
- Power
- 120V 60Hz
- Weight
- 55.0 lb
- Warranty
- Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered.
- Model
- Elegant
Will it fit?
Check your kitchen
Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.
Our suggestions
Answer what you know. Your suggestions show up here.
Local code may differ. Your installer and building department have the final say.
Want a second look? Call (508) 419-4276 or email us.
Options and specs
Options and full specifications
Full specificationsFrom the maker's spec sheet and manual, for you or your installer
| Model | Elegant |
|---|---|
| Mount type | Wall |
| Body | 304 stainless steel, 1 mm (19 gauge) |
| Finish | Brushed stainless |

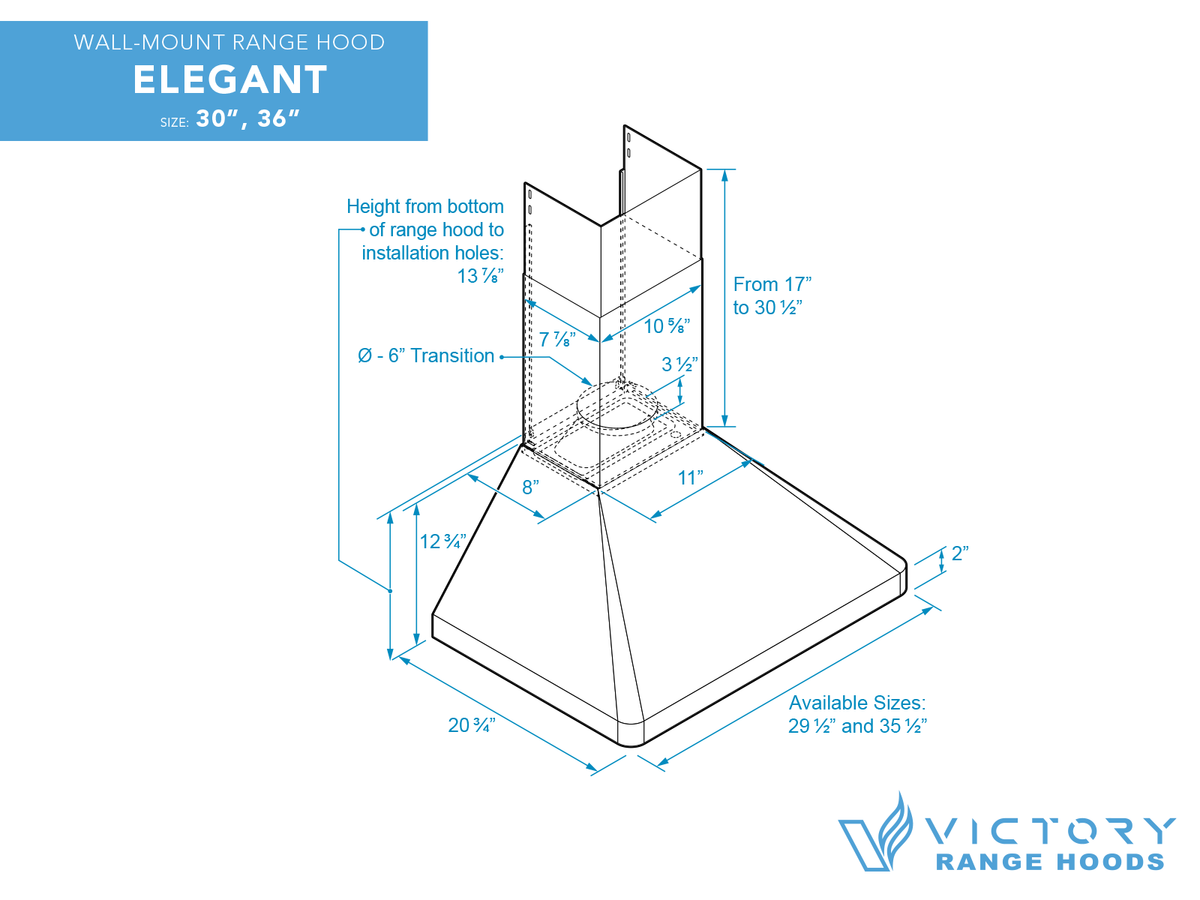

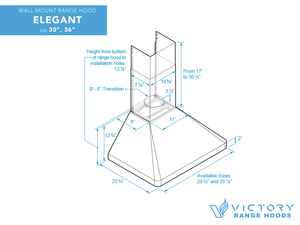

| Size | 29-1/2" W x 20-3/4" D x 12-3/4 hood body; chimney cover adjusts from 17 to 30-1/2 above it" H |

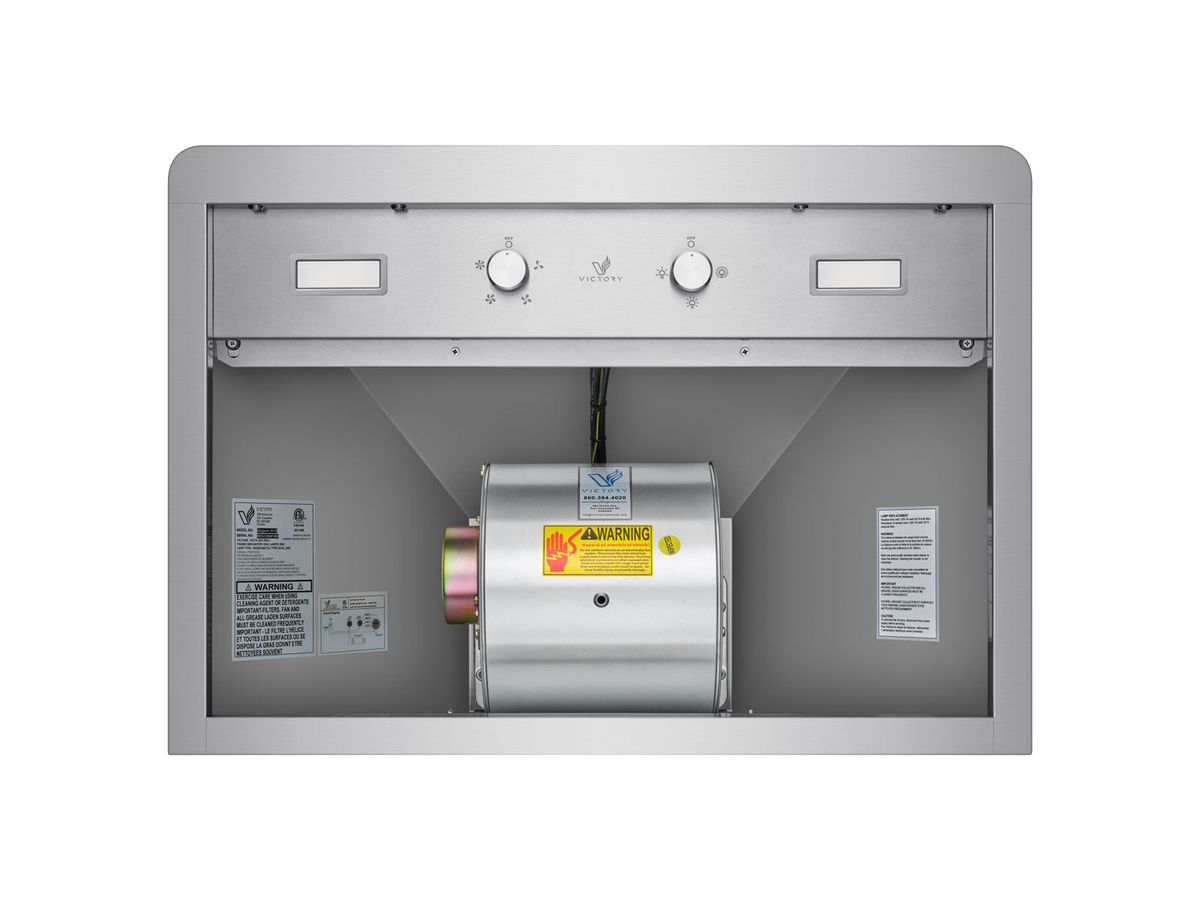

| Blower | Internal, single-chamber centrifugal blower with metal blades |
| Speeds and airflow | 4 speeds: 170 / 310 / 429 / 600 CFM |

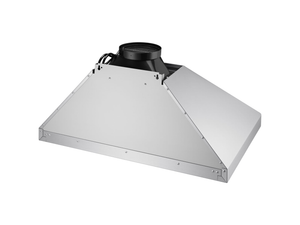

| Exhaust | 6" round, top |
| Longest duct run | 50 ft equivalent |
| Height above cooktop | 24" to 30" |
| Ceiling height | 8 to 9 ft with the included chimney (max 108 in); Victory sells extensions for 10 ft and 12 ft ceilings |
| Power | 120V 60Hz, 165 W |
| Electrical | Plug-in: comes with a cord and plug. Needs a 120V outlet inside the chimney area (at least 76 in from the floor) on a separate 15 A circuit. |
| Lights | 2 dimmable LED lights, 2.5 W, 12 V (3000K) |

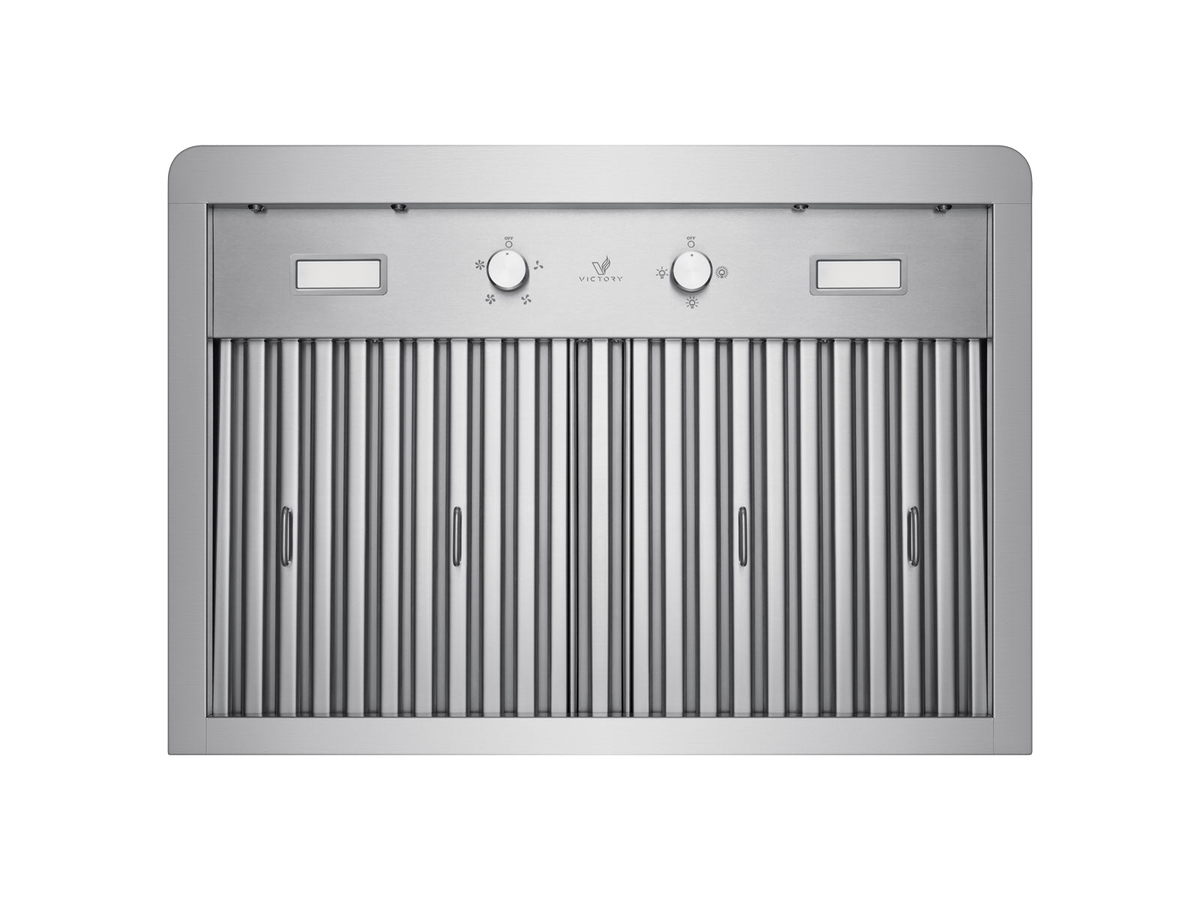

| Filters | Stainless steel baffle filters with grease tunnel and grease trap |
| Controls | Mechanical rotary knobs: 4-speed blower switch and a light dimmer |
| Weight | 55.0 lb |
| Certifications | cETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113 |
| Warranty | Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered. |
| Assembled in | Canada |
What you get
What's in the box
- Elegant range hood
- Upper and lower chimney coversTelescoping
- 6 inch round transition with gasket
- Damper flapsSkip if your wall or roof cap has a damper
- Stainless steel baffle filters, spacers and grease tunnelCount varies by size
- Filter handles (x4)
- Chimney mounting bracket
- Anchors and screwsConcrete anchors (x2), drywall anchors with screws (x6), M4 screws for the chimney (x4) and filter handles (x4)
Installing it
How it goes in
We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.
- 1
Test first
Plug the hood in on a flat surface and check the fan and lights before mounting.
- 2
Plan the vent and power
Mark the 6 inch duct path and place a 120V outlet inside the chimney area, at least 76 inches from the floor.
- 3
Add backing
Cut the drywall and screw plywood to the studs. Do not hang the hood on drywall anchors alone.
- 4
Mount the hood
Attach the 6 inch transition, then screw the hood to the backing 24 to 30 inches above the cooktop.
- 5
Connect the duct
Run 6 inch metal duct to a roof or wall cap with a damper and seal every joint with aluminum tape.
- 6
Chimney and filters
Install the chimney bracket, slide the upper chimney up to the ceiling, then fit the grease tunnel and baffle filters.
We sell the hood, not the install
We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.
Instructions and drawings
Downloads
Save or print these for your installer before the work starts.
Questions
Frequently asked questions
Does it have to vent outside?
Yes. Victory says this hood must be ducted to the outdoors through the roof or a side wall using 6 inch round metal duct. It does not include a recirculating option.
What duct size does it need?
6 inch round metal duct, top exhaust. Victory recommends rigid duct, no reducers, and stepping up to 8 inch for long runs. The straight-run maximum is 50 feet, minus 9 feet for each 90 degree elbow and 5 feet for each 45.
How high above the cooktop should it go?
Between 24 and 30 inches from the cooktop to the bottom of the hood, per the manual. Check your range maker's clearance too.
Will it fit my ceiling?
The included two-piece chimney fits 8 to 9 foot ceilings. Victory sells chimney extensions for 10 and 12 foot ceilings.
How do I power it?
It comes with a cord and plug. You need a 120V outlet on a separate 15 amp circuit, placed inside the chimney area so it is hidden.
What is the warranty?
Victory covers the motor for life and parts for 5 years for the original purchaser. Lights and filters are consumables and are not covered.
