VICTORY Horizon Flush Ceiling Mount Range Hood, 900 CFM (HORIZON)
List price $3,199.00Marked down to $2,303.28You save $895.72
- Free shipping to the lower 48 states
- Ships direct from Victory Range Hoods
- Authorized Victory dealer
- Ships to the lower 48 states only (no AK, HI or PR)
Questions before you order? Call (508) 419-4276
Overview

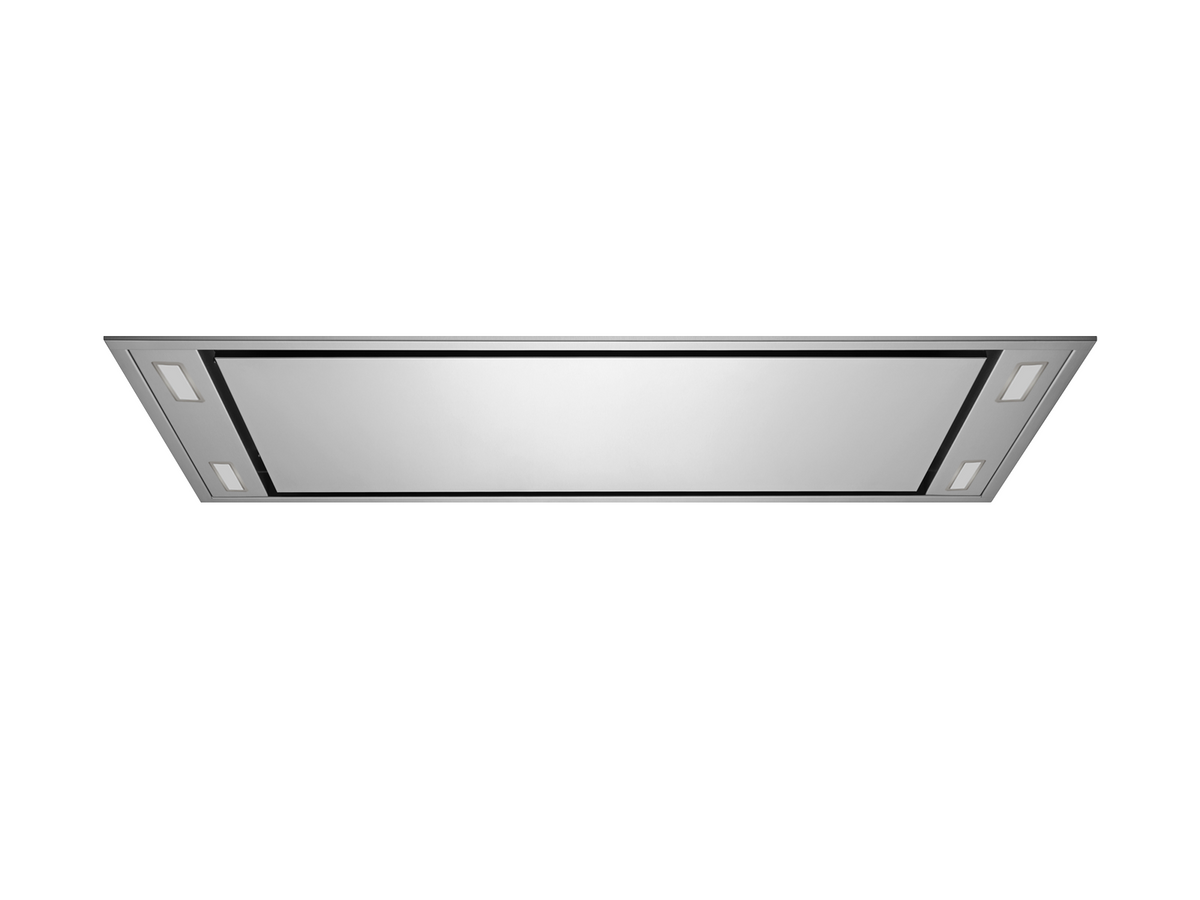

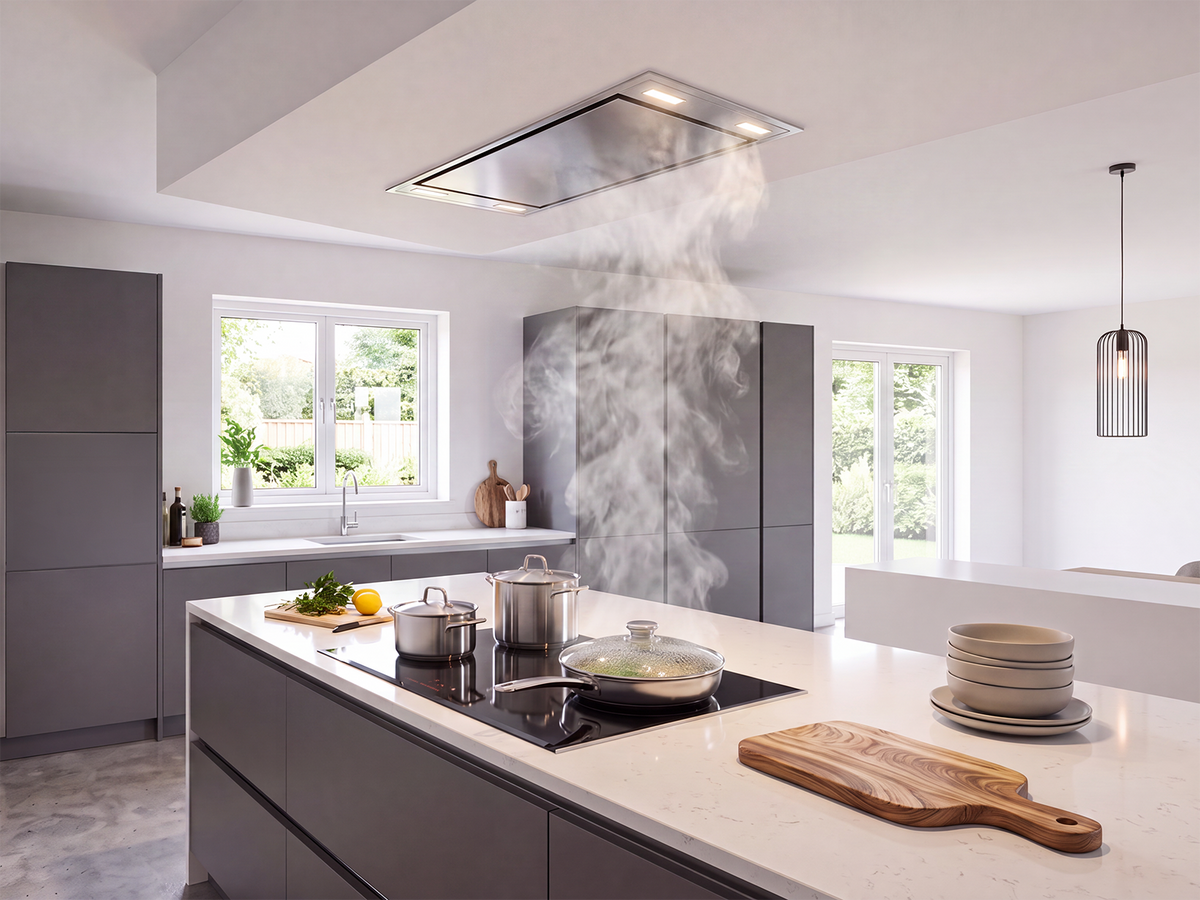

Victory Horizon Flush Ceiling Mount Range Hood
The Victory Horizon is a flush ceiling hood with two blowers and up to 900 CFM, for kitchens that cook hot and heavy. It sits up in the ceiling between joists 16" on center, so nothing hangs down to block the view. A wired glass wall switch runs the 4-speed fan and dims the lights.

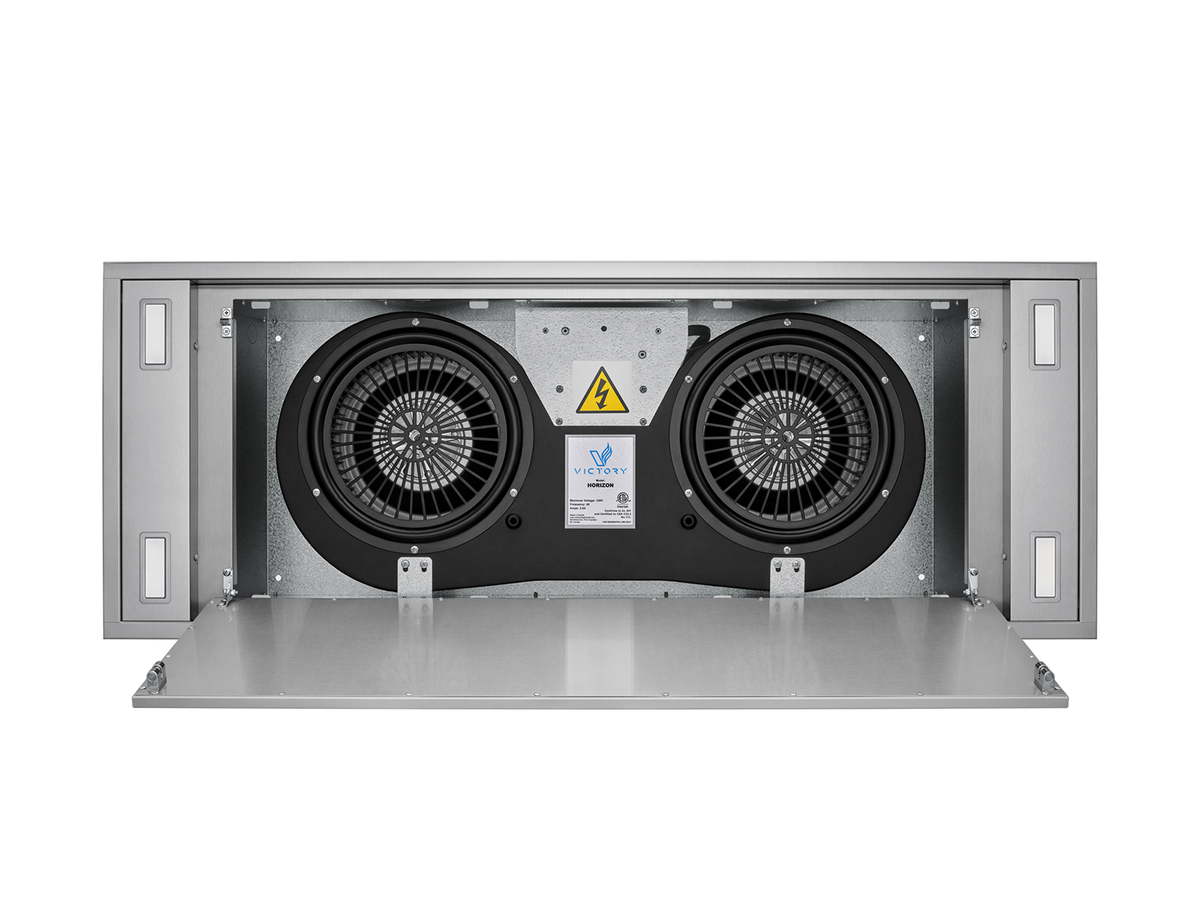

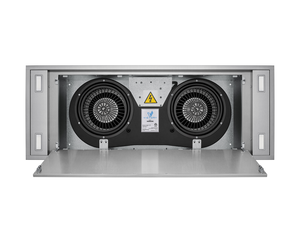

Two blowers, 900 CFM
Dual motors move up to 900 CFM on high, with three lower speeds for everyday cooking.
Flush with the ceiling

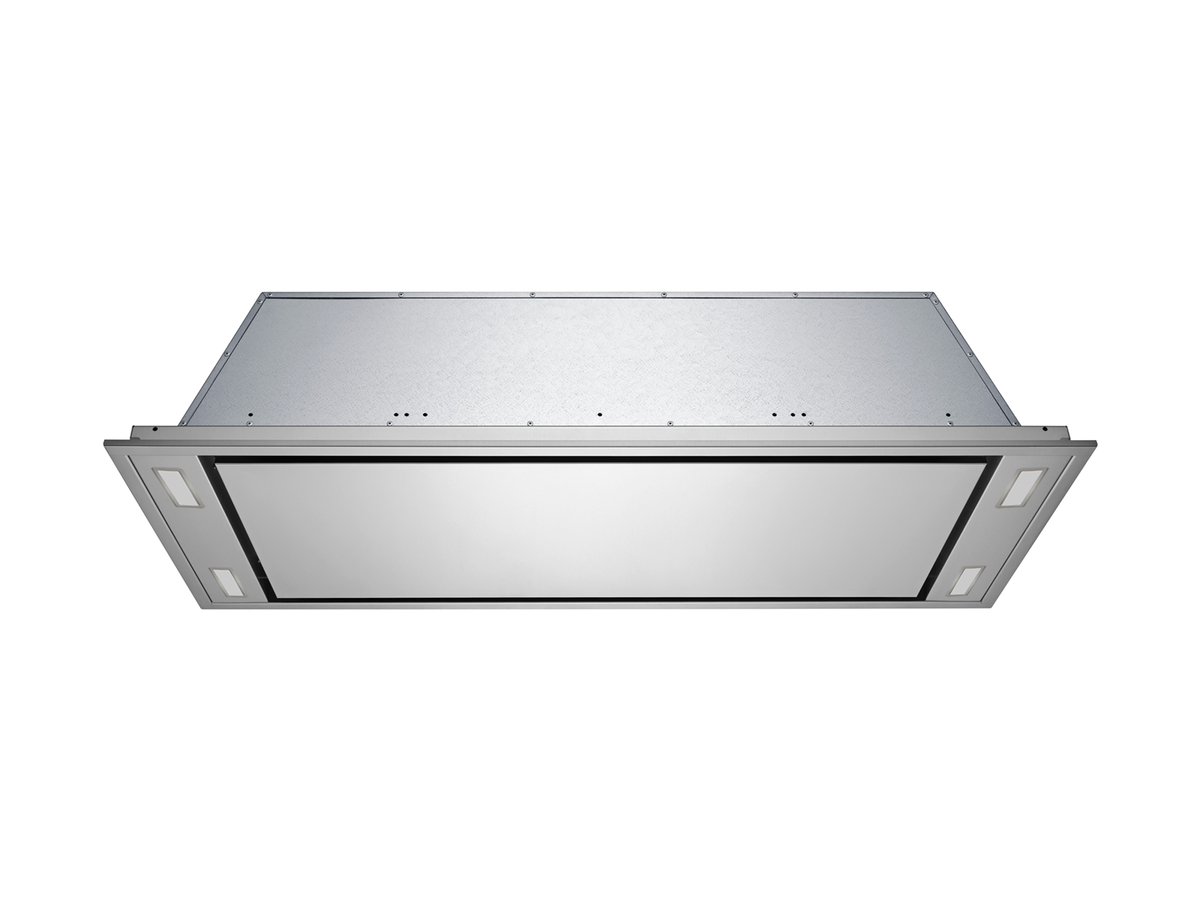

The Horizon recesses between standard joists 16" on center, so the view across your kitchen stays open.
Controls on the wall

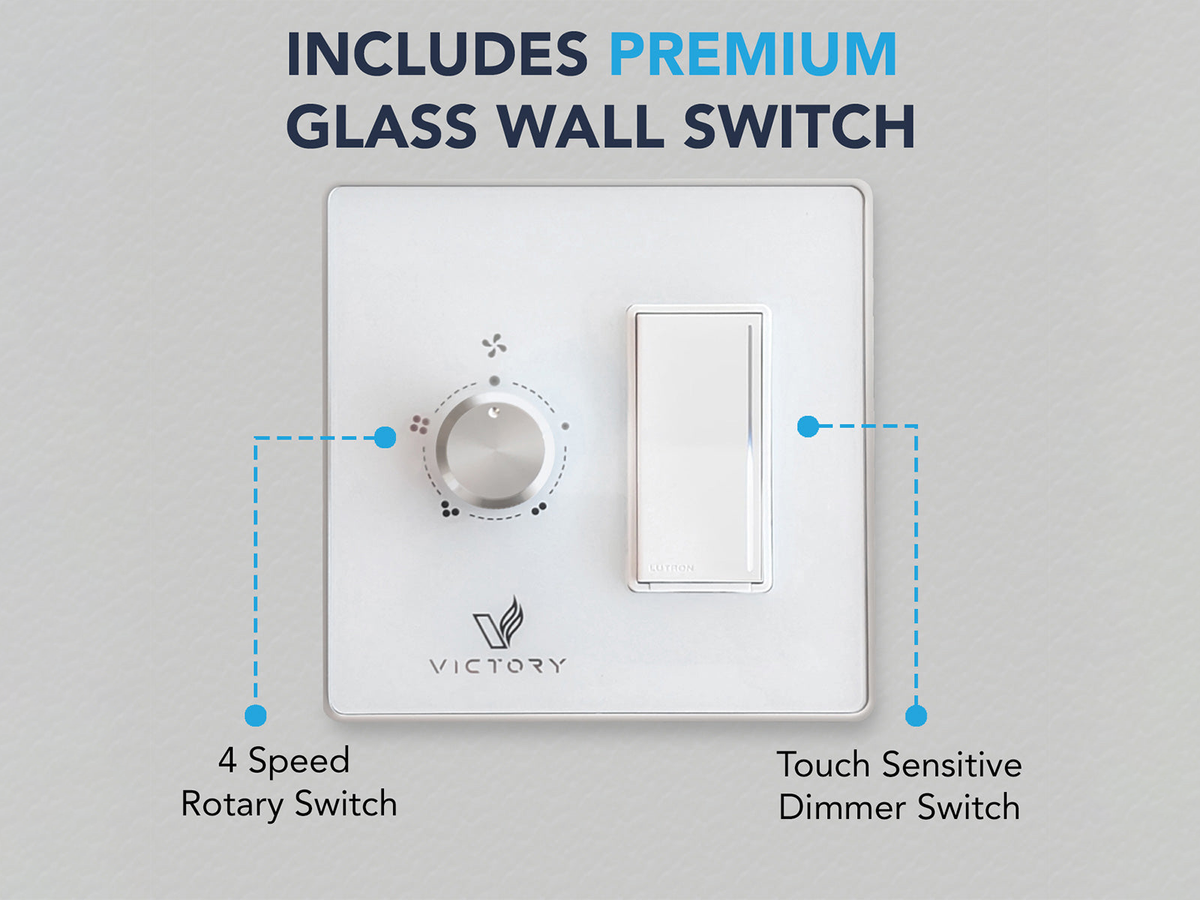

The included glass wall switch has a 4-speed fan dial and a touch dimmer for the lights, so you never reach for the ceiling.
At a glance
- Mount
- Ceiling
- Airflow
- 900 CFM max, 4 speeds
- Noise
- 1.0 to 6.0 sones
- Duct size
- 8" round, top
- Hood size
- 41" W x 15-1/2" D
- Material
- 304 stainless steel, 1 mm (19 gauge per B)

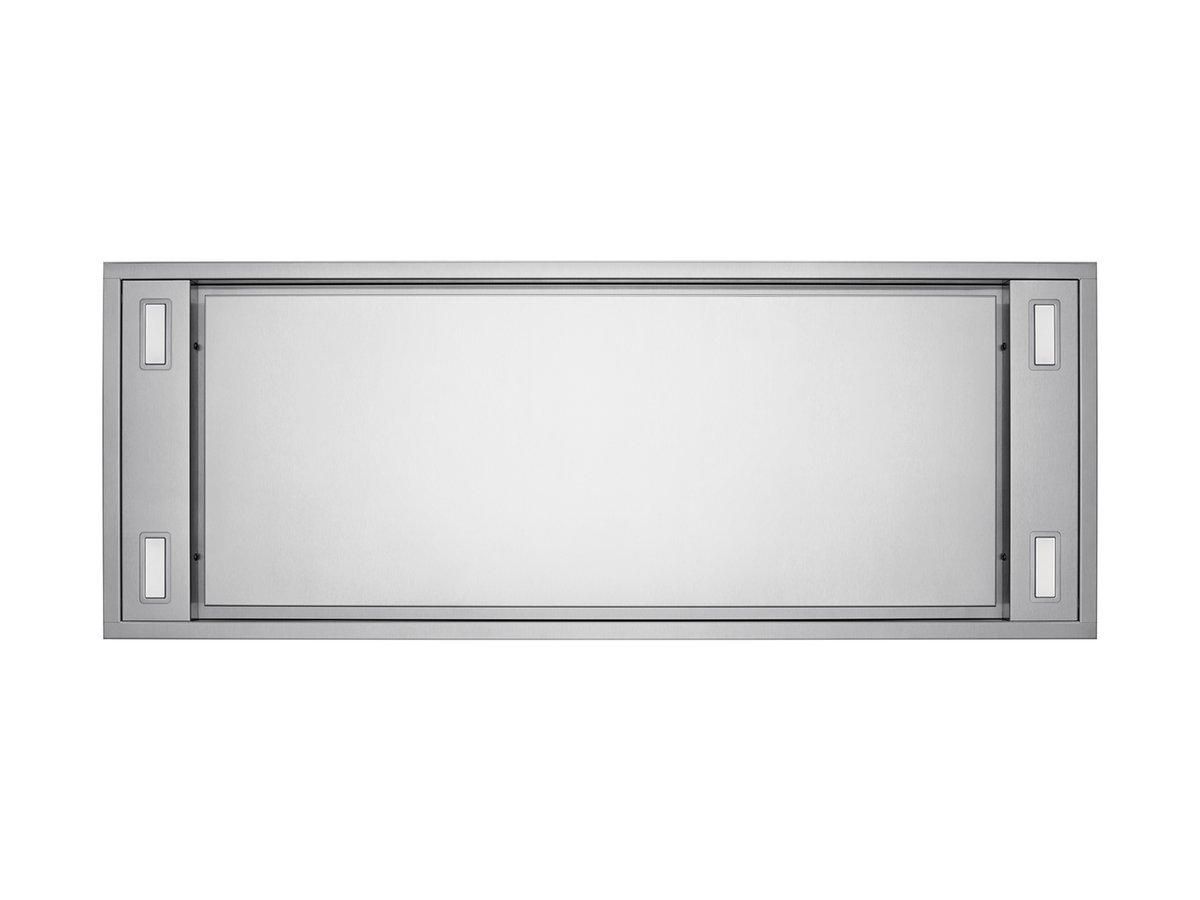

- Lights
- 4 dimmable LED lights, 5 W each, 3000K, 30,000 hour life

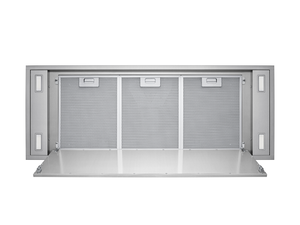

- Filters
- 3 aluminum mesh filters behind a stainless steel door; wash by hand with degreaser (not dishwasher safe); clean every 30 hours of use
- Power
- 120V 60Hz
- Weight
- 65.0 lb
- Warranty
- Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use; proof of purchase required. Excludes consumables (light bulbs, metal and charcoal filters).
- Model
- Horizon
Will it fit?
Check your kitchen
Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.
Our suggestions
Answer what you know. Your suggestions show up here.
Local code may differ. Your installer and building department have the final say.
Want a second look? Call (508) 419-4276 or email us.
Options and specs
Options and full specifications
Full specificationsFrom the maker's spec sheet and manual, for you or your installer
| Model | Horizon |
|---|---|
| Mount type | Ceiling |
| Body | 304 stainless steel, 1 mm (19 gauge per B) |
| Finish | Brushed stainless |

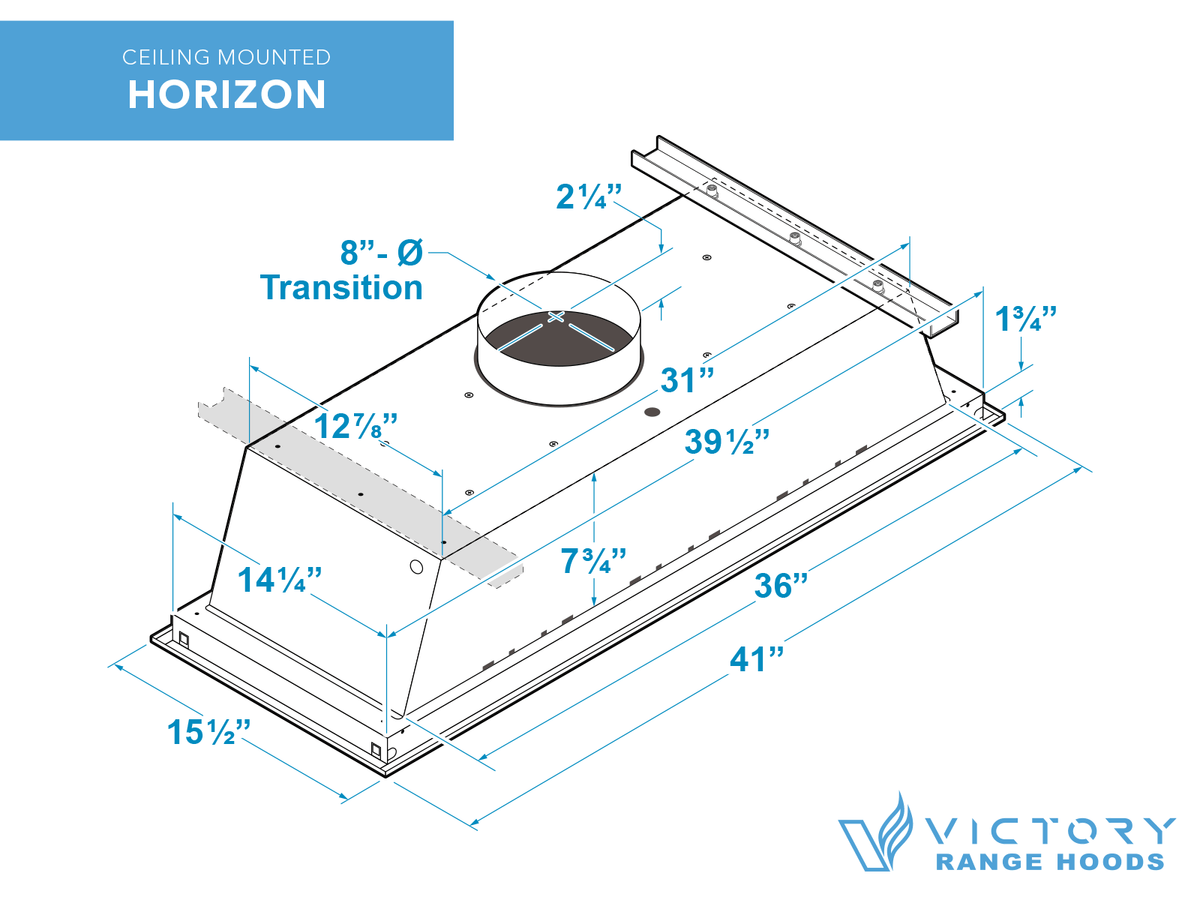

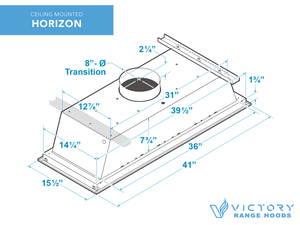

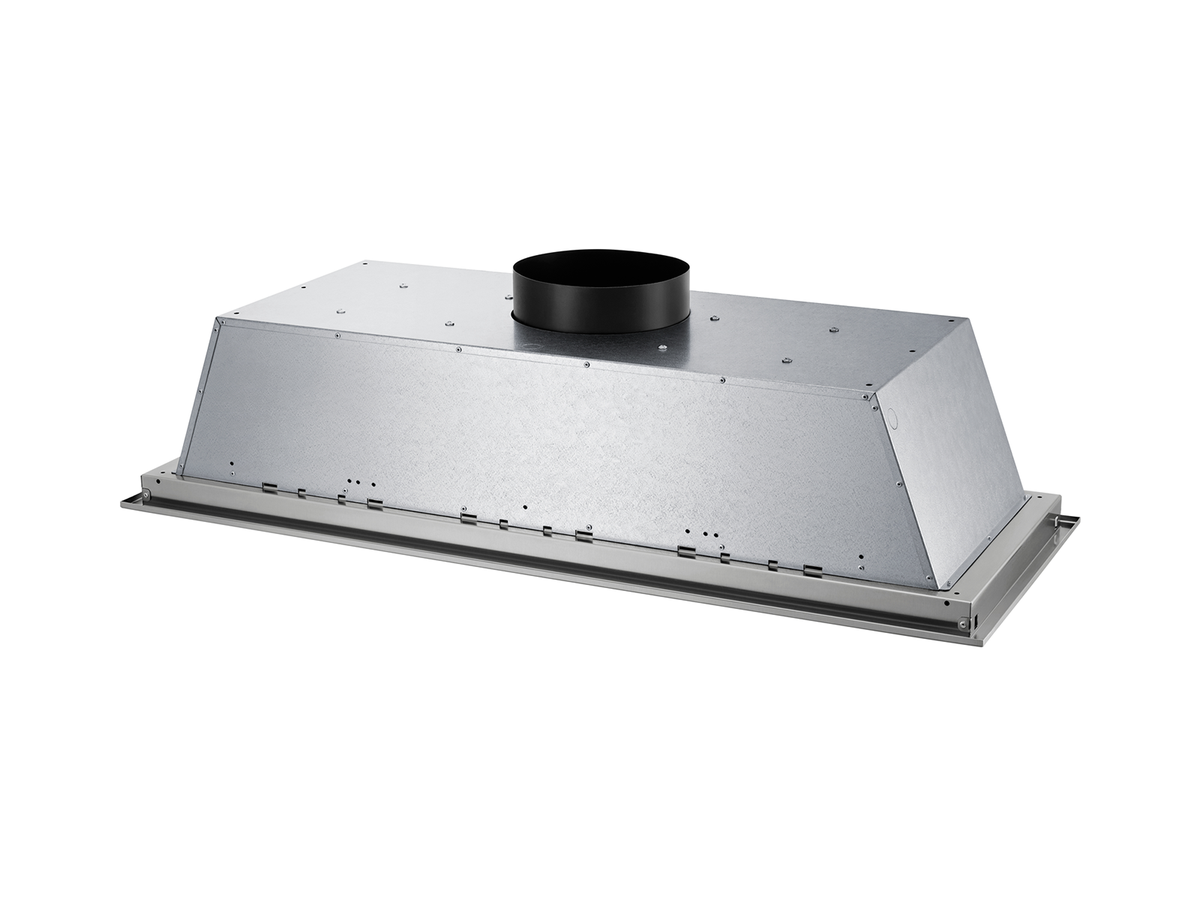

| Size | 41" W x 15-1/2" D x 9-1/2, plus a 2-1/4 tall 8 in duct collar on top" H |
| Blower | Internal, dual motors (2 x 120 W), metal blowers |
| Speeds and airflow | 4 speeds: 385 / 490 / 615 / 900 CFM |
| Noise | 1.0 / 2.4 / 4.0 / 6.0 sones |
| Exhaust | 8" round, top |
| Longest duct run | 50 ft equivalent |
| Height above cooktop | 46" to 60" |
| Power | 120V 60Hz, 260 W |
| Electrical | Hardwired. 120V, 60Hz on a separate 15 A circuit. The included wall switch connects to the hood with two 14-3 cables (6 conductors + ground), plus a 14-2 cable from the panel; cables not included. Wiring by a certified electrician. |
| Lights | 4 dimmable LED lights, 5 W each, 3000K, 30,000 hour life |
| Filters | 3 aluminum mesh filters behind a stainless steel door; wash by hand with degreaser (not dishwasher safe); clean every 30 hours of use |
| Controls | Included wall switch: 4-speed rotary fan dial and touch light dimmer, magnetic glass cover plate |
| Without outside venting | Must vent outside |
| Weight | 65.0 lb |
| Certifications | cETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113 |
| Warranty | Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use; proof of purchase required. Excludes consumables (light bulbs, metal and charcoal filters). |
| Assembled in | Canada |
What you get
What's in the box
- Range hoodWith two blowers, 4 LED lights and an 8" top duct collar
- Aluminum mesh filtersx3
- Main support bracketsx2
- M6 2" wood screwsx4
- M6 1-1/8" boltsx6
- Washersx6
- Rotary fan switch and knob4 speeds
- LED touch light bar switch with dimmer
- Dual electrical boxFor the wall switch
- Magnetic metal plate housing and magnetic glass cover plateWall switch faceplate
- Allen key (M3)
Installing it
How it goes in
We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.
- 1
Test it first
Victory says to test the fan and lights before the hood is recessed into the ceiling.
- 2
Plan the rough-in
Line the hood up with the joists and center it over the cooktop. The drywall cut-out goes between two joists, and someone needs access above the ceiling.
- 3
Attach the support brackets
Remove the filters and bolt the two main support brackets to the top of the hood with the M6 bolts and washers.
- 4
Lift and connect the duct
With at least two helpers, lift the hood into the ceiling and connect the 8" top outlet to the duct. Seal joints with aluminum tape.
- 5
Rest it on the joists
Turn the brackets 90 degrees so they sit on top of the joists, then bolt them to the hood and screw them into the joists.
- 6
Add corner screws
Remove the side light panels, drive wood screws through the corner holes into the joists, then reinstall the panels and filters.
We sell the hood, not the install
We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.
Instructions and drawings
Downloads
Save or print these for your installer before the work starts.
Questions
Frequently asked questions
Will it fit between my ceiling joists?
Victory designed the Horizon to fit between joists 16" on center. Two support brackets on top of the hood rest across the joists and carry its weight. Your installer needs access to the space above the ceiling to connect the duct, and the joists and cooktop must line up the same way; if they don't, the hood may need to drop into a framed box.
What size duct does it need?
8" round metal duct at minimum, out the top only. Rigid duct works best. The run can be up to 50 feet of straight duct, minus 9 feet for each 90° elbow, 5 feet for each 45° elbow, and 7 feet each for a round-to-rectangle piece and the wall or roof cap. For a long run, Victory says to step up to 10". No reducers and no plenum boxes.
How loud is it?
Victory's manual rates it at 1.0, 2.4, 4.0 and 6.0 sones across its 4 speeds. One sone is roughly the sound of a refrigerator.
How high above the cooktop should it be?
Victory recommends 48" between the cooktop and the bottom of the hood, and the manual allows 46" to 60". The hood works best at no more than about 8 feet from the floor.
Can it be used without venting outside?
No. Victory's manual says the Horizon must be ducted to the outside, through a wall or the roof, never into an attic, wall, crawl space or garage.
How is it wired?
It is hardwired. It needs a 120V, 60Hz supply on its own 15 A circuit. The wall switch connects to the hood with two 14-3 cables, plus a 14-2 cable from the panel; the cable is not included. Victory says a certified electrician should do the wiring.
How do I clean the filters?

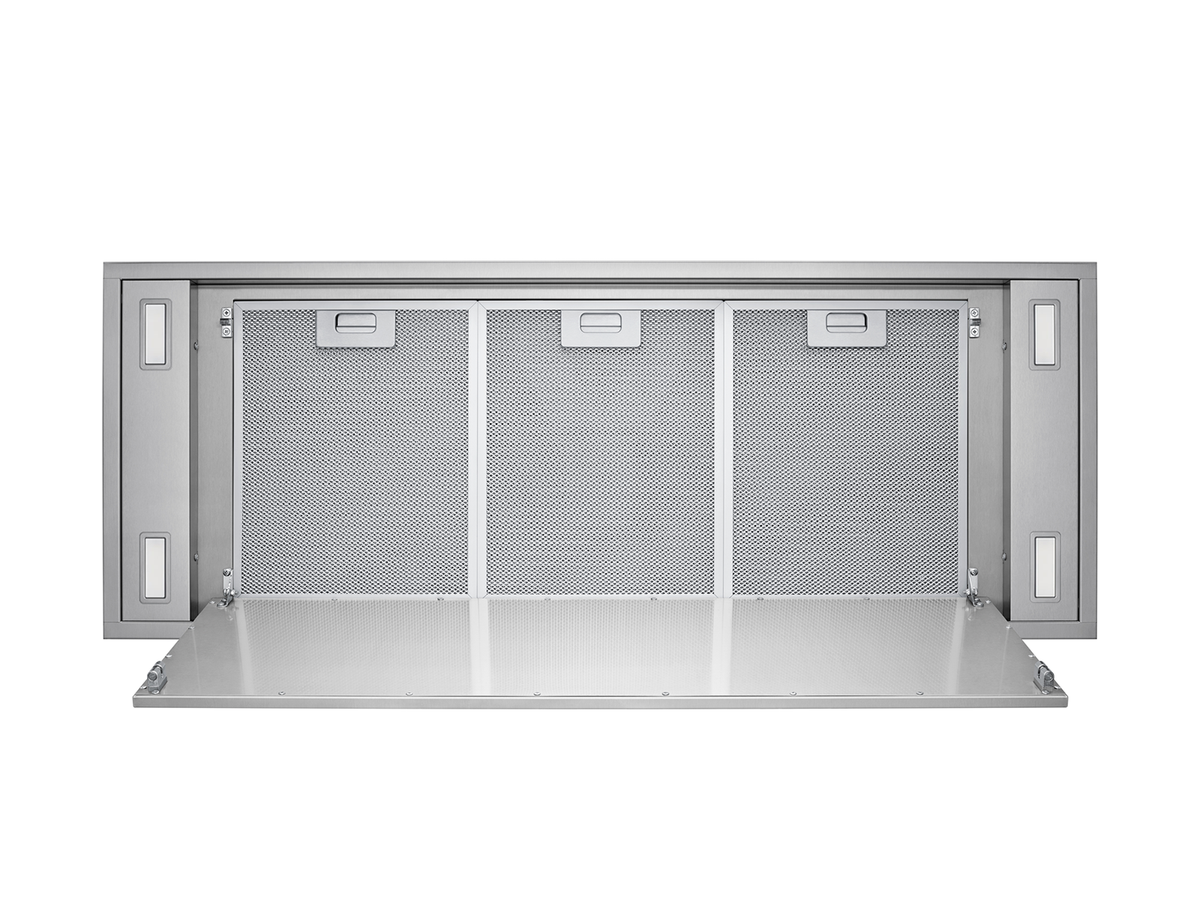

Open the doors to reach the three aluminum mesh filters. Victory says to clean them after every 30 hours of use. They are not dishwasher safe: spray them with a degreaser, let them soak if they are very dirty, then dry and reinstall.
What does the warranty cover?
Victory gives a lifetime motor warranty and a 5-year parts warranty to the original buyer for home use. Keep your receipt. Light bulbs and filters are consumables and are not covered, and damage from improper installation is not covered.
Parts and add-ons
Made for the same hood
-
VICTORY Replacement Door Panel$299.00$215.28 -

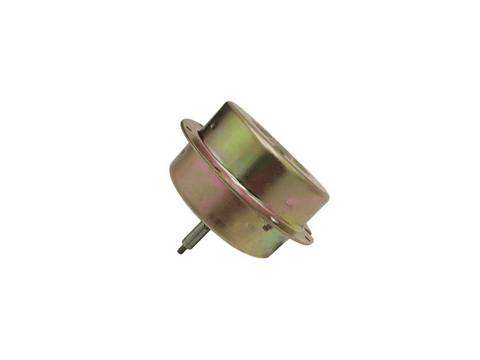

VICTORY Internal Motor for Double Blowers$200.00$144.00 -

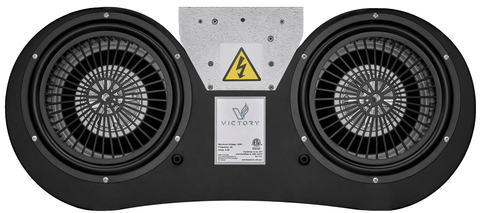

VICTORY Replacement Double Blower 900 CFM$499.00$359.28 -
