VICTORY Hurricane 30 Inch Under Cabinet Range Hood, 1000 CFM (Hurricane-30)

List price $2,199.00Marked down to $1,583.28You save $615.72

Airflow
1000 CFM
Noise
1.2 / 6.6 sones
Hood size
29-3/4" W x 24" D
Duct
8" round
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

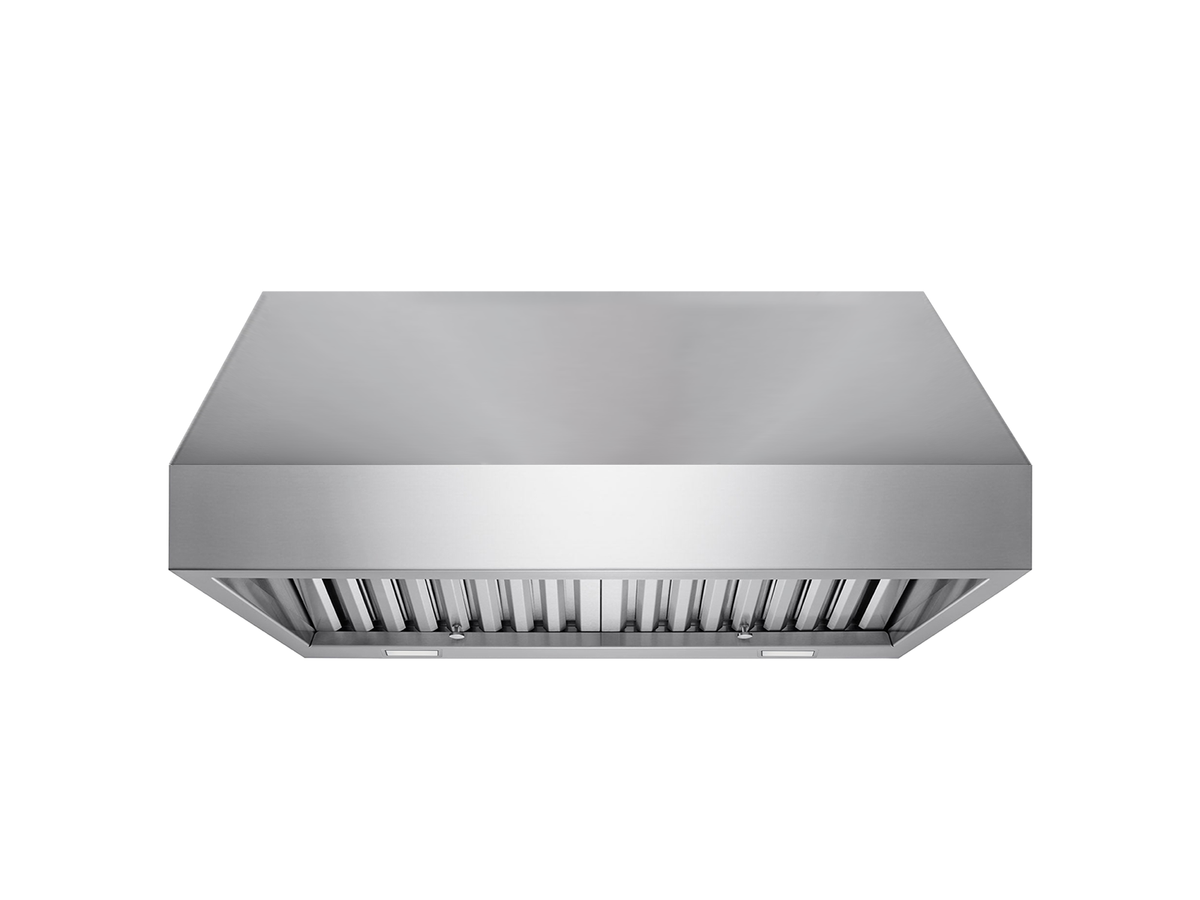

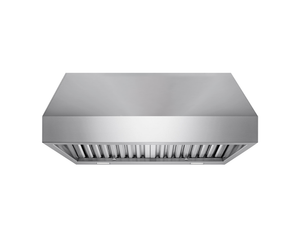

Victory Hurricane 30 Inch Under Cabinet Range Hood

The Victory Hurricane 30 inch is a heavy, pro-style under cabinet range hood for people who cook hot and often. It is 24 inches deep, so it reaches out over the front burners where a lot of smoke escapes from shallower hoods. Simple rotary knobs run the fan and lights, with no touch screen to fail.

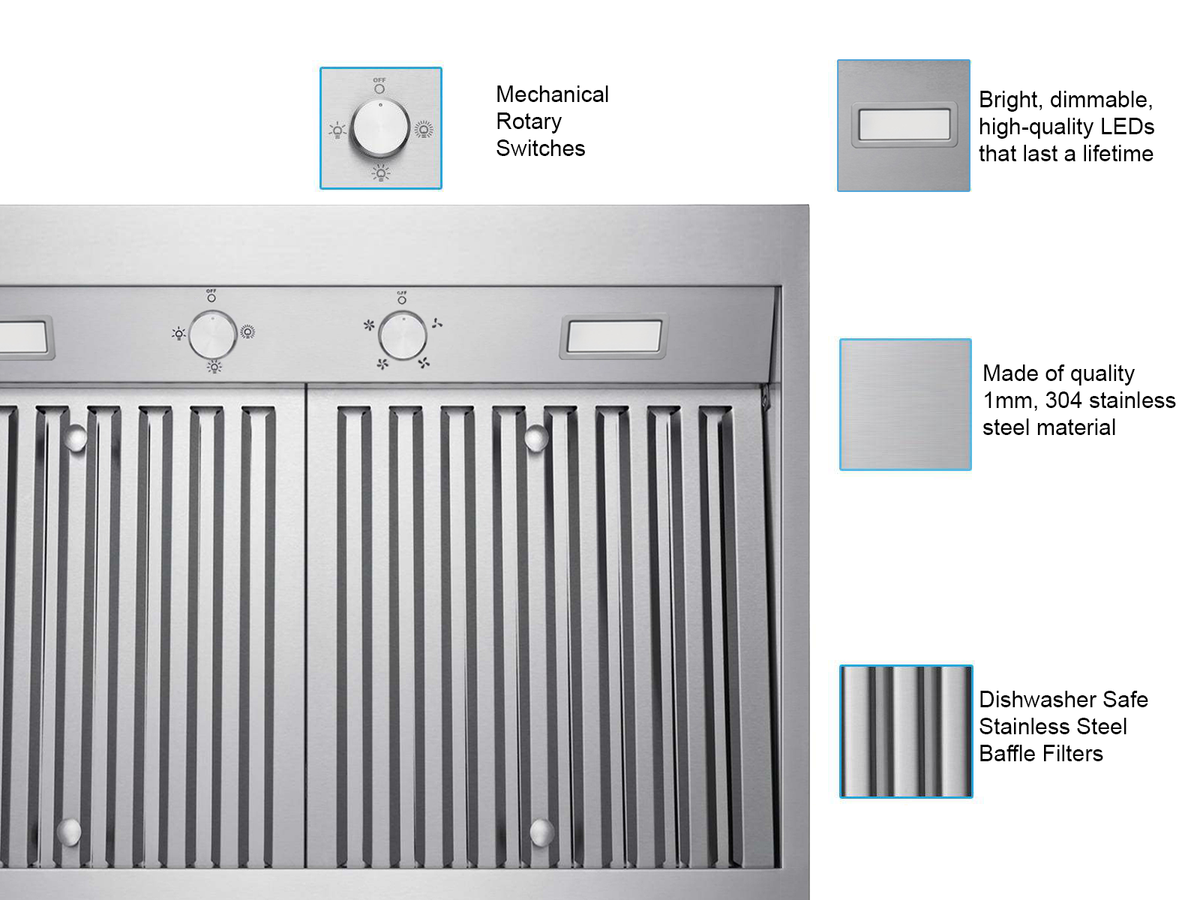

  1. Deep 24 inch canopy

    Reaches out over the front burners, where shallow hoods let smoke slip past.

  2. Knobs that just work

    Mechanical rotary switches for fan and lights. No touch panel to fail in heat and steam.

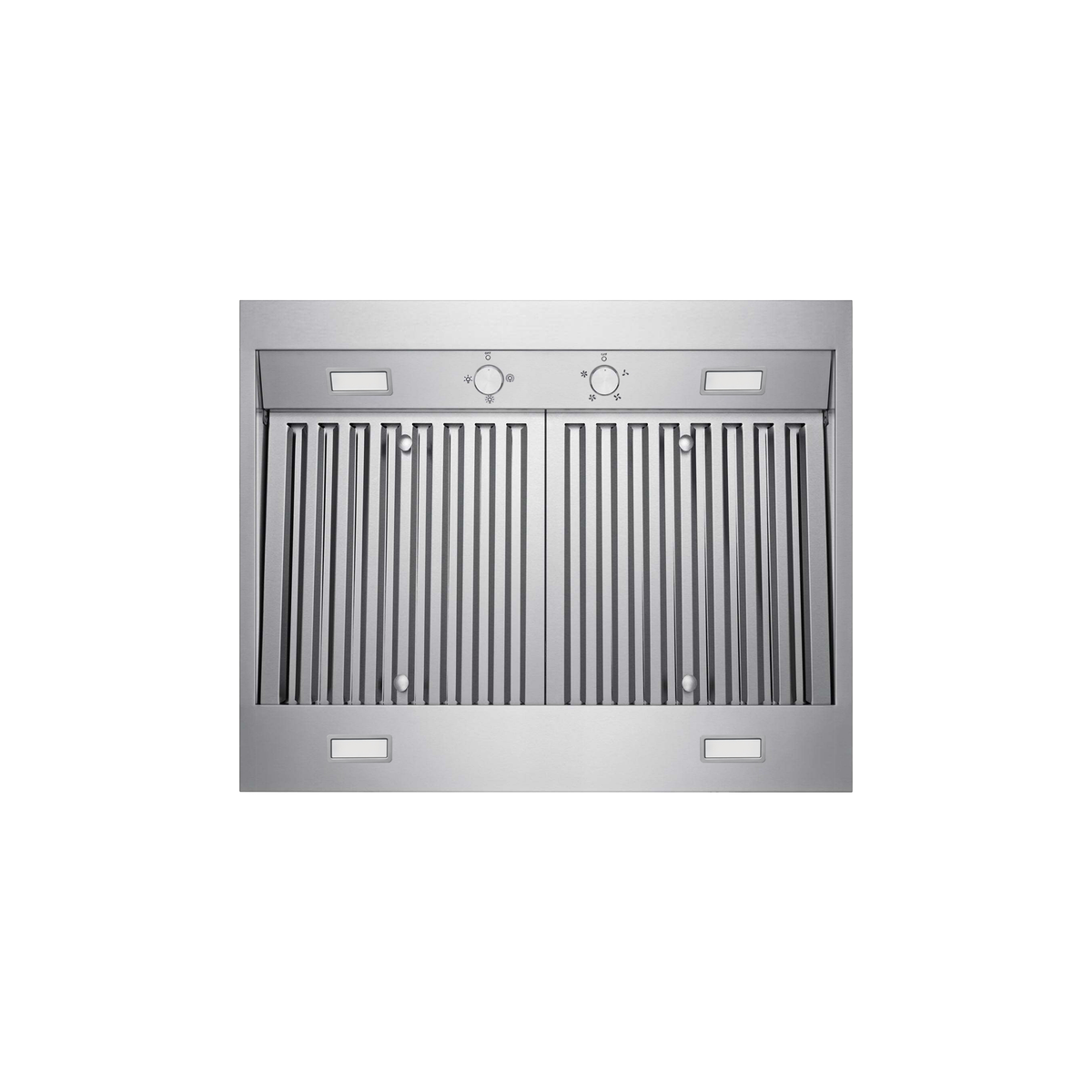

  3. Easy grease cleanup

    Stainless baffle filters and a grease tunnel lift out, and the filters go in the dishwasher.

At a glance

Mount
Under cabinet
Airflow
1000 CFM max, 4 speeds
Noise
1.2 to 6.6 sones
Duct size
8" round, top
Hood size
29-3/4" W x 24" D
Material
Stainless steel, 19 gauge (P also says 304 grade)
Lights
4 x 2.5W dimmable LED (P: 3000K)
Filters
2 stainless steel baffle filters plus grease tunnel; dishwasher safe
Power
120V 60Hz
Weight
61.7 lb
Warranty
Lifetime motor warranty and 5-year parts warranty, original purchaser, US and Canada; consumables (bulbs, filters) excluded
Model
Hurricane

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelHurricane
    Mount typeUnder cabinet
    BodyStainless steel, 19 gauge (P also says 304 grade)
    FinishBrushed stainless
    Size29-3/4" W x 24" D x 18" H

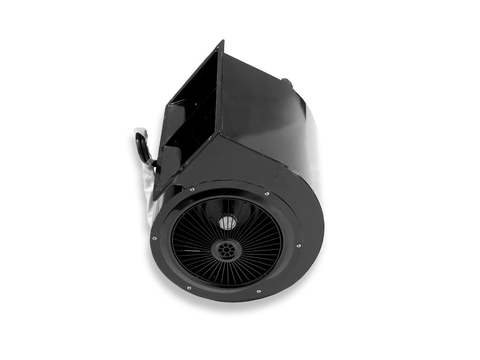

    BlowerInternal, double chamber centrifugal, metal blades
    Airflow1000 CFM max
    Noise1.2 / 6.6 sones
    Exhaust8" round, top
    Longest duct run50 ft equivalent
    Height above cooktop28" to 36"
    Power120V 60Hz, 310 W
    ElectricalComes with a wire and plug. Needs a 120V, 60Hz, fused supply on a separate 15 amp circuit, properly grounded, done by a qualified electrician.
    Lights4 x 2.5W dimmable LED (P: 3000K)
    Filters2 stainless steel baffle filters plus grease tunnel; dishwasher safe
    ControlsTwo mechanical rotary knobs: 4-speed fan (off + speeds 1-4) and dimmable light
    Without outside ventingMust vent outside
    Weight61.7 lb
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    WarrantyLifetime motor warranty and 5-year parts warranty, original purchaser, US and Canada; consumables (bulbs, filters) excluded
    Assembled inCanada

    What you get

    What's in the box

    • Hurricane range hood30 in
    • 8 in round duct transitionStandard (M p9)
    • 10 in round duct transitionThe manual lists this as a requested option; Victory's product page says both transitions are included. Confirm with order.
    • Stainless steel baffle filters (x2)
    • Grease tunnel
    • Mounting brackets (x2)For wall mounting; not needed when screwing directly under a cabinet
    • Concrete anchors (x4)
    • M5 big head screwsx10 for the 8 in transition, x7 for the 10 in
    • M4 countersink screws (x8)For the mounting brackets
    • M4 screws with round knob handles (x4)Filter handles
    • Foam rubber gasketSeals the transition to the hood outlet

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test it first

      Unbox, check for damage, plug it in and run the fan and lights before mounting. Remove the filters and grease tunnel until the hood is up.

    2. 2

      Plan height and duct

      Set the hood 28 to 36 inches above the cooktop and plan an 8 inch (or 10 inch) metal duct route to the outside.

    3. 3

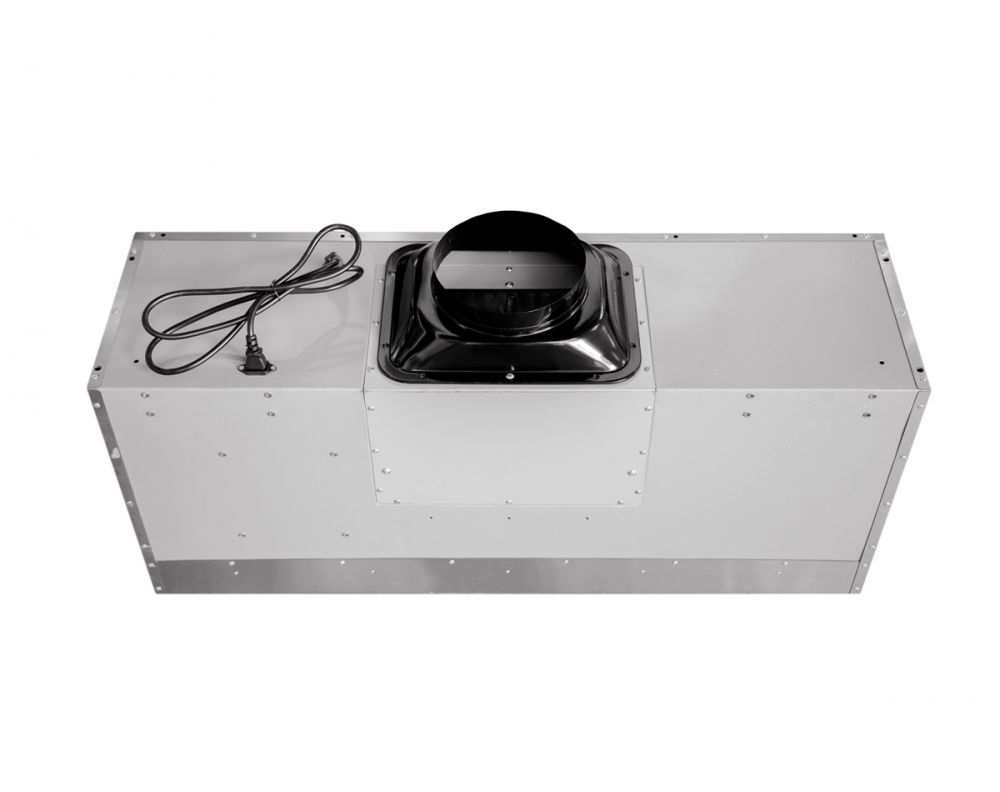

      Attach the transition

      Screw the round duct transition onto the top outlet with the supplied M5 screws.

    4. 4

      Cut the cabinet

      Cut openings in the cabinet bottom for the transition and the power cord, and drill pilot holes that line up with the hood's top mounting holes.

    5. 5

      Mount and connect

      With two people, lift the hood and screw it to the cabinet bottom and wall studs (wood screws not included). Connect the duct and seal every joint with aluminum foil tape.

    6. 6

      Finish

      Plug in, check the fan and lights, then slide in the grease tunnel and baffle filters.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Hurricane manualPDF · 2.6 MB Download

    Specs and drawings

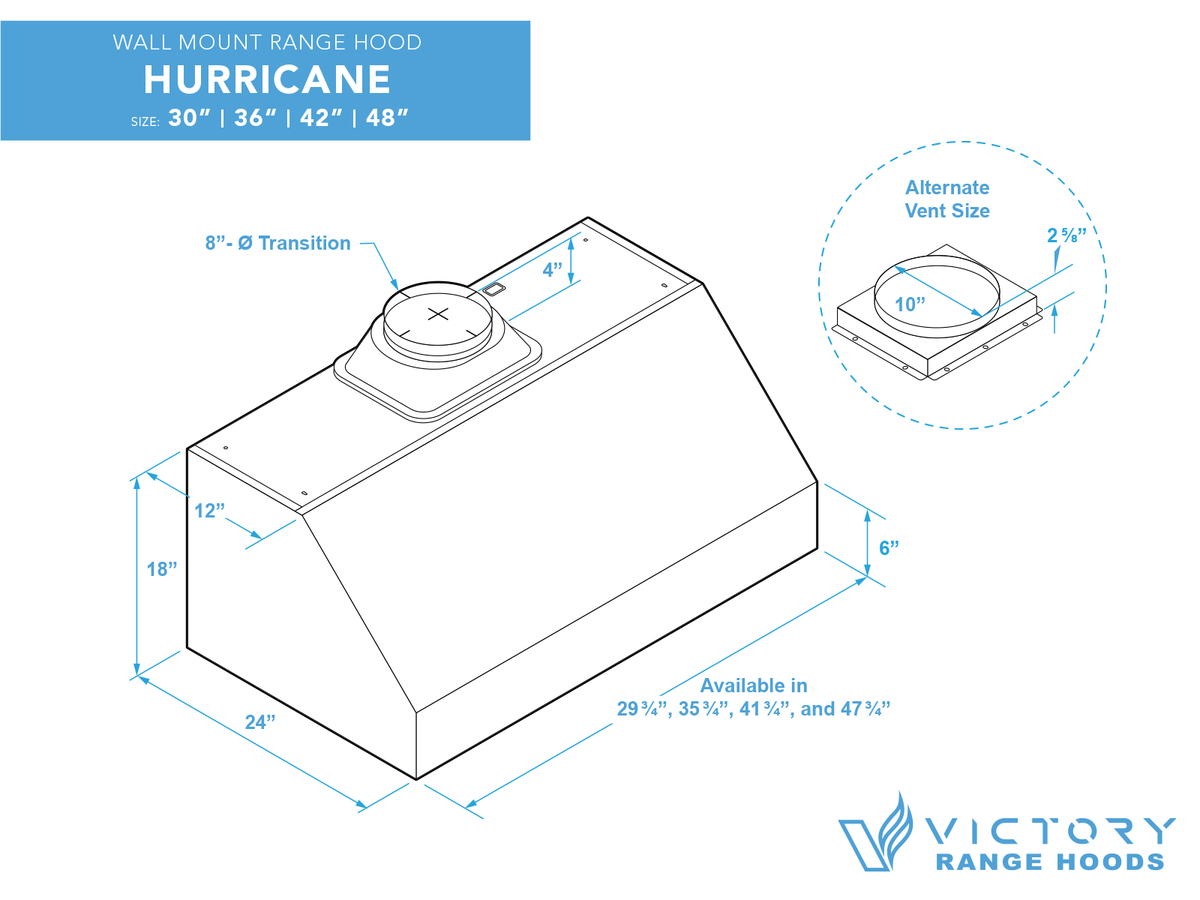

    • Victory Hurricane dimensionsPDF · 0.5 MBDownload

    Questions

    Frequently asked questions

    How high above the cooktop should the Hurricane go?

    Victory's manual says the bottom of the hood should be 28 to 36 inches above the cooktop. Also check your range maker's clearance rules.

    What size duct does it need?

    It needs 8 inch round metal duct at minimum, and Victory recommends 10 inch for long runs. Do not reduce to 4, 5 or 6 inch duct, which cuts suction and adds noise. The duct must vent outside.

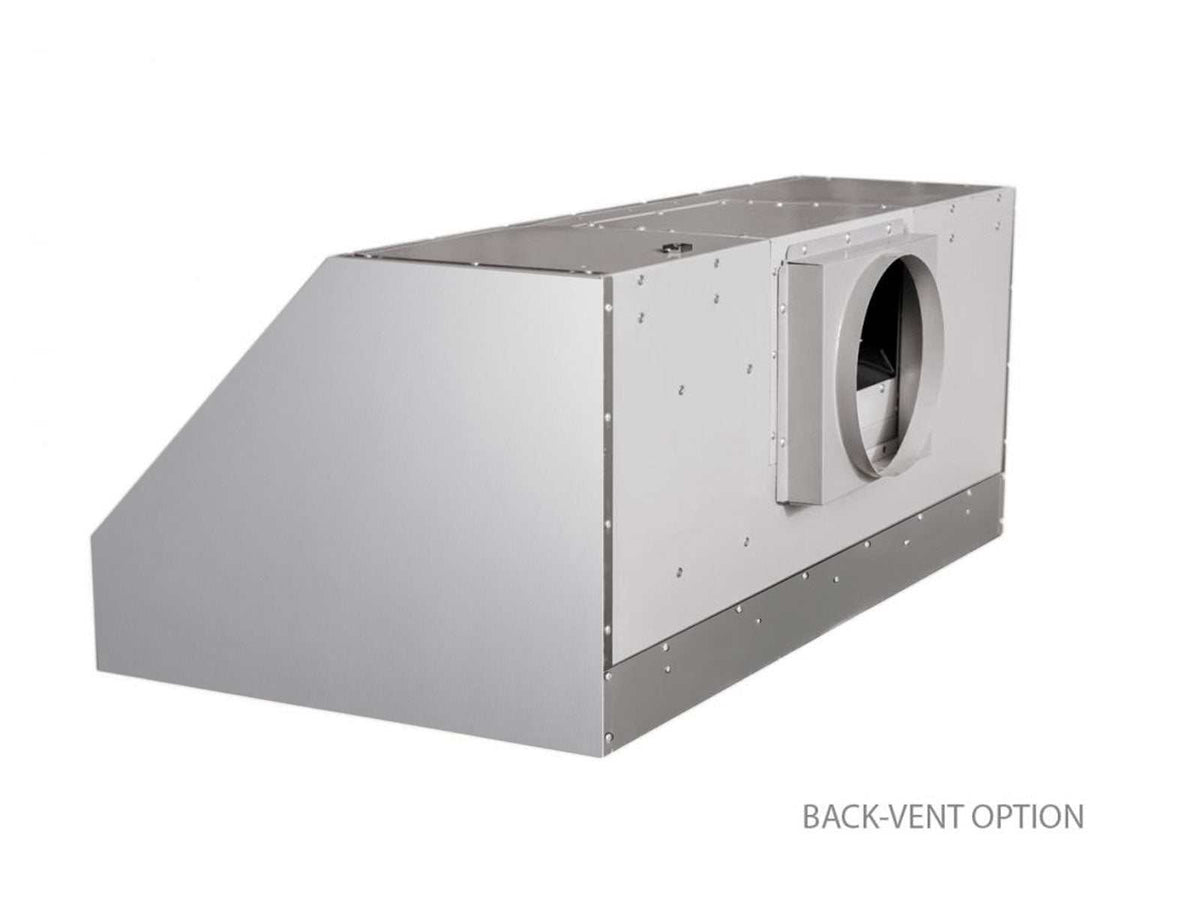

    Can it vent out the back?

    Rear venting is a factory option that must be ordered before the hood ships. Changing from top to back vent on site can be difficult. This listing is the standard top-vent hood.

    How do I clean the filters?

    The stainless baffle filters and grease tunnel lift out. The filters are dishwasher safe. Victory suggests cleaning them about every 30 hours of use.

    Does it plug in?

    Yes, it comes with a wire and plug. It needs a 120V outlet on its own 15 amp circuit, and an electrician should confirm the wiring and grounding.

    How much air does it move?

    Victory's manual rates the Hurricane at up to 1000 CFM. Victory's website lists 1200 CFM when the optional 10 inch duct is used. Duct size, length and elbows all affect real airflow.
