VICTORY Jupiter Ductless Island Range Hood, 600 CFM (JUPITER)

List price $1,299.00Marked down to $935.28You save $363.72

Airflow
200 / 400 / 600 CFM
Noise
1.0 / 3.5 / 5.5 sones
Hood size
13-3/4 diameter" W x 13-3/4 diameter" D
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

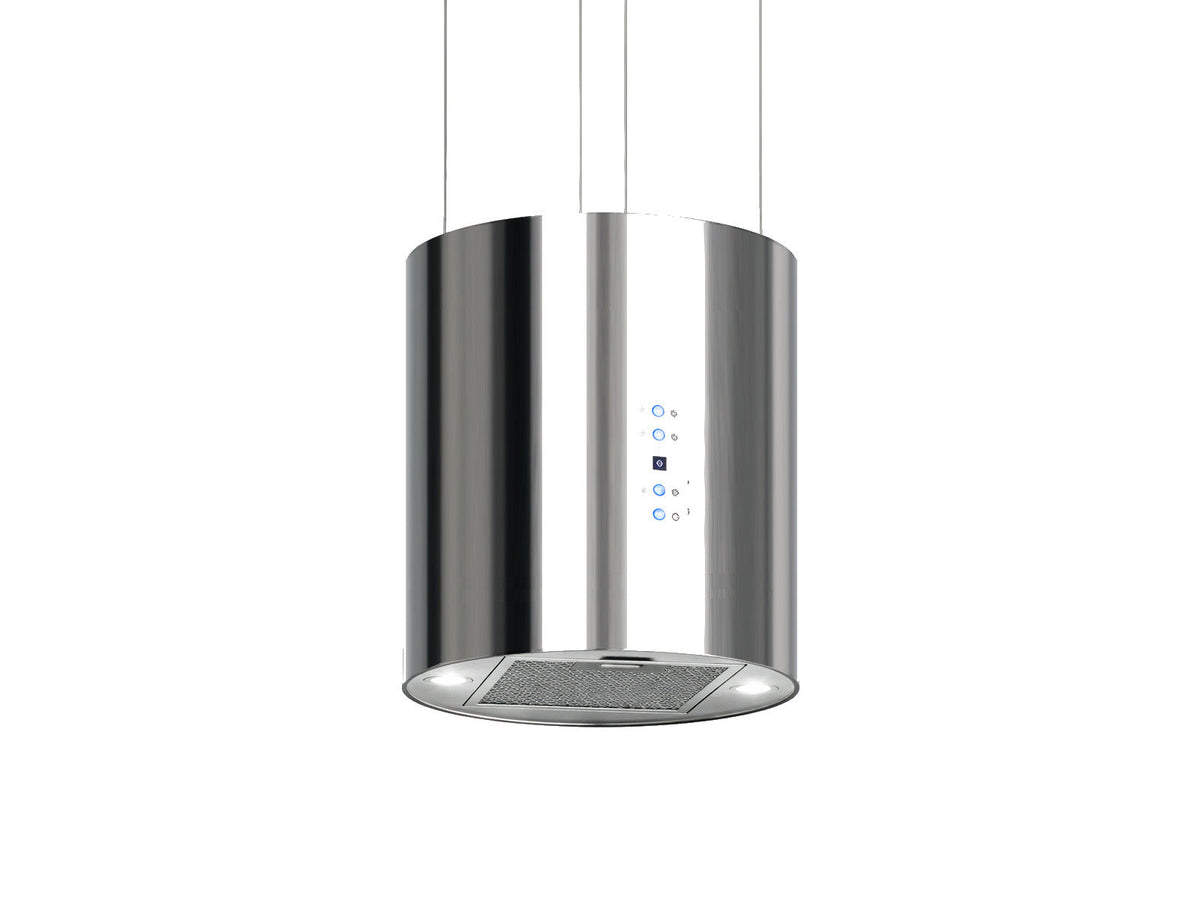

Victory Jupiter Ductless Island Range Hood

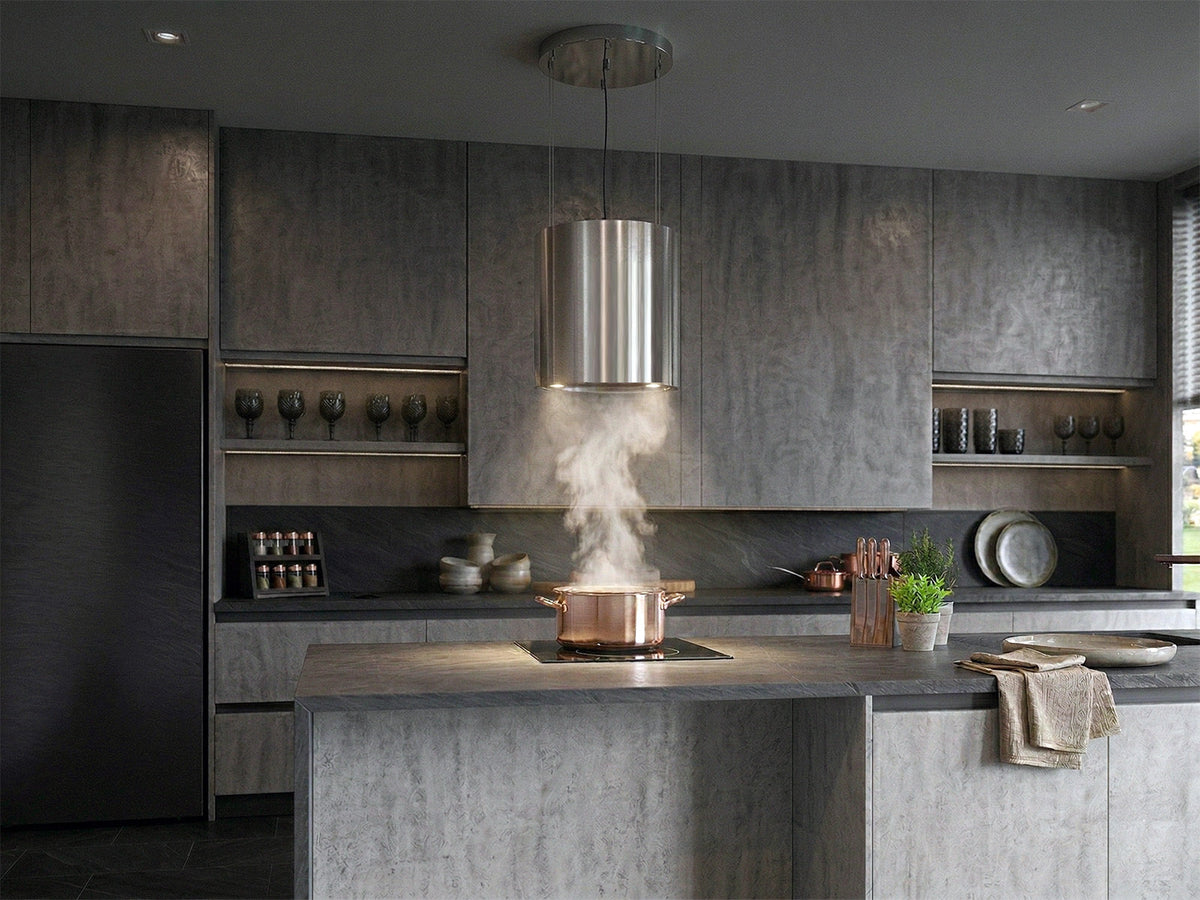

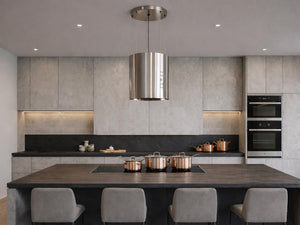

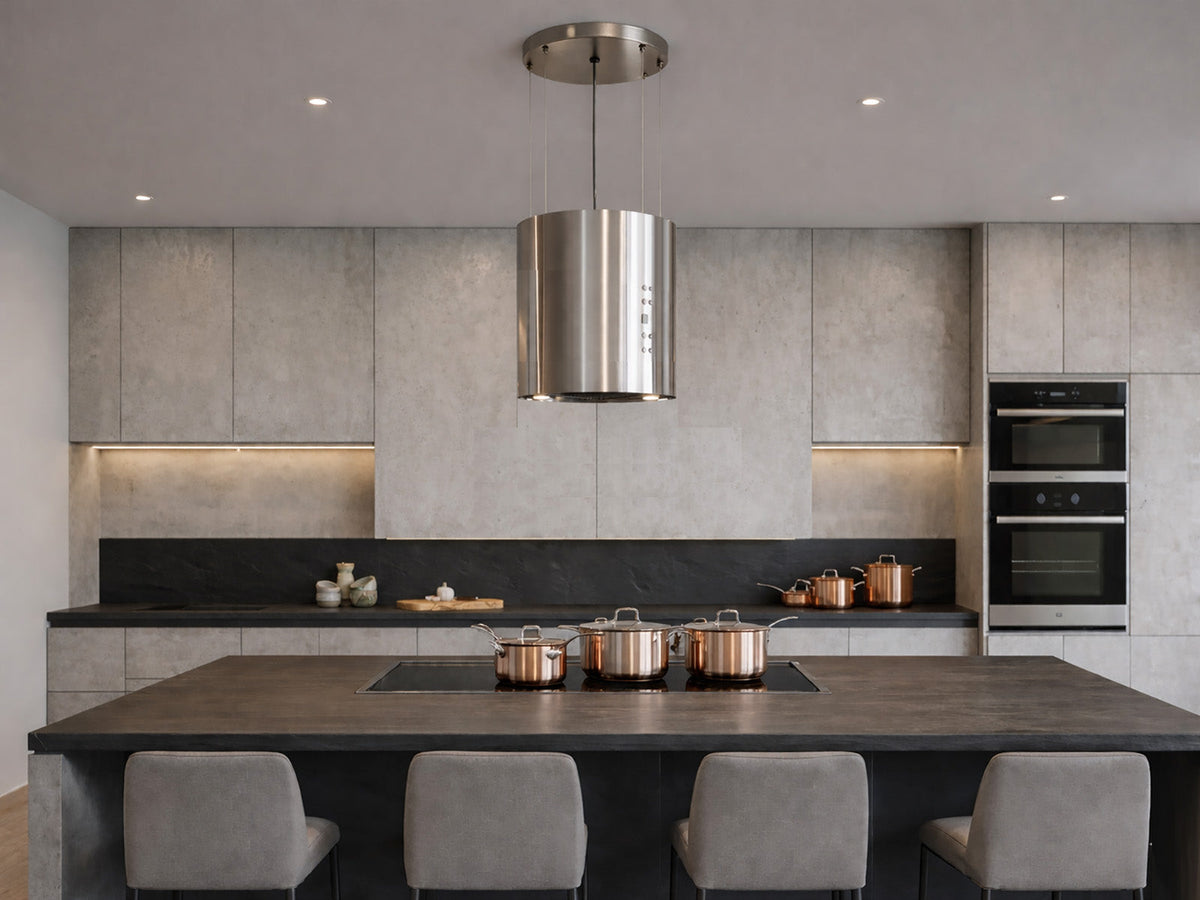

The Victory Jupiter is a compact stainless cylinder hood that hangs on slim cables over an island cooktop. It is ductless: it pulls cooking air through a grease filter and two charcoal filters, then returns the cleaned air to the kitchen. It suits homes where running a duct outside is not practical.

  1. No ductwork

    Charcoal filters clean the air and send it back into the room, so no duct to the outside is needed.

  2. Floats on cables

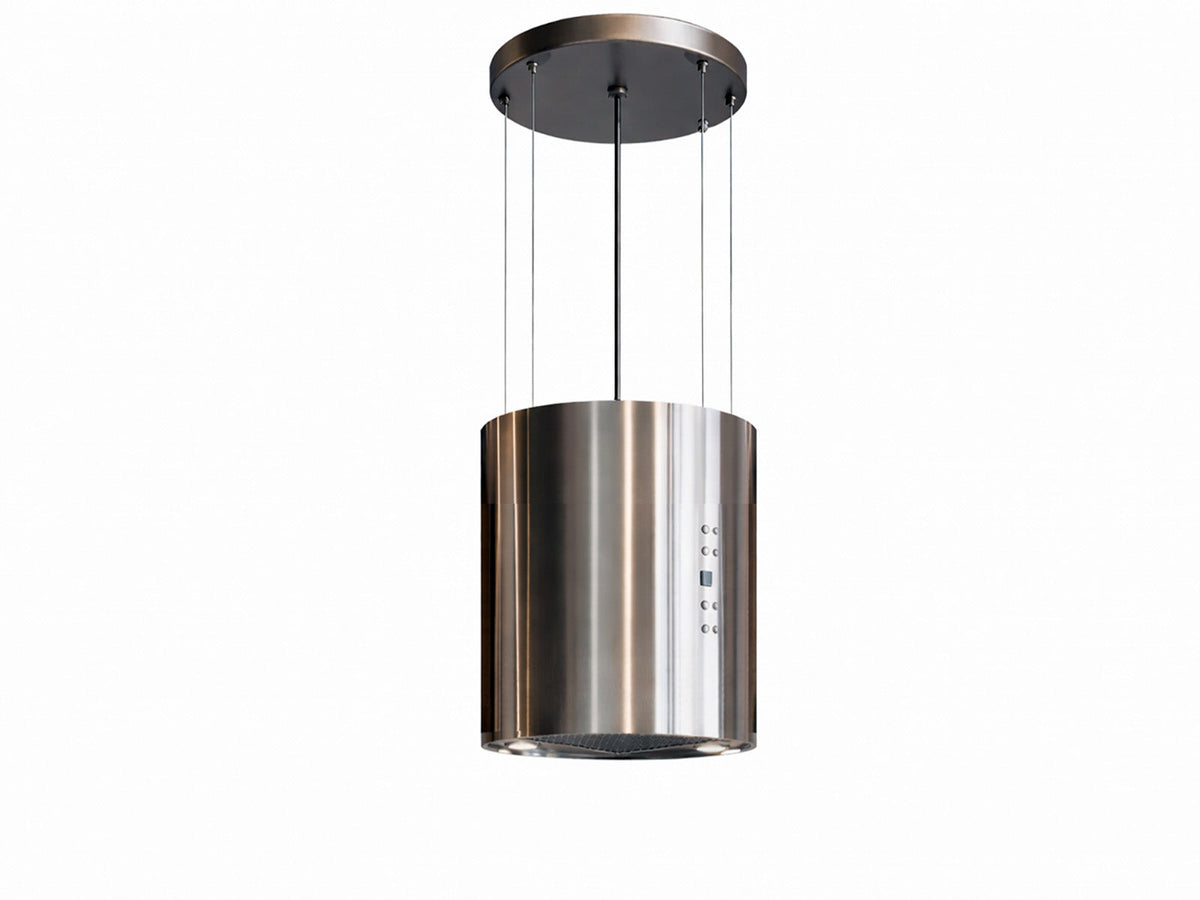

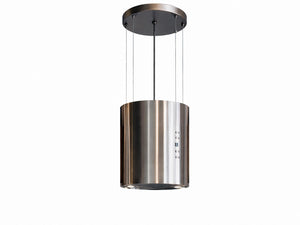

    Slim cables hang the 13-3/4 inch cylinder over the island and adjust for 8 to 10 foot ceilings.

  3. Remote and timer

    Use the included remote or the panel on the hood. A 9-minute timer turns it off for you.

At a glance

Mount
Island
Airflow
600 CFM max, 3 speeds
Noise
1.0 to 5.5 sones
Hood size
13-3/4 diameter" W x 13-3/4 diameter" D
Material
Seamless stainless steel
Lights

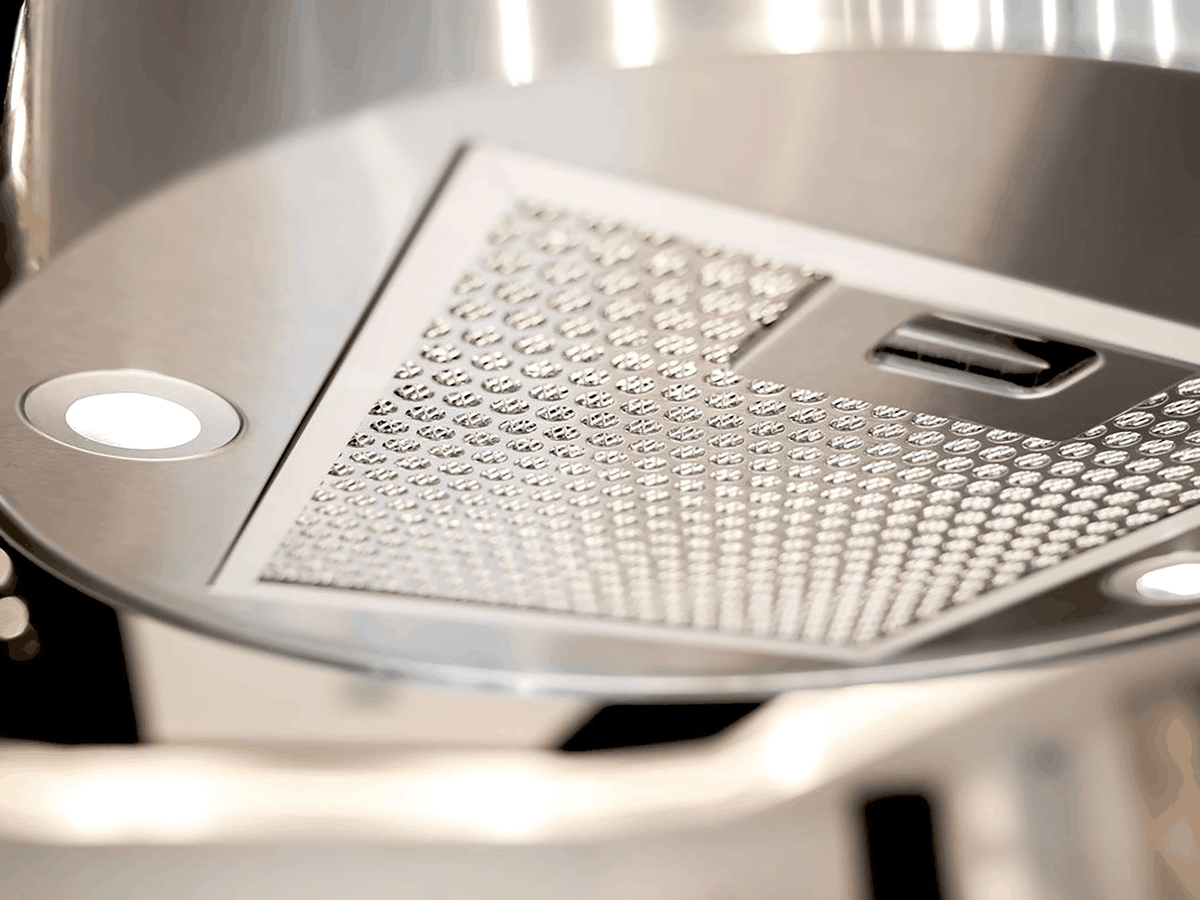

2 LED lights, 1 W, 12 V, not dimmable
Filters

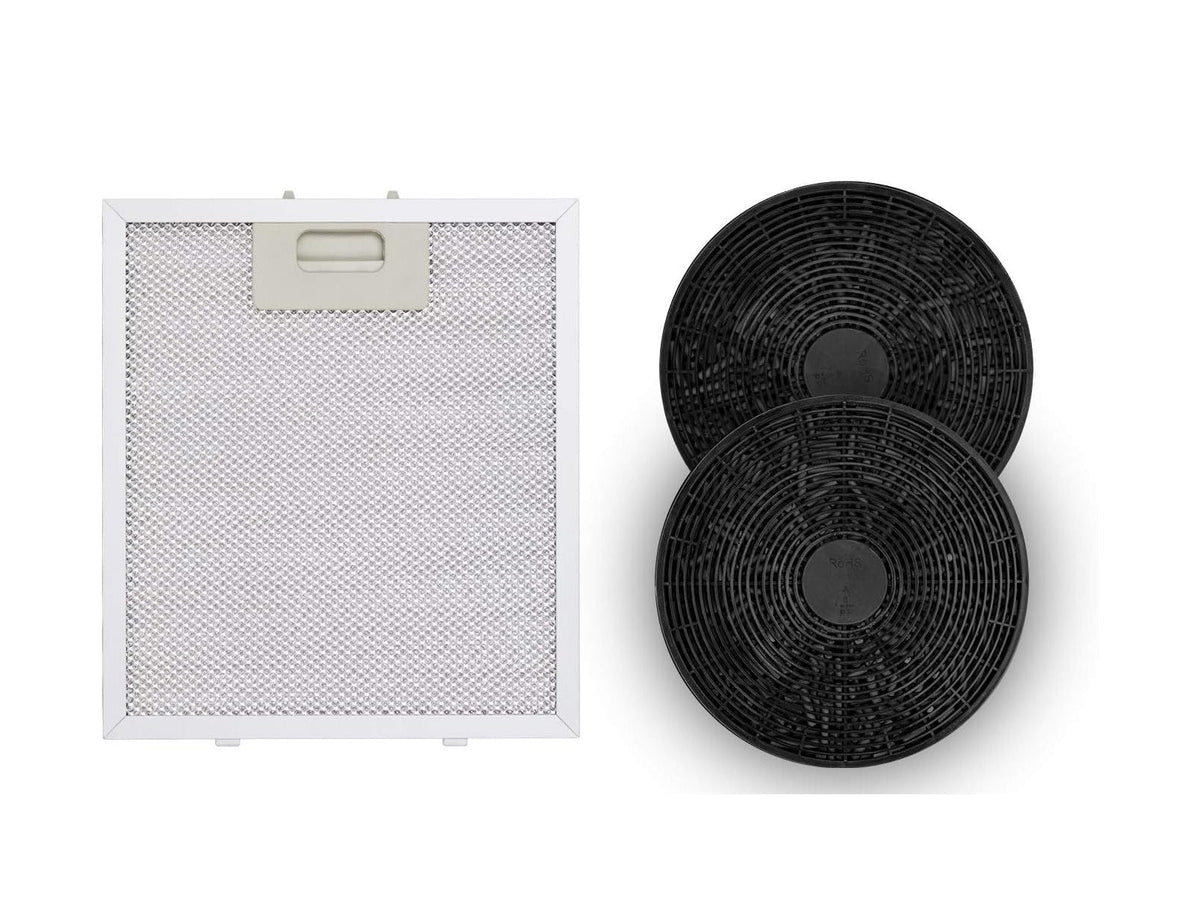

1 aluminum mesh grease filter (not dishwasher safe) + 2 charcoal filters (included)
Power
120V 60Hz, 4.0 A
Warranty
5-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered.
Model
Jupiter

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelJupiter
    Mount typeIsland
    BodySeamless stainless steel
    FinishBrushed stainless
    Size13-3/4 diameter" W x 13-3/4 diameter" D x 15 (hood body); hangs on cables, hood plus cables up to 65" H

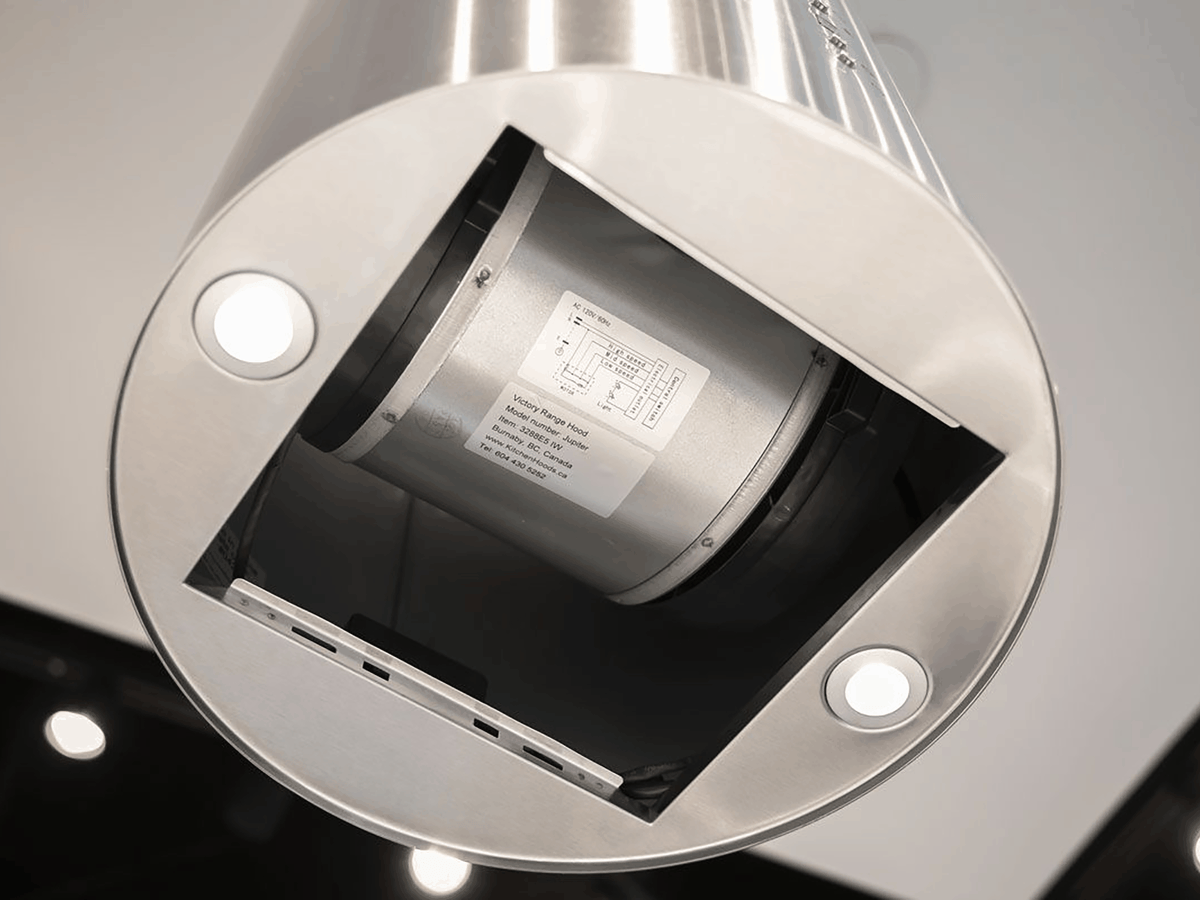

    BlowerInternal, single-motor centrifugal squirrel cage
    Speeds and airflow3 speeds: 200 / 400 / 600 CFM
    Noise1.0 / 3.5 / 5.5 sones
    Height above cooktop24" to 30"
    Ceiling height8 to 10 ft (hood plus cables up to 65 in); above 8 ft a longer power cable must be installed by an electrician
    Power120V 60Hz, 122 W, 4.0 A
    ElectricalHardwired: an electrician connects it to an electrical box in the ceiling on a separate 120V, 15 A circuit.
    Lights2 LED lights, 1 W, 12 V, not dimmable
    Filters1 aluminum mesh grease filter (not dishwasher safe) + 2 charcoal filters (included)

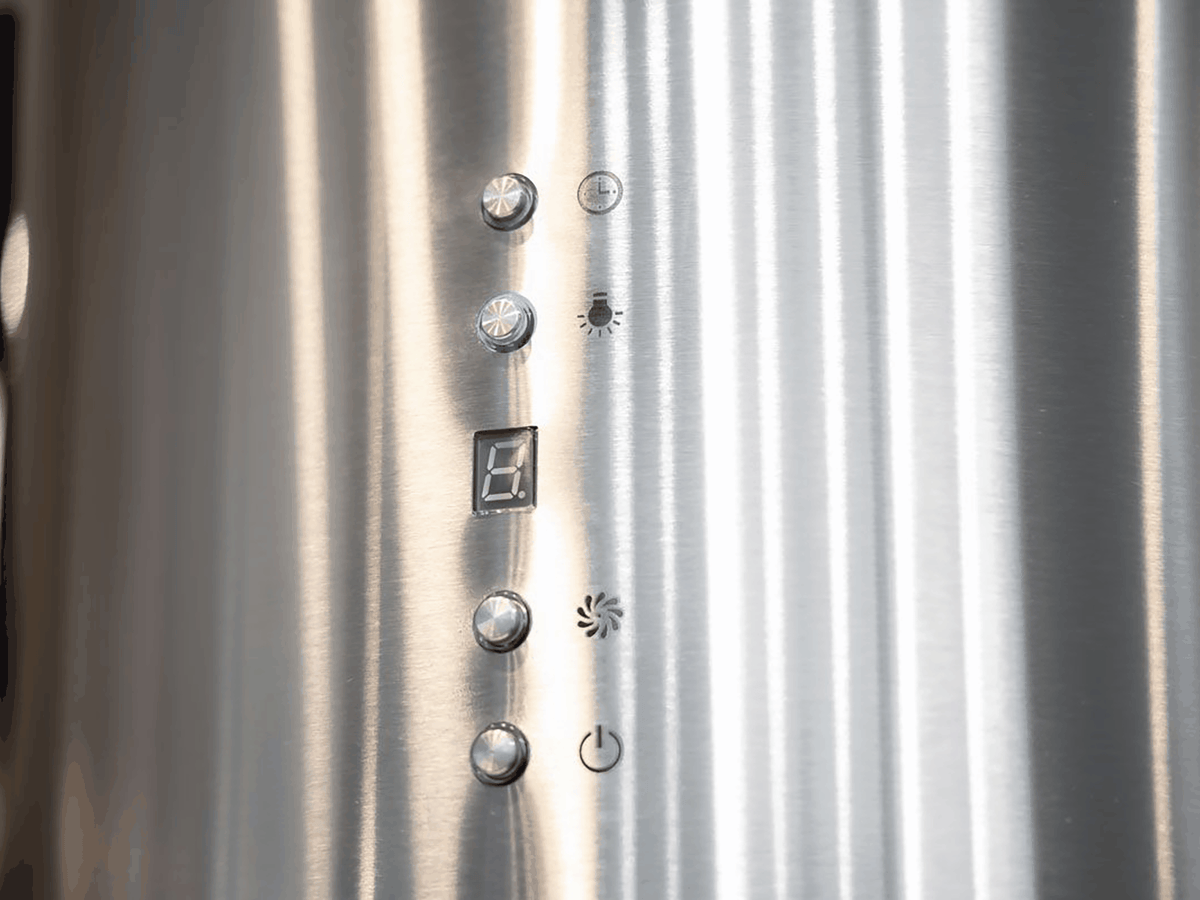

    ControlsRemote control (included) and electronic panel with LED display: power, fan speed, lights, 9-minute auto-off timer
    Without outside ventingDuctless only. Air passes through an aluminum mesh grease filter and 2 charcoal filters, then returns to the kitchen. Charcoal filters are not washable; replace them every 3 to 6 months (the install section says every 3 months).
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    Warranty5-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered.

    What you get

    What's in the box

    • Jupiter hood
    • Hanging board and decorative board
    • 59 in braided hanging cables with beaded ends (x4)

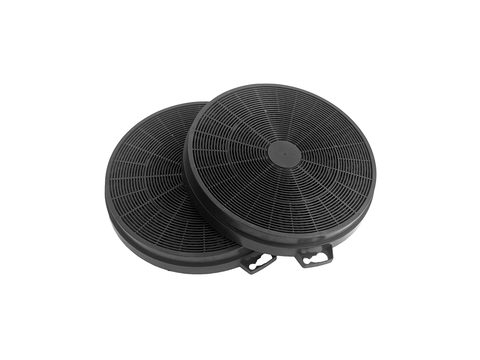

    • Charcoal filters (x2)
    • Aluminum mesh grease filter (x1)
    • Remote control
    • HardwareConcrete anchors (x4), wood screws (x8), adjustable screws with locking nuts (x4), M10 screw cap, barrel and nuts, M4 screws (x4), wire caps (x3), zip ties (x2)

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Plan the spot

      Find the ceiling centerline over the cooktop between joists and use the hanging board template to mark it.

    2. 2

      Add support

      Add two 6 x 4 inch wood braces between the joists and mount an electrical box with cover.

    3. 3

      Wire it

      Have an electrician run the 120V supply, connect the hood wiring in the electrical box and test the hood.

    4. 4

      Mount the boards

      Screw the hanging board to the wood support, then attach and level the decorative board.

    5. 5

      Hang the hood

      With three or more people, clip the four braided cables into the hood and set it 24 to 30 inches above the cooktop.

    6. 6

      Filters

      Lock in the two charcoal filters, then install the aluminum mesh filter.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Jupiter manualPDF · 3.3 MB Download

    Specs and drawings

    • Victory Jupiter dimensionsPDF · 2.6 MBDownload

    Questions

    Frequently asked questions

    How does a ductless hood work?

    The fan pulls cooking air through an aluminum mesh grease filter and two charcoal filters, then blows the filtered air out the top and back into the kitchen. Nothing is vented outside, so the charcoal filters do the odor work and must be replaced on schedule.

    How often do the charcoal filters need replacing?

    Every 3 to 6 months depending on how much you cook, and sooner with heavy cooking. Charcoal filters cannot be washed. If suction drops and noise goes up, it is time for new ones.

    Will it fit my ceiling?

    The hood plus its hanging cables reach up to 65 inches, which fits 8 to 10 foot ceilings. Above 8 feet, an electrician needs to install a longer main power cable.

    How high above the cooktop should it hang?

    24 to 30 inches above the cooktop, centered over it, and no closer than 15 inches to the ceiling.

    Does it plug in?

    No. It is hardwired into an electrical box in the ceiling on a separate 120V, 15 amp circuit. Victory says to have an electrician make the connection.

    Can the mesh filter go in the dishwasher?

    No. Soak it in a degreaser, dry it and reinstall it. Clean it about every 30 hours of cooking.

    What is the warranty?

    Victory's manual gives a five-year parts warranty for the original purchaser. Lights and filters are not covered.
