VICTORY Luna 30 Inch Under Cabinet Range Hood with Touch Controls, 590 CFM (Luna-30)
List price $1,049.00Marked down to $755.28You save $293.72
- Free shipping to the lower 48 states
- Ships direct from Victory Range Hoods
- Authorized Victory dealer
- Ships to the lower 48 states only (no AK, HI or PR)
Questions before you order? Call (508) 419-4276
Overview

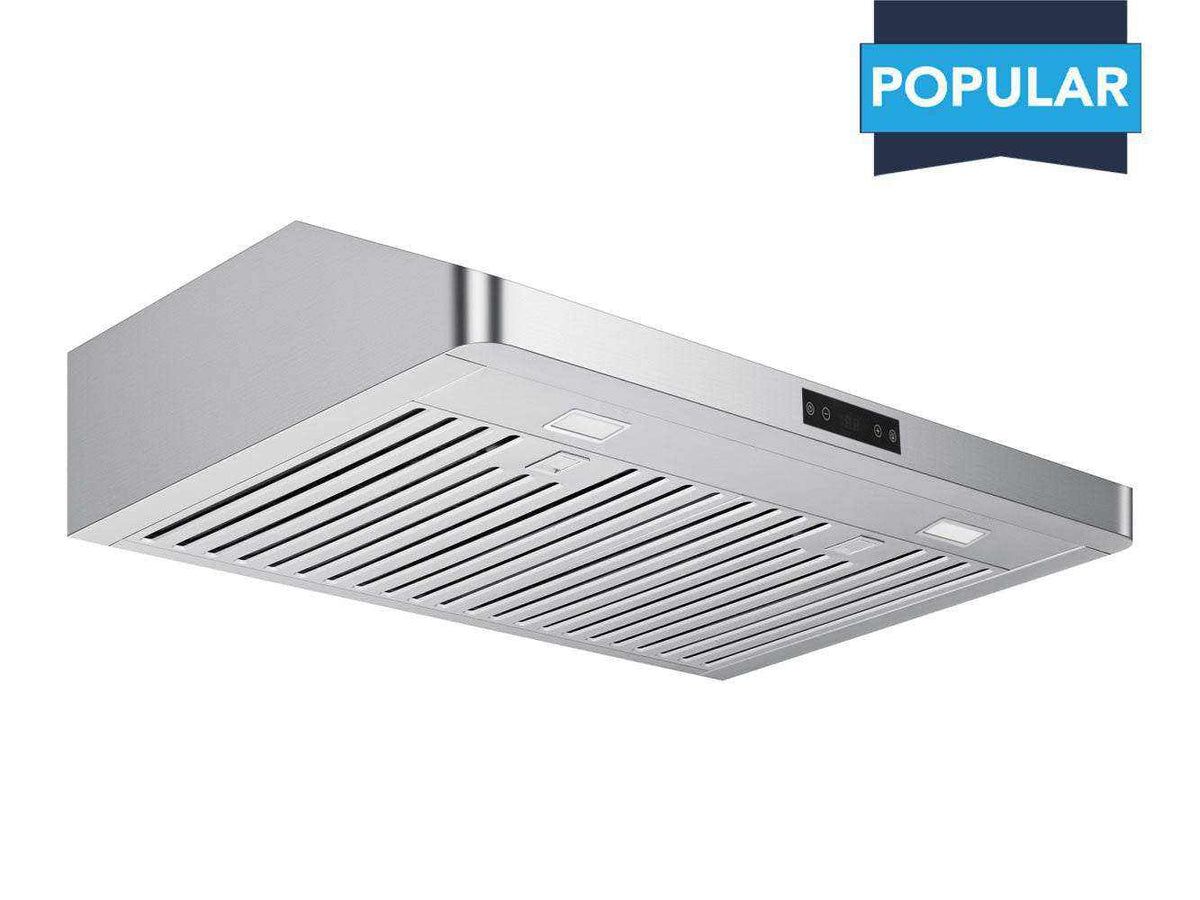

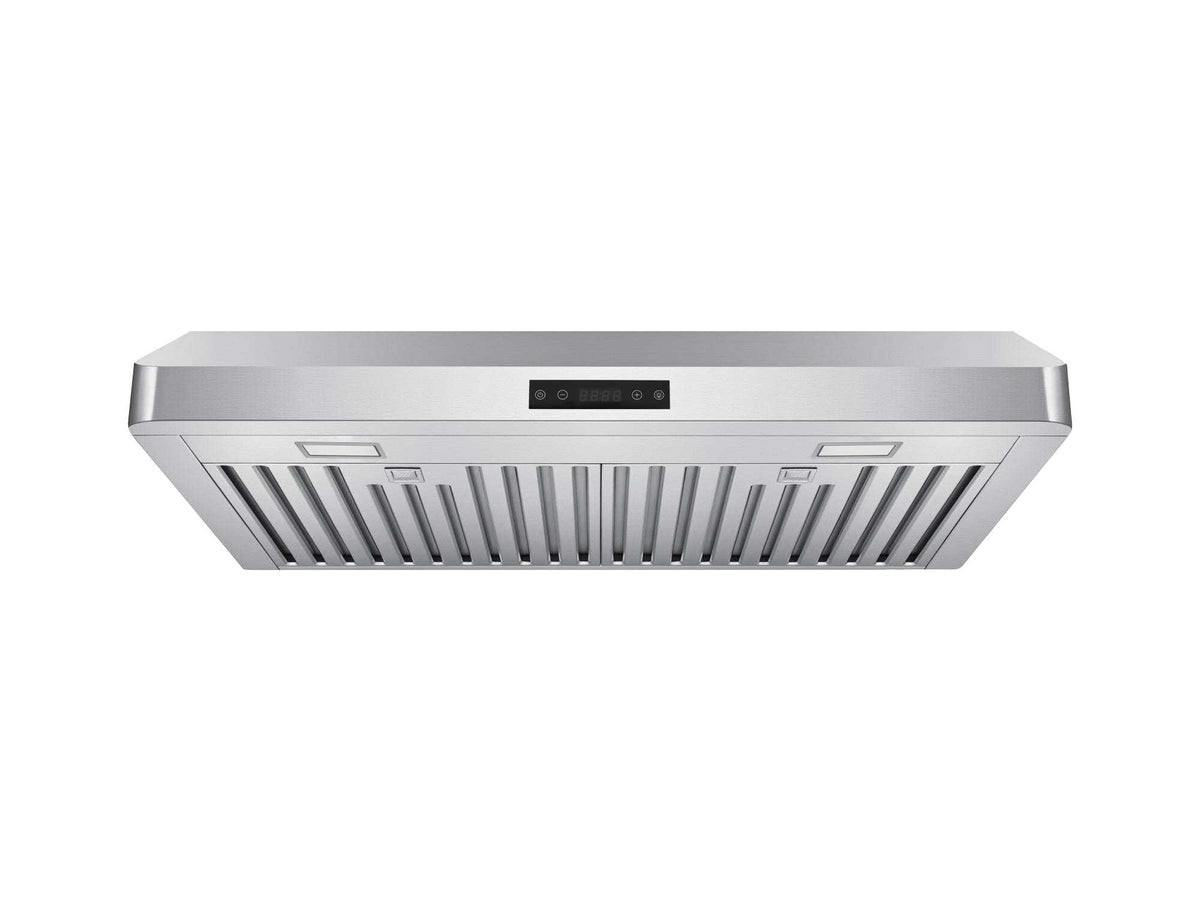

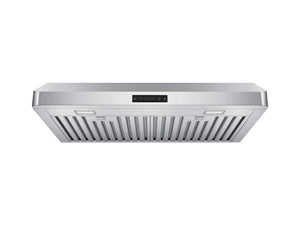

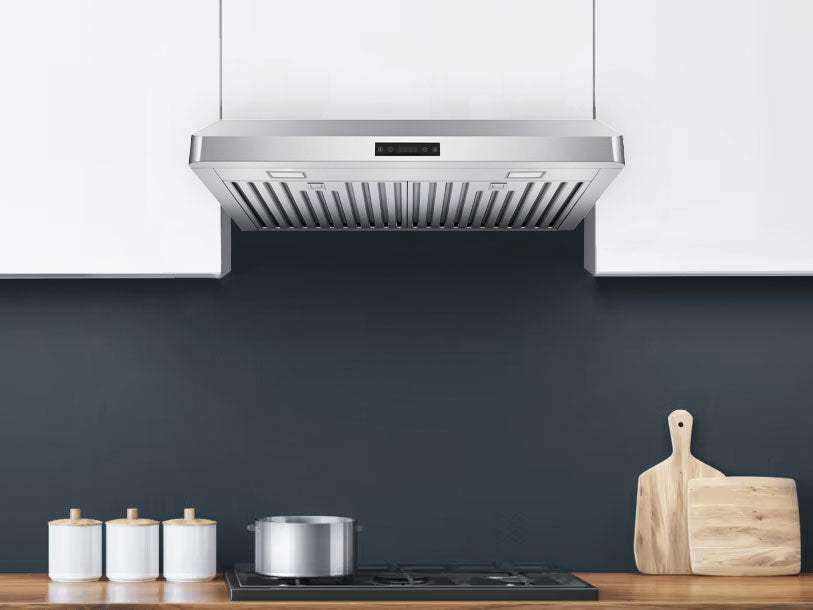

Victory Luna 30 Inch Under Cabinet Range Hood with Touch Controls
The Victory Luna is a slim 30 inch under cabinet hood with two metal blowers, a strong step up from a basic hood or a microwave vent. It is only 6 inches tall, vents through the top or the back, and uses stainless baffle filters. Soft-touch digital controls include a delayed shut-off.

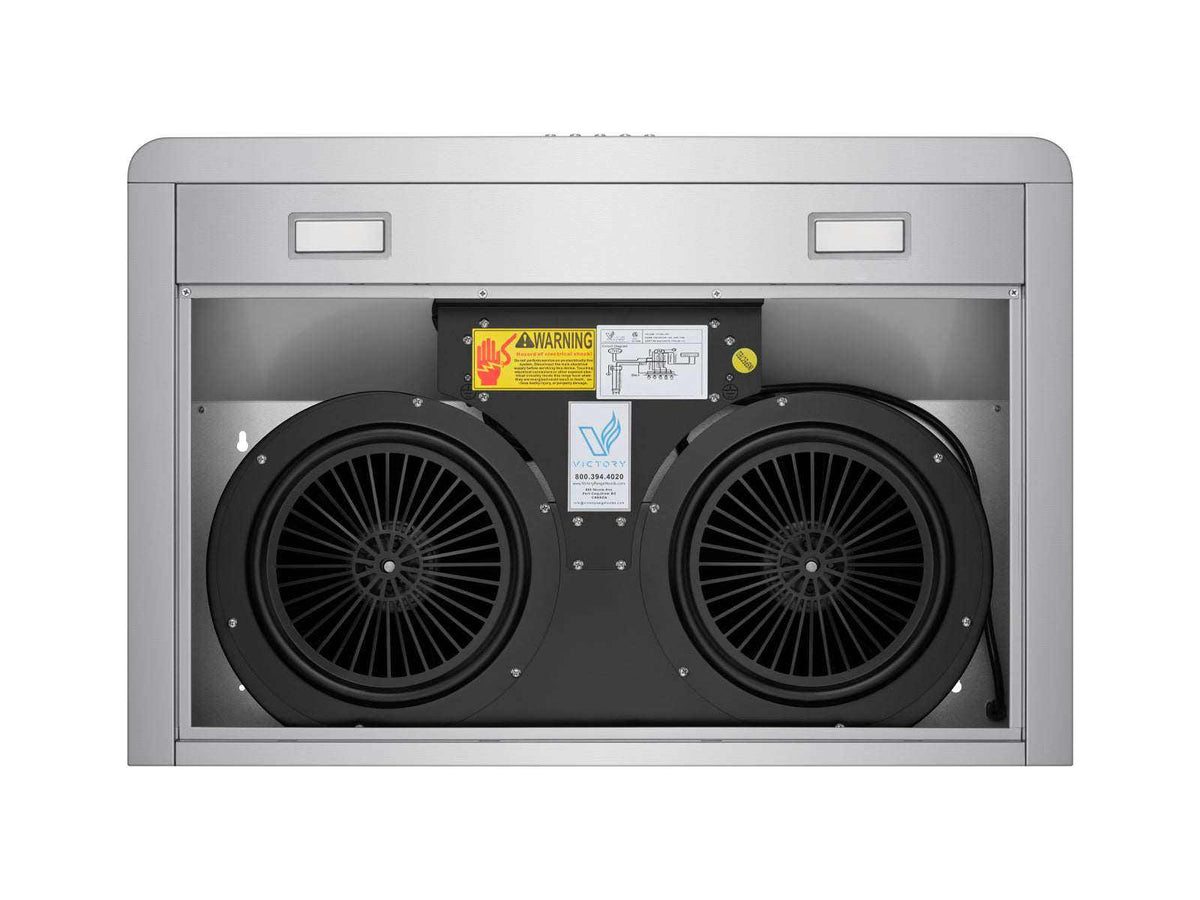

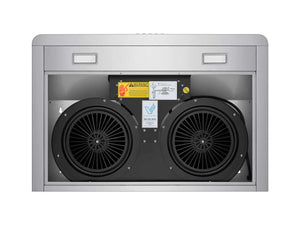

Two metal blowers
Dual blowers move up to 590 CFM on high, with 3 speeds for everyday cooking.
Fits tight spaces
Just 6 inches tall, with top or back venting to match the duct you have.

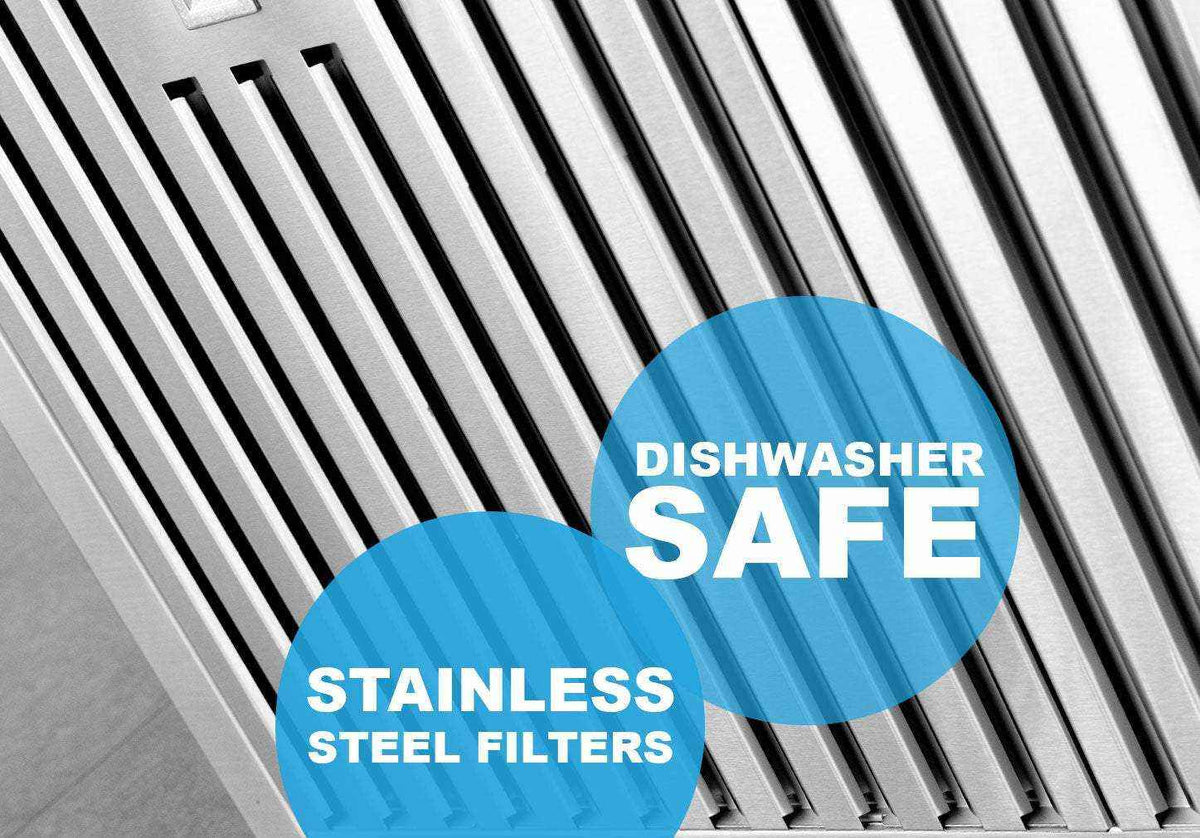

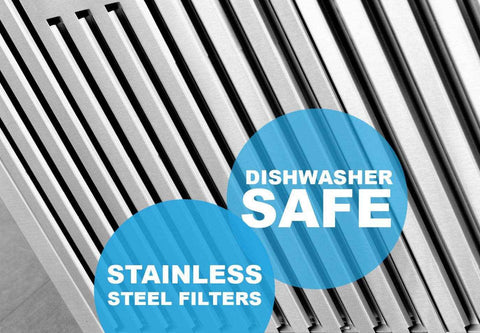

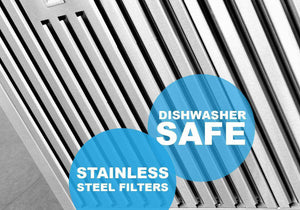

Easy-clean filters
Two stainless baffle filters that go in the dishwasher.
At a glance
- Mount
- Under cabinet
- Airflow
- 590 CFM max, 3 speeds
- Noise
- 1.0 to 6.5 sones
- Duct size
- 6" round, top or rear
- Hood size
- 29-1/2" W x 19-3/4" D
- Material
- 304 stainless steel, 1 mm
- Lights
- 2 x 2.5W LED, 3000K warm white
- Filters
- 2 stainless steel baffle filters; dishwasher safe
- Power
- 120V 60Hz
- Weight
- 40.0 lb
- Warranty
- Lifetime motor warranty and 5-year parts warranty, original purchaser, US and Canada; consumables excluded
- Model
- Luna
Will it fit?
Check your kitchen
Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.
Our suggestions
Answer what you know. Your suggestions show up here.
Local code may differ. Your installer and building department have the final say.
Want a second look? Call (508) 419-4276 or email us.
Options and specs
Options and full specifications
Full specificationsFrom the maker's spec sheet and manual, for you or your installer
| Model | Luna |
|---|---|
| Mount type | Under cabinet |
| Body | 304 stainless steel, 1 mm |

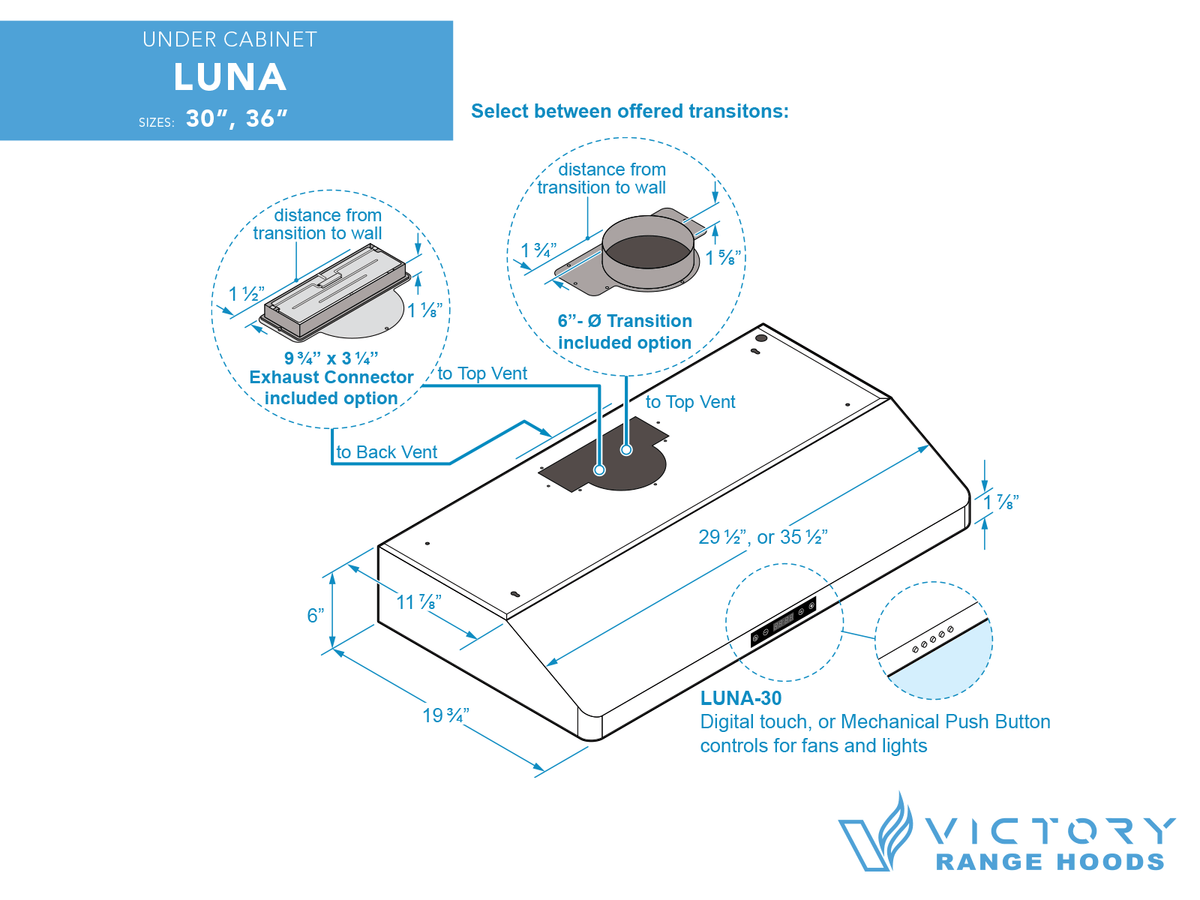

| Size | 29-1/2" W x 19-3/4" D x 6" H |
| Blower | Internal, dual metal blowers (two 100 W motors) |
| Speeds and airflow | 3 speeds: 180 / 385 / 590 CFM |
| Noise | 1.0 / 4.0 / 6.5 sones |
| Exhaust | 6" round, top or rear |
| Longest duct run | 50 ft equivalent |
| Height above cooktop | 24" to 30" |
| Power | 120V 60Hz, 205 W |
| Electrical | Plug-in power connection; Victory calls for a 120V, 60Hz fused supply on a separate 15 amp circuit, grounded, by a qualified electrician. |
| Lights | 2 x 2.5W LED, 3000K warm white |
| Filters | 2 stainless steel baffle filters; dishwasher safe |
| Controls | Digital touch panel: 3 speeds (F1-F3), lights, 3-minute delayed shut-off |
| Without outside venting | Must vent outside |
| Weight | 40.0 lb |
| Certifications | cETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113 |
| Warranty | Lifetime motor warranty and 5-year parts warranty, original purchaser, US and Canada; consumables excluded |
What you get
What's in the box
- Luna 30 range hoodTouch display

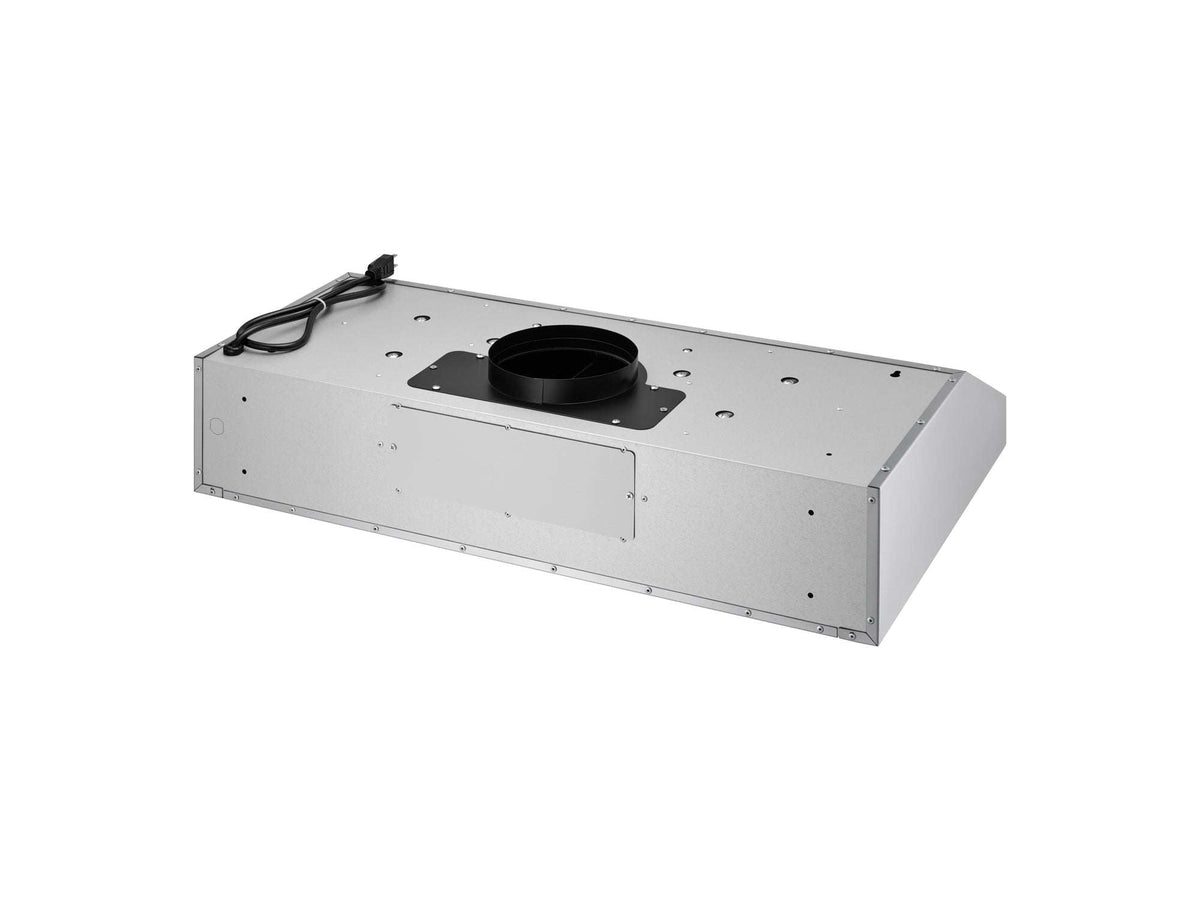

- 6 in round transitionTop vent only

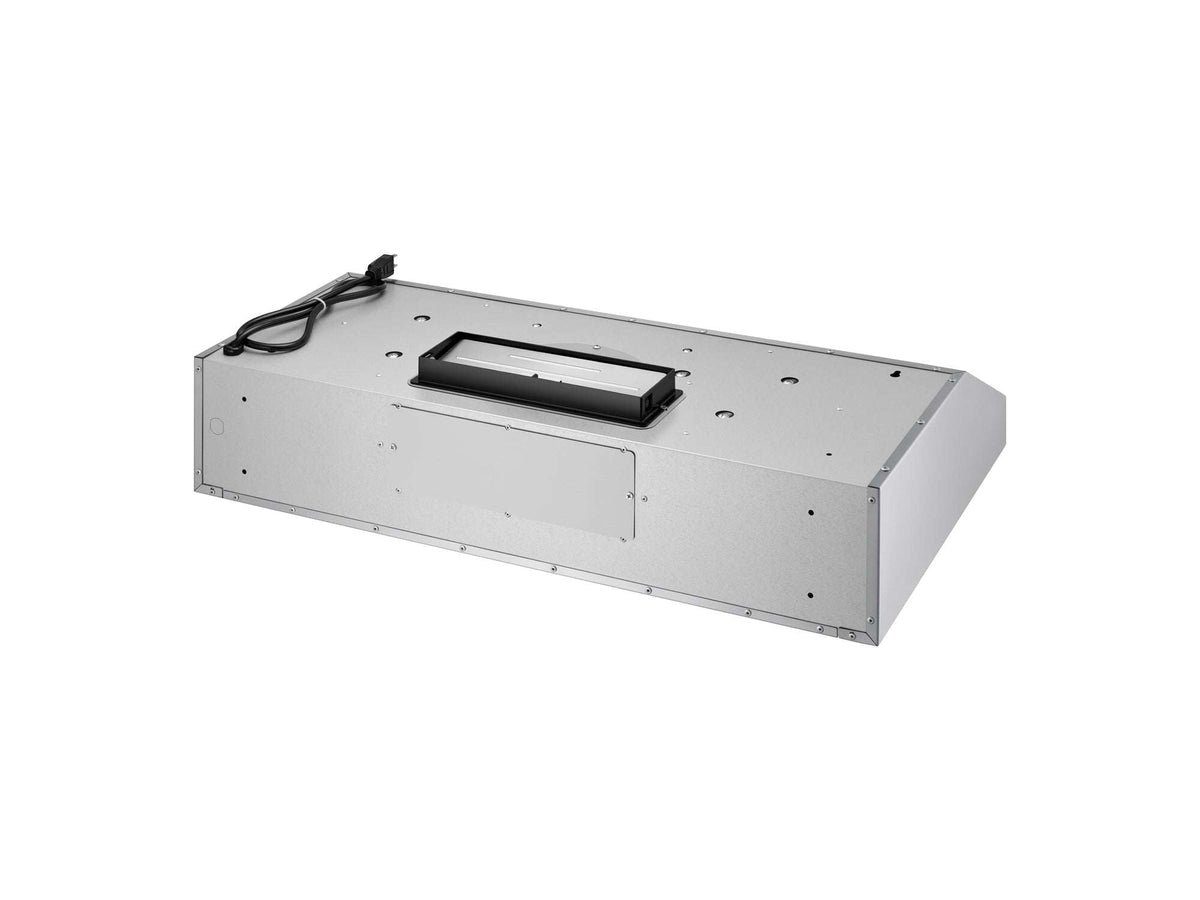

- 9-3/4 x 3-1/4 in rectangular exhaust connector with plate adaptorTop or back vent
- Paper installation templatesFor cutting the cabinet
- Stainless steel baffle filters (x2)Remove the protective film before installing
Installing it
How it goes in
We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.
- 1
Test it first
Plug the hood in and check each fan speed and the lights before mounting.
- 2
Pick your outlet
Remove the top cover plate and attach either the 6 inch round transition (top vent) or the rectangular connector (top or back vent).
- 3
Use the template
Tape the matching paper template under the cabinet, cut the duct and wiring openings, and drill pilot holes. Leave 7/8 inch from the wall.
- 4
Lift and fasten
Lift the hood into place (Victory says three or more people), feed the wiring through, and secure it with 4 wood screws from inside the hood.
- 5
Connect the duct
Connect 6 inch or rectangular metal duct and seal every joint with aluminum foil tape.
- 6
Finish
Power up, test, then click the baffle filters into place.
We sell the hood, not the install
We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.
Instructions and drawings
Downloads
Save or print these for your installer before the work starts.
Questions
Frequently asked questions
Can the Luna vent out the back?
Yes, using the included 9-3/4 x 3-1/4 inch rectangular connector. The 6 inch round transition vents through the top only.
What duct size does it need?
6 inch round metal duct, or rectangular duct with the rectangular connector. Vent it to the outside and keep elbows to a minimum.
How high should it hang above my cooktop?
Victory recommends 24 to 30 inches from the cooktop to the bottom of the hood.
How loud is it?
Victory lists 1.0 sone on low, 4.0 on medium and 6.5 on high.
Does it plug in?
Yes, it is a plug-in hood. Victory calls for a 120V outlet on its own 15 amp circuit, installed by a qualified electrician.
What does the delay timer do?
While the fan is running, press Power once and the fan turns off on its own after 3 minutes. Press Power twice quickly to turn it off right away.

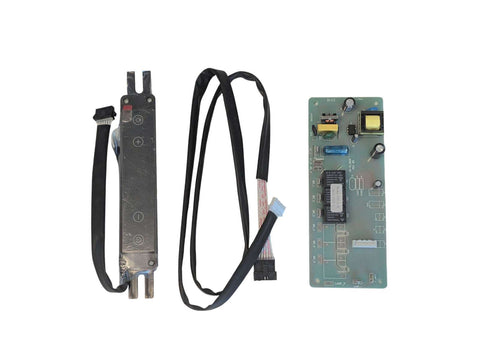

Parts and add-ons
