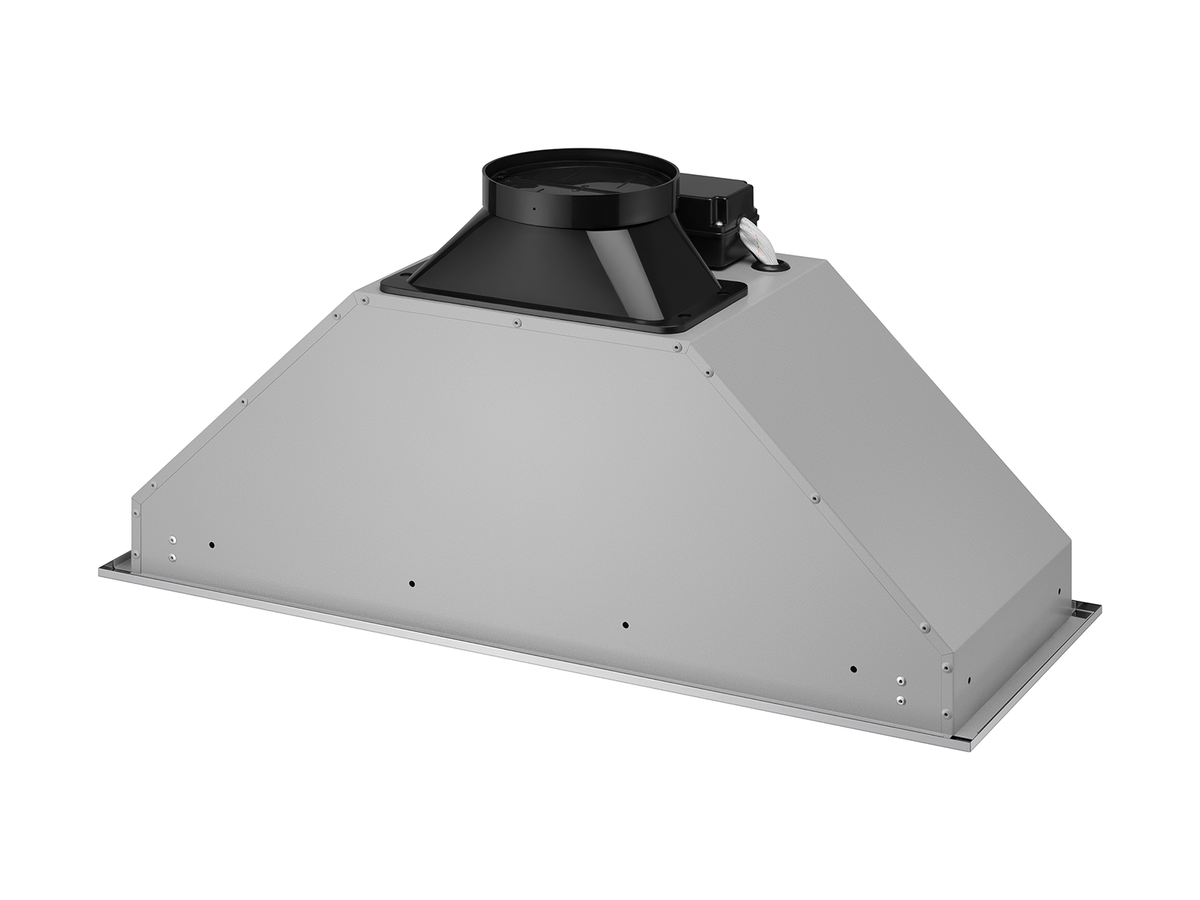

Victory Q1 36 inch stainless range hood insert, view 4
Victory Q1 36 inch stainless range hood insert, view 5
Victory Q1 36 inch stainless range hood insert, view 6
Victory Q1 36 inch stainless range hood insert, view 7
Victory Q1 36 inch stainless range hood insert

Victory Range Hoods Authorized dealer

VICTORY Q1 36 Inch Range Hood Insert, 600 CFM (Q1-36)

List price $999.00Marked down to $719.28You save $279.72

Airflow
170 / 310 / 429 / 600 CFM
Noise
1.0 / 5.5 sones
Hood size
35-1/2 at the lip; body 34" W x 11-3/4 at the lip; body 10-1/4" D
Duct
6" round
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

Victory Q1 36 Inch Range Hood Insert

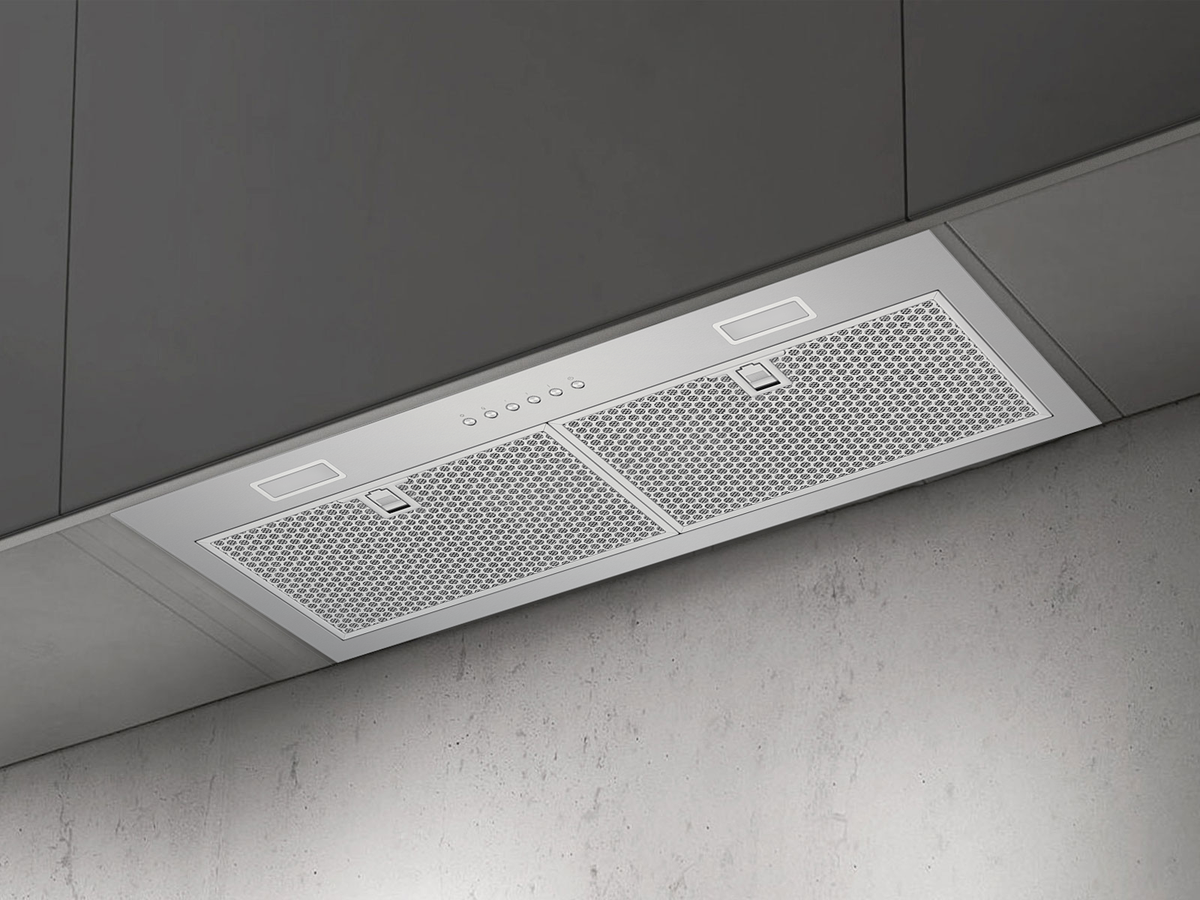

The Victory Q1 is a 36 inch range hood insert that hides inside a cabinet or custom wood hood above your cooktop. Its 4-speed, 600 CFM all-metal blower pulls smoke, steam and cooking smells outside through a standard 6 inch round duct. It suits homeowners who want a clean built-in look in a standard 12 inch deep cabinet.

  1. 600 CFM, four speeds

    An all-metal blower moves up to 600 CFM on high and drops to a quiet 1.0 sone on low.

  2. Made for 12 inch cabinets

    At 11-3/4 in deep at the lip, the Q1 fits a standard 12 inch deep cabinet. Victory's cut-out is 34-1/8 in wide x 10-5/8 in deep.

  3. Timer clears the air

    Tap the fan button once more and the hood keeps running for 3 minutes, then turns itself off.

At a glance

Mount
Insert
Airflow
600 CFM max, 4 speeds
Noise
1.0 to 5.5 sones
Duct size
6" round, top
Hood size
35-1/2 at the lip; body 34" W x 11-3/4 at the lip; body 10-1/4" D
Material
Stainless steel main panel, galvanized shell
Lights
2 LED lights, 2.5 W each (12V); warm 3000K
Filters
3 aluminum mesh grease filters; wash by hand with degreaser (not dishwasher safe); clean about every 30 hours of use
Power
120V 60Hz
Weight
25.0 lb
Warranty
Lifetime motor warranty; 5-year parts warranty (original purchaser, ordinary home use, US and Canada; excludes bulbs and filters)
Model
Q1

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelQ1
    Mount typeInsert
    BodyStainless steel main panel, galvanized shell
    FinishBrushed stainless

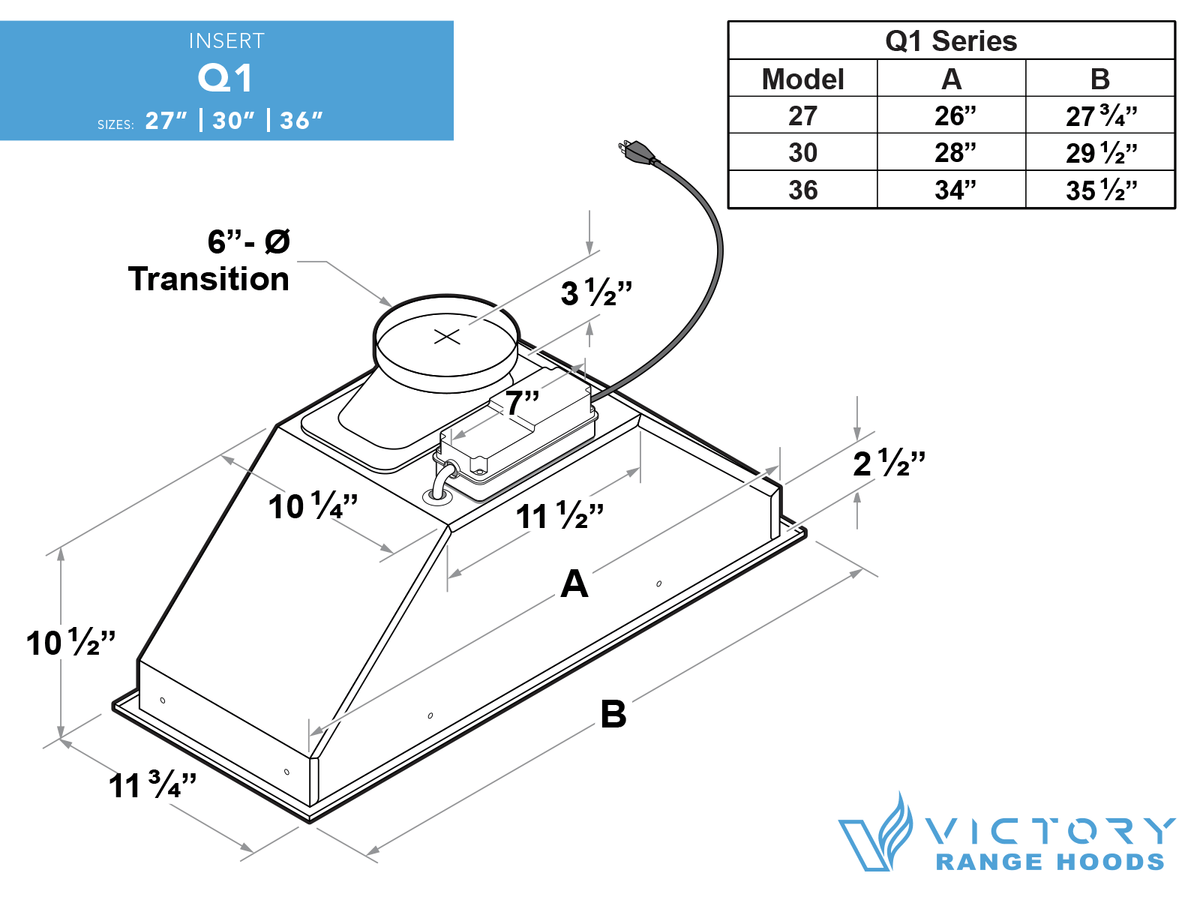

    Size35-1/2 at the lip; body 34" W x 11-3/4 at the lip; body 10-1/4" D x 10-1/2 (body); 14-1/2 with the 6 in transition" H
    BlowerInternal, single all-metal centrifugal (sirocco) blower
    Speeds and airflow4 speeds: 170 / 310 / 429 / 600 CFM
    Noise1.0 / 5.5 sones
    Exhaust6" round, top
    Longest duct run50 ft equivalent
    Height above cooktop24" to 30"
    Power120V 60Hz, 125 W
    ElectricalPlug-in (120V plug). Needs a 120V, 60 Hz outlet on a separate 15-amp circuit, located inside the cabinet above the hood; wiring by a qualified electrician.
    Lights2 LED lights, 2.5 W each (12V); warm 3000K
    Filters3 aluminum mesh grease filters; wash by hand with degreaser (not dishwasher safe); clean about every 30 hours of use

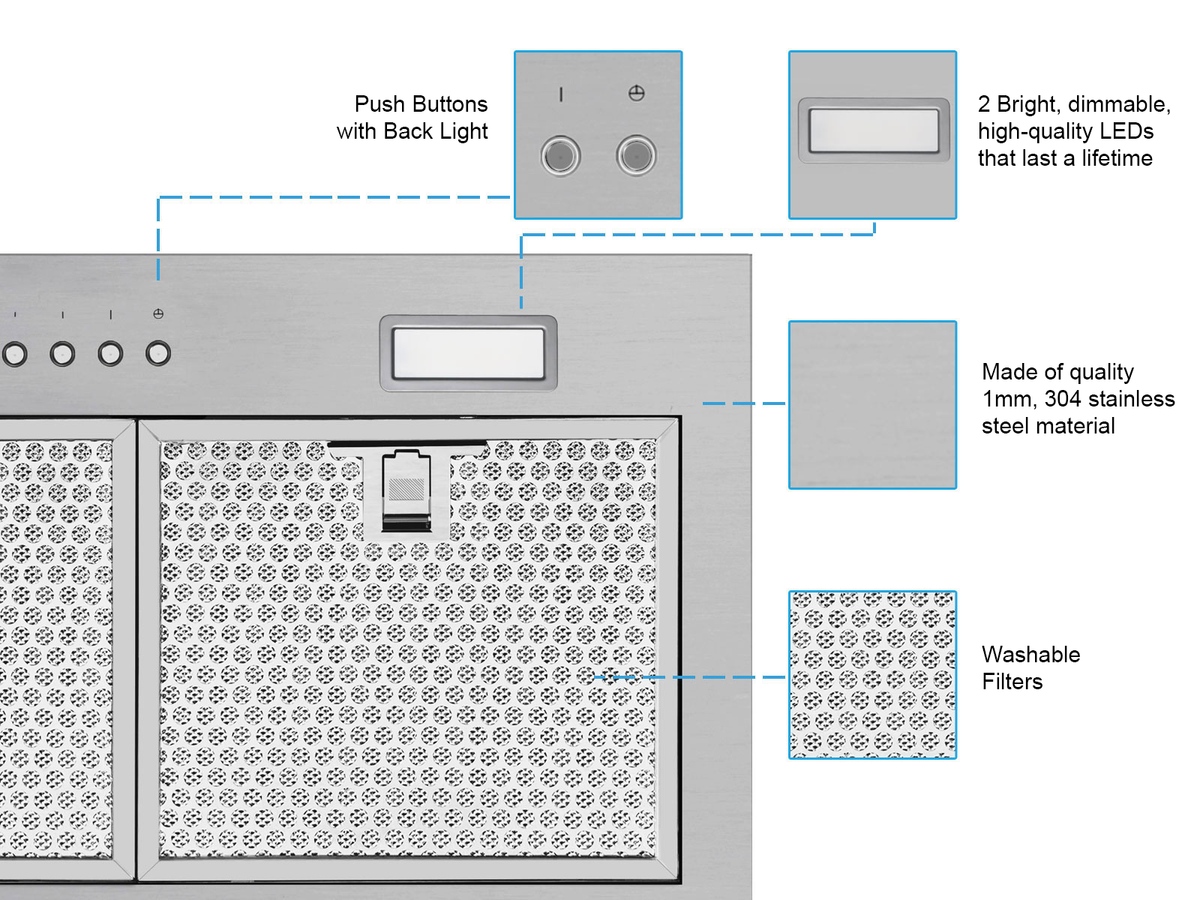

    ControlsElectronic push buttons: light on/off, 4 fan speeds (Quiet, Low, Medium, High), fan on/off with 3-minute auto-off timer
    Weight25.0 lb
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    WarrantyLifetime motor warranty; 5-year parts warranty (original purchaser, ordinary home use, US and Canada; excludes bulbs and filters)

    What you get

    What's in the box

    • Q1-36 range hood insertwith 120V plug
    • 6 in round duct transition
    • Aluminum mesh filters (x3)
    • M4 button head screws (x6)for the transition

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test it first

      Plug the hood in and check the fan and lights before it goes into the cabinet. Victory says to test before enclosing it.

    2. 2

      Cut the cabinet bottom

      Cut an opening of 34-1/8 in wide x 10-5/8 in deep, at least 3/4 in from the wall. The cabinet needs front doors for access.

    3. 3

      Add wood blocking

      Fasten fire-rated wood blocking inside the cabinet to hold the hood.

    4. 4

      Slide it in and fasten

      Lift the hood into the opening and screw it to the blocking through the pre-drilled side holes.

    5. 5

      Connect the duct

      Attach the 6 in transition and run 6 in round metal duct to a wall or roof cap. Seal every joint with aluminum foil tape.

    6. 6

      Plug in and add filters

      Plug the hood into its outlet, then click the mesh filters into place.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Q1 manualPDF · 2.1 MB Download

    Specs and drawings

    • Victory Q1 spec sheetPDF · 2.5 MBDownload

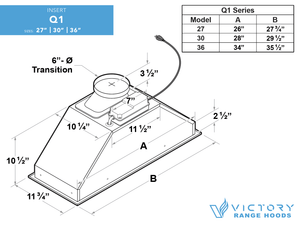

    • Victory Q1 dimensionsPDF · 1.6 MBDownload
    • Victory Q1 fan performancePDF · 1.5 MBDownload

    Questions

    Frequently asked questions

    Will the Q1-36 fit in a standard 12 inch deep cabinet?

    Yes. Victory lists it at 11-3/4 in deep at the lip. You cut an opening of 34-1/8 in wide x 10-5/8 in deep in the cabinet bottom, at least 3/4 in from the wall so the lip has room.

    How loud is it?

    Victory rates the Q1 at 1.0 sones on the lowest speed and 5.5 sones on the highest. Victory says one sone is roughly the sound of a quiet refrigerator.

    What duct does it need?

    A 6 inch round metal duct (rigid is recommended) that goes outside through a wall or roof cap with a backdraft damper. Victory allows up to 50 ft of straight duct, minus about 9 ft for each 90 degree elbow and 5 ft for each 45.

    How high should it hang above my cooktop?

    Victory recommends 24 to 30 inches between the cooktop and the bottom of the hood, with 28 inches as the sweet spot.

    Can I put the filters in the dishwasher?

    Victory's manual says no. The aluminum mesh filters lift out and should be soaked in a degreaser, rinsed and dried. Clean them about every 30 hours of use.

    How does it get power?

    It plugs in. Victory calls for a 120V outlet on its own 15-amp circuit inside the cabinet above the hood, installed by a qualified electrician.

    What is the warranty?

    Victory covers the motor for life and parts for 5 years for the original purchaser. Bulbs and filters are not covered.
