VICTORY Q5 30 Inch Range Hood Insert with Remote Blower, 450/600 CFM (Q5-30-RB)

List price $2,399.00Marked down to $1,727.28

Choose your remote blower below

Choose your remote blower

Airflow
600 CFM
Hood size
29-1/2 overall at the bottom lip (body above the lip 28-1/4)" W x 19-1/4 overall at the bottom lip (body above the lip 18-1/4)" D
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

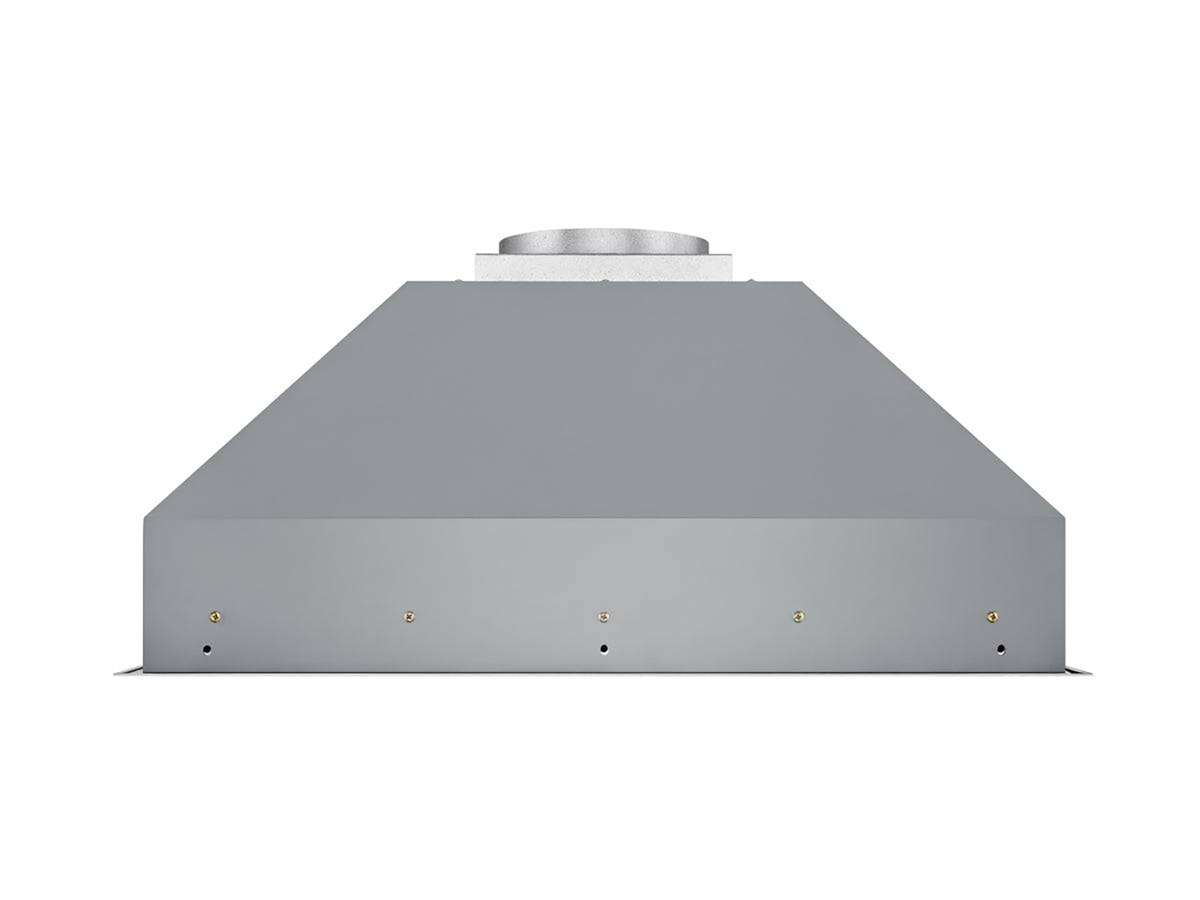

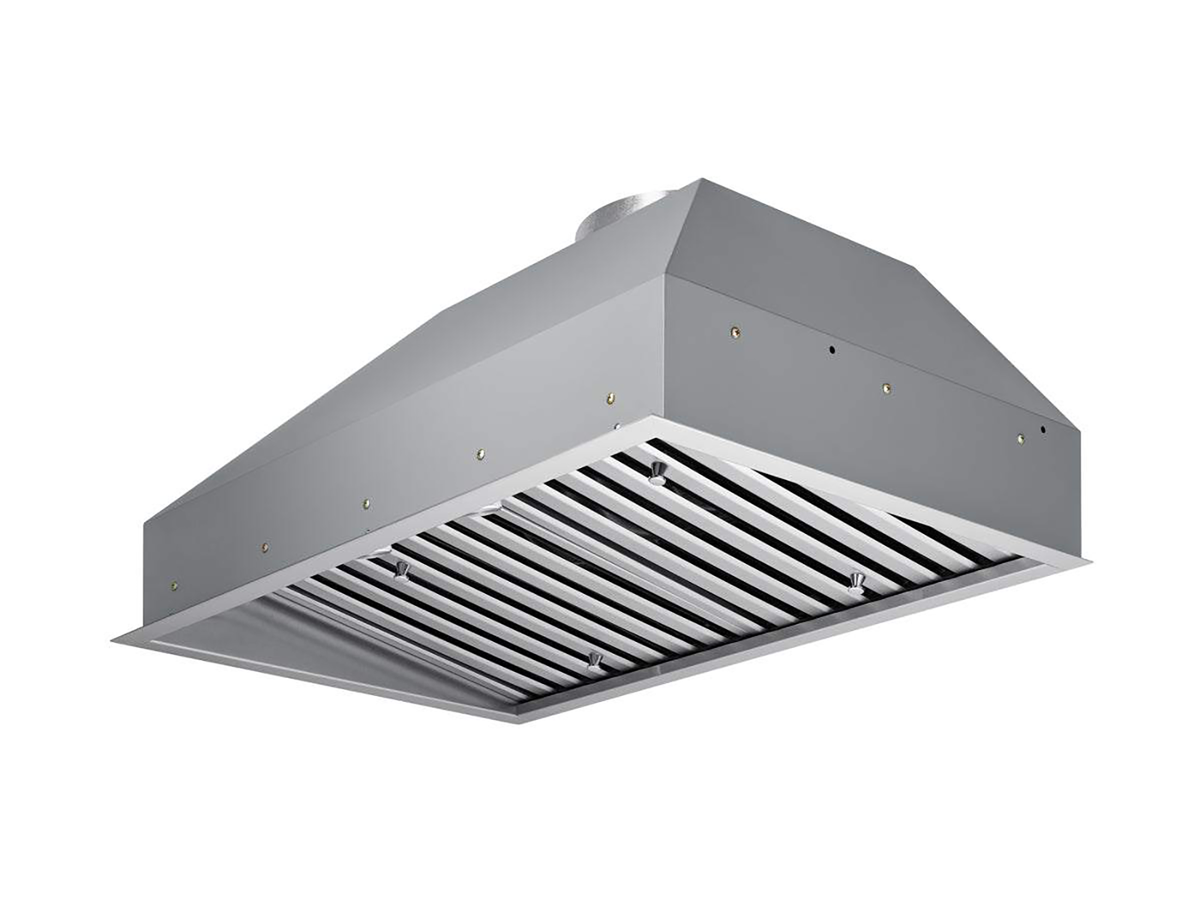

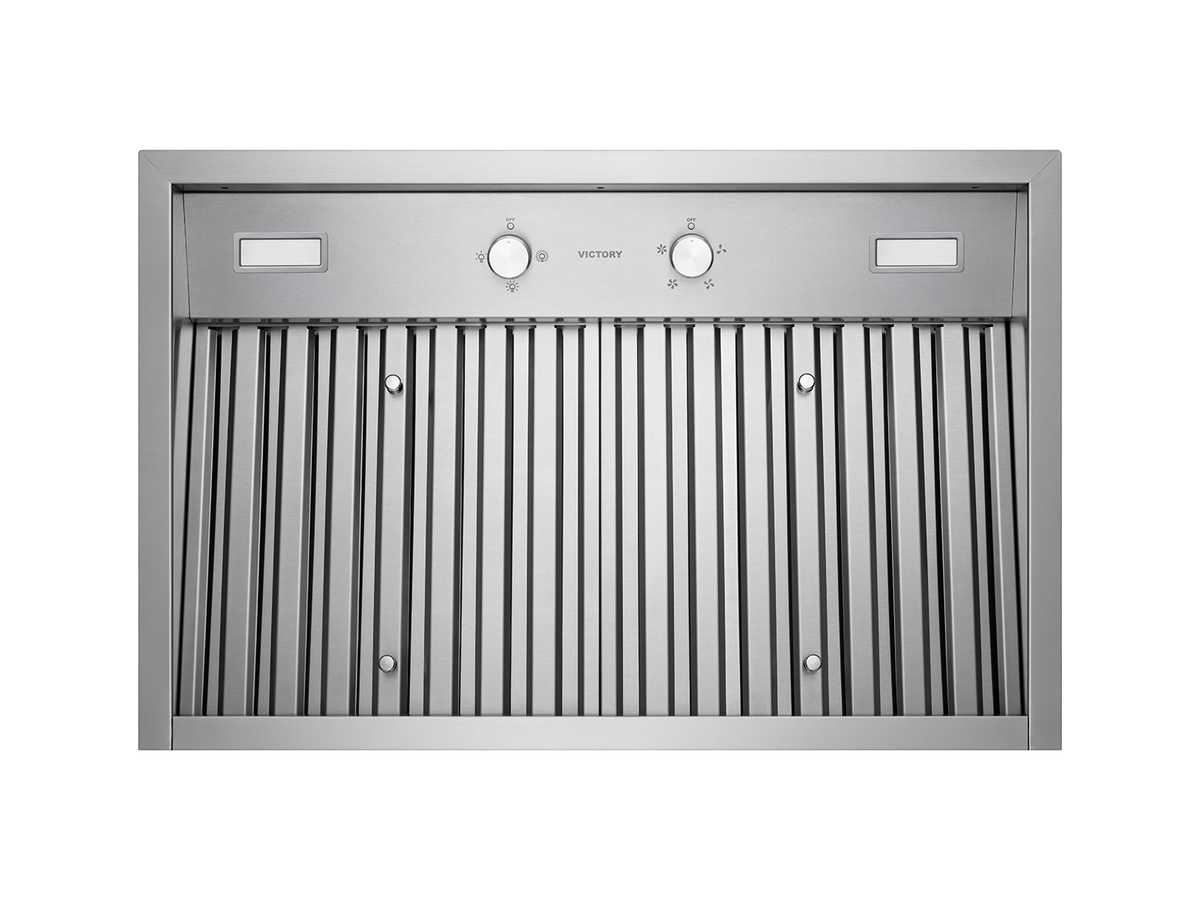

Victory Q5 30 Inch Range Hood Insert with Remote Blower

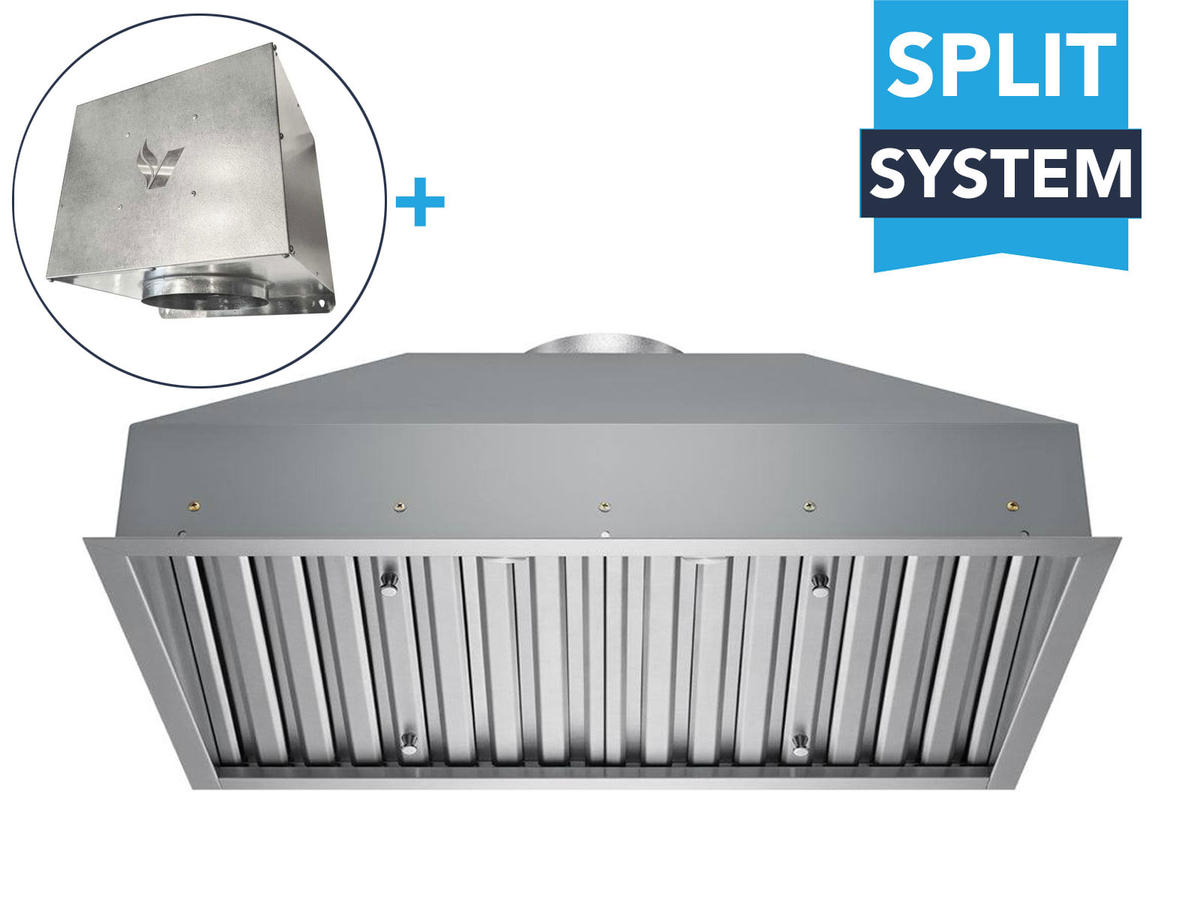

This 30 inch Victory Q5 insert moves the fan motor out of the kitchen. You pick a 450 or 600 CFM remote blower that mounts inline in the duct or on an outside wall, so the hood itself stays quieter. It hides inside a custom wood hood and is 19-1/4 inches deep for good coverage.

  1. Motor out of the room

    The blower mounts in the duct or on an outside wall, so less fan noise reaches the kitchen.

  2. Pick your power

    Choose 450 CFM on 6 inch duct or 600 CFM on 8 inch duct to match your duct run.

  3. Easy to clean

    Stainless steel baffle filters go right in the dishwasher.

At a glance

Mount
Insert
Airflow
600 CFM max, 4 speeds
Hood size
29-1/2 overall at the bottom lip (body above the lip 28-1/4)" W x 19-1/4 overall at the bottom lip (body above the lip 18-1/4)" D
Material
304 stainless steel
Lights
2 dimmable LED lights
Filters
Stainless steel baffle filters, dishwasher safe
Warranty
5-year parts warranty
Model
Q5

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Options
    OptionPart numberPrice
    450 CFM Inline / 6" Duct450 CFM inline blower, 6" ductVICTORY-Q5-30-RB-450-CFM-INLINE-6-DUCT$2,399.00 $1,727.28
    450 CFM Outdoor Wall Mounted / 6" Duct450 CFM outdoor wall blower, 6" ductVICTORY-Q5-30-RB-450-CFM-OUTDOOR-WALL-MOUNTED-6-DUCT$2,399.00 $1,727.28
    600 CFM Inline / 8" Duct600 CFM inline blower, 8" ductVICTORY-Q5-30-RB-600-CFM-INLINE-8-DUCT$2,399.00 $1,727.28
    600 CFM Outdoor Wall Mounted / 8" Duct600 CFM outdoor wall blower, 8" ductVICTORY-Q5-30-RB-600-CFM-OUTDOOR-WALL-MOUNTED-8-DUCT$2,399.00 $1,727.28
    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelQ5
    Mount typeInsert
    Body304 stainless steel

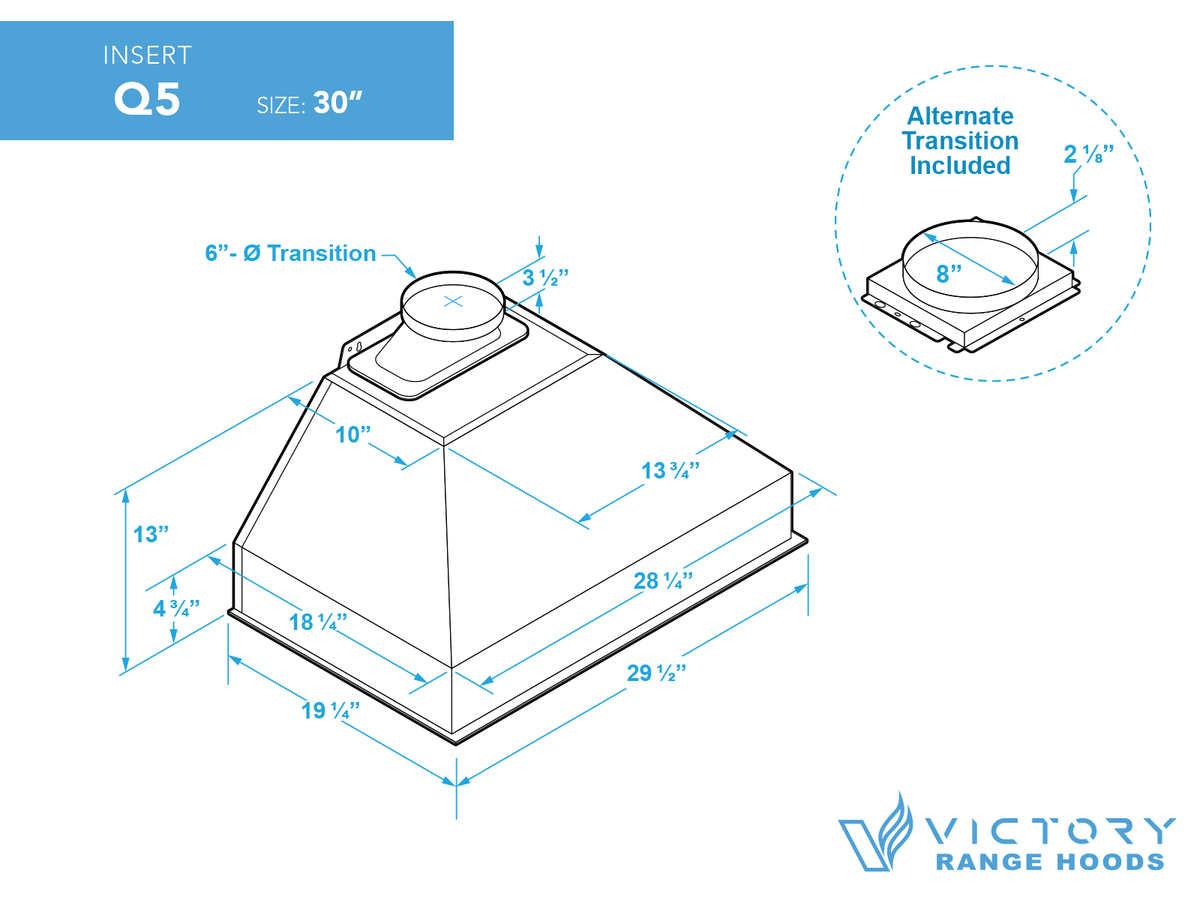

    Size29-1/2 overall at the bottom lip (body above the lip 28-1/4)" W x 19-1/4 overall at the bottom lip (body above the lip 18-1/4)" D
    BlowerRemote (inline or outdoor wall)
    Airflow600 CFM max
    Height above cooktop24" to 30"

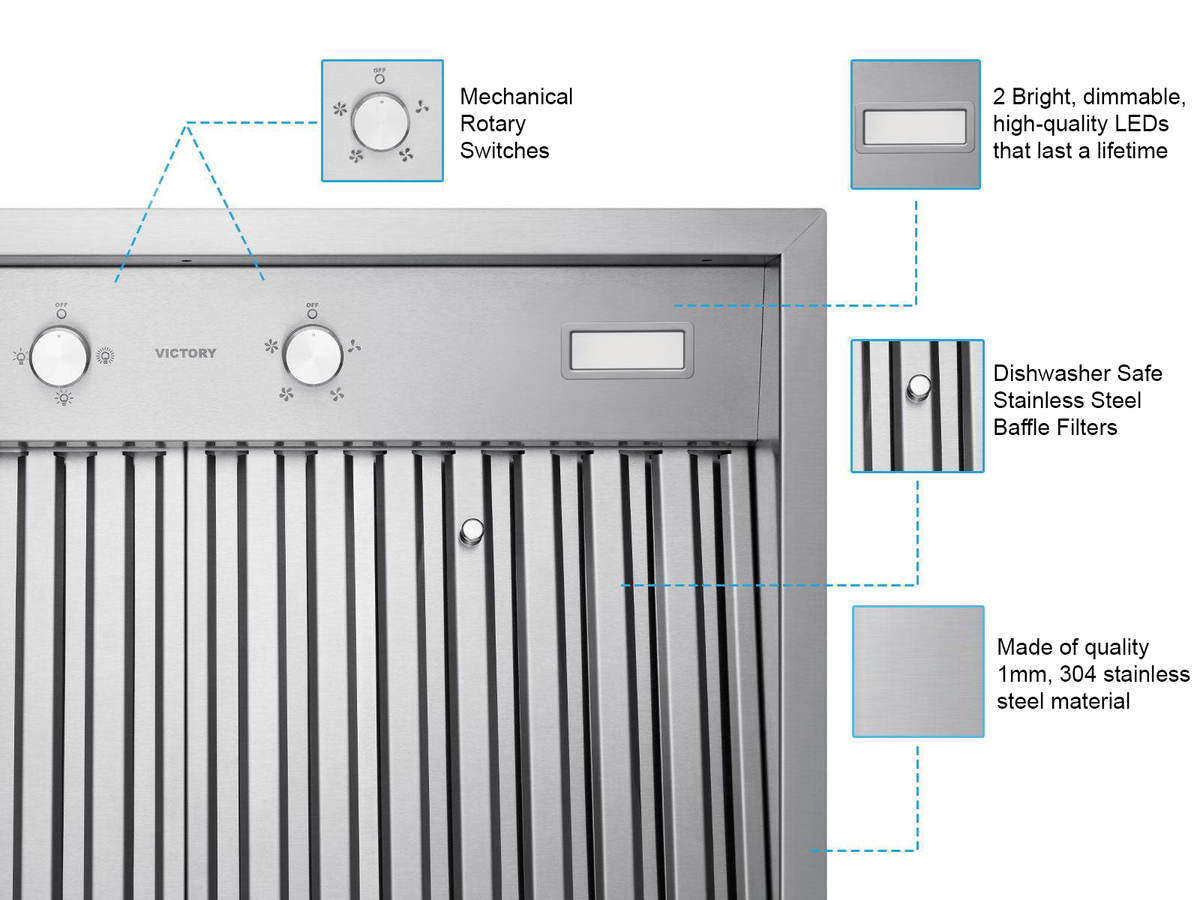

    Lights2 dimmable LED lights
    FiltersStainless steel baffle filters, dishwasher safe
    ControlsMechanical rotary switch, 4 speeds; hidden switch design
    Without outside ventingMust vent outside
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    Warranty5-year parts warranty

    What you get

    What's in the box

    • Q5-30 range hood insertVictory doesn't publish a separate parts list for the remote-blower version

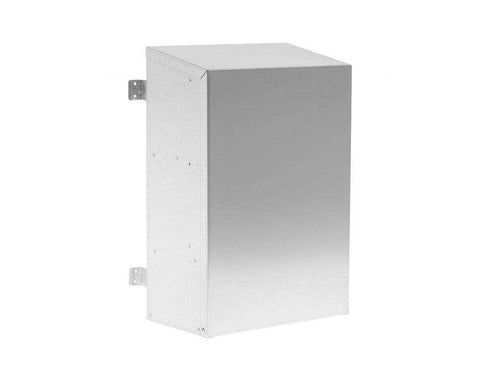

    • Remote blowerThe inline or outdoor wall blower you choose (450 or 600 CFM)

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test before enclosing

      Victory's Q5 manual says to check the hood works before boxing it into cabinetry.

    2. 2

      Plan the duct, blower and power

      Choose where the inline or outdoor blower will go and run 6 or 8 inch round metal duct to match it. Plan power with an electrician.

    3. 3

      Add solid backing

      The Q5 hangs on the back wall. Screw it to studs or a plywood brace, never drywall anchors.

    4. 4

      Finish the surround

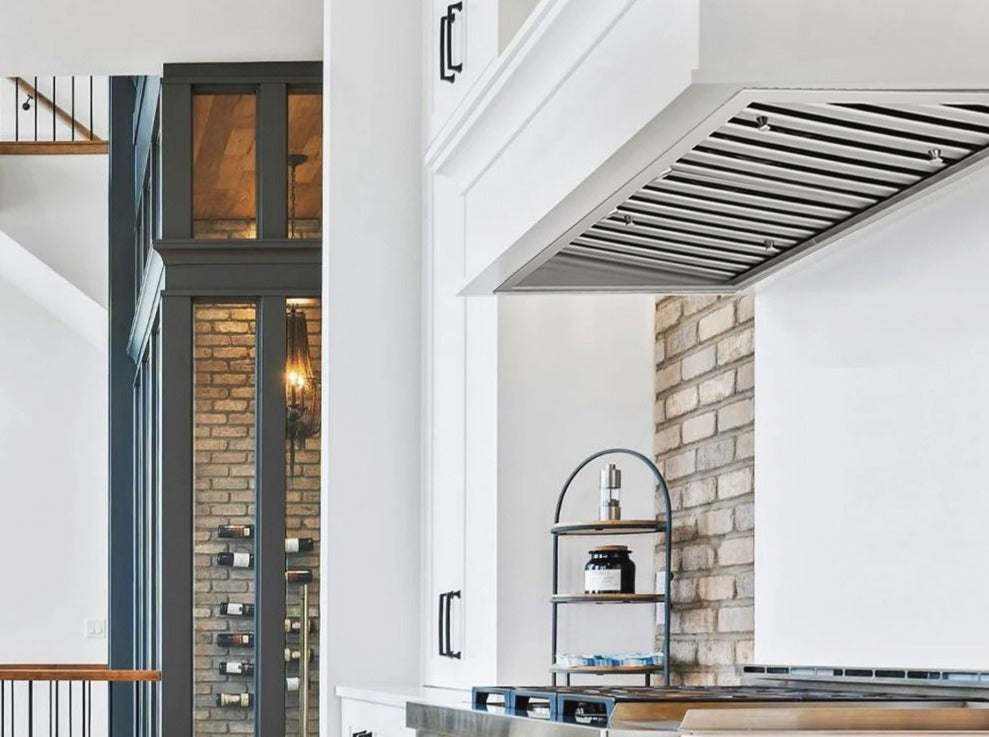

      Build the wood hood around it so the bottom lip sits flush under the bottom panel, with front doors for access.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Q5 manualPDF · 2.1 MB Download

    Specs and drawings

    • Victory Q5 dimensionsPDF · 0.5 MBDownload

    Questions

    Frequently asked questions

    What is a remote blower?

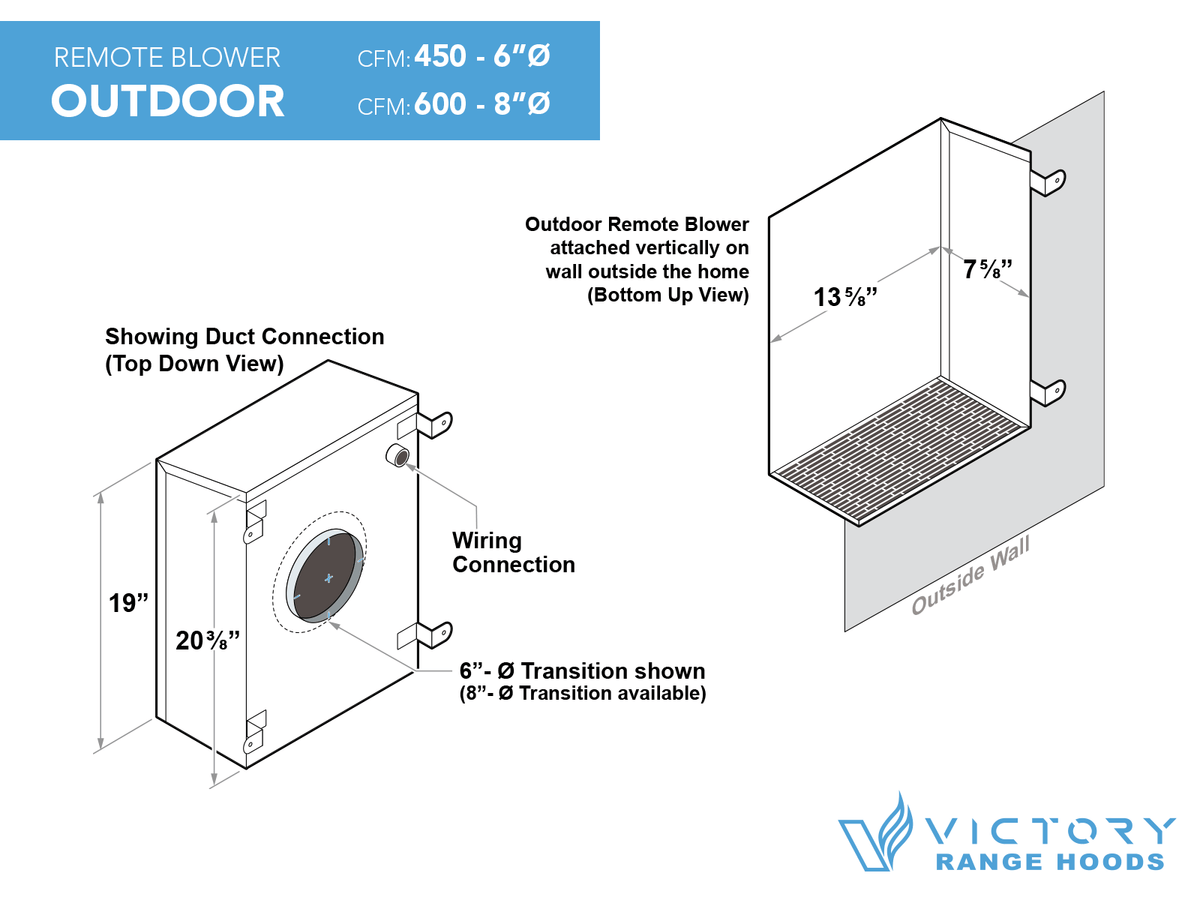

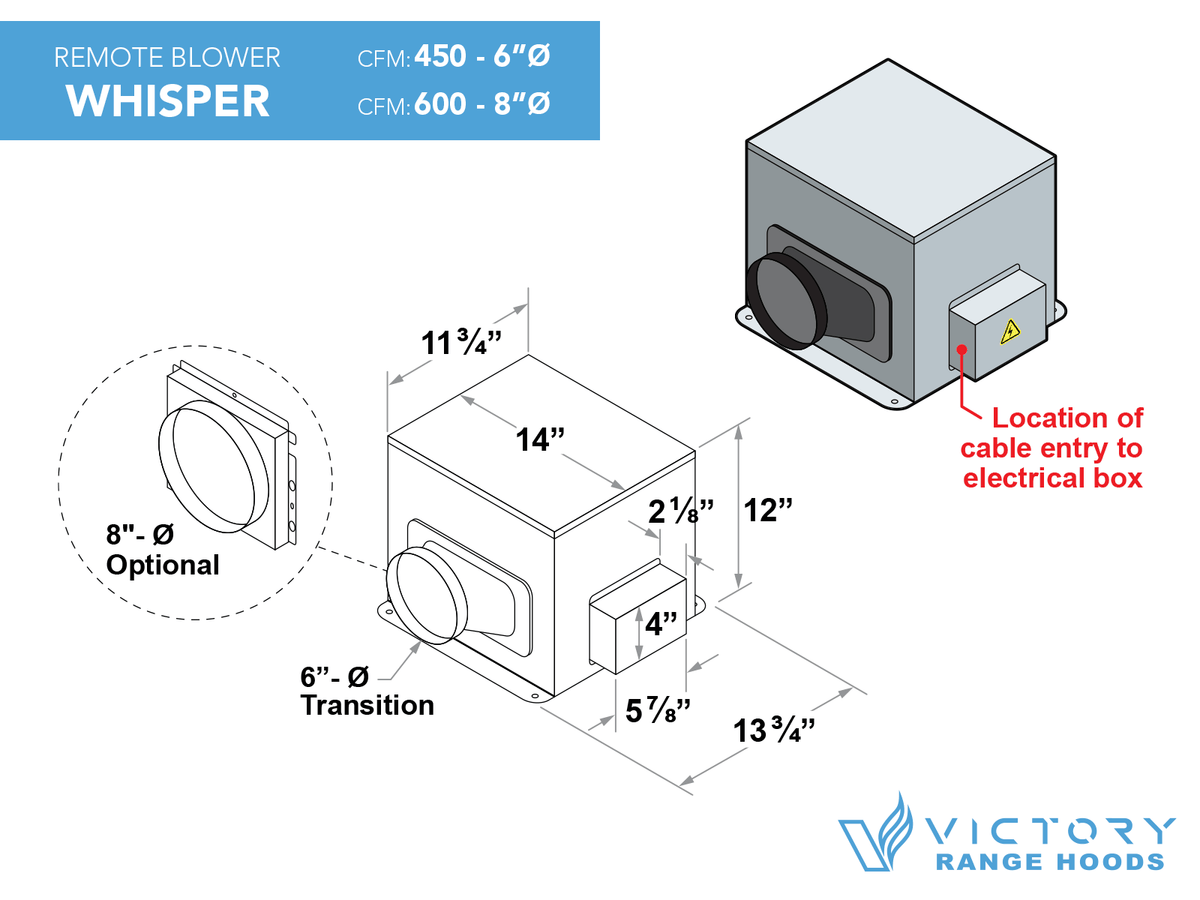

    The fan motor sits away from the hood, either inline in the duct run or on an outside wall, instead of inside the insert. You pick 450 CFM on 6 inch duct or 600 CFM on 8 inch duct.

    Which blower option should I choose?

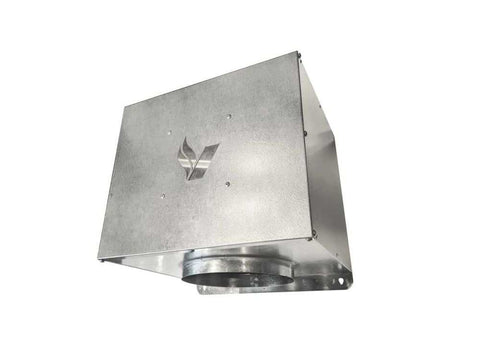

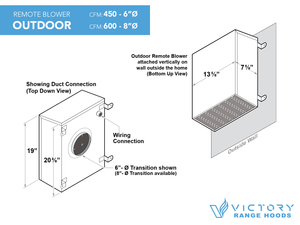

    Inline blowers sit inside the duct run. Outdoor wall blowers mount on the outside wall. Pick 6 inch or 8 inch to match the duct you plan to run, since each option is tied to its duct size.

    What size opening does my wood hood need?

    Victory's cut-out in the bottom panel of an existing cabinet for the 30 inch Q5 is 28-1/2 inches wide by 18-3/8 inches deep. The insert's bottom lip overlaps the opening. That figure comes from the standard Q5 manual.

    Which way does it vent?

    Victory lists this version as top exhaust only.

    Can I use it without ducting to the outside?

    No. Victory's Q5 manual says all exhaust must be vented outside, never into an attic, wall or ceiling space.

    Questions about venting or fit?

    Call or email us and we'll help you check the details before you order.
