VICTORY Q6 21 Inch Range Hood Insert Power Pack, 600 CFM (Q6-21)

List price $599.00Marked down to $431.28You save $167.72

Airflow
150 / 300 / 450 / 600 CFM
Noise
1.0 / 6.0 sones
Hood size
20-1/2 at the lip; body 19" W x 11-3/4 at the lip; body 10" D
Duct
6" round
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

Victory Q6 21 Inch Range Hood Insert Power Pack

The Victory Q6 is a compact 21 inch range hood insert, or power pack, that hides inside a small wood hood or a standard 12 inch deep cabinet. Its 4-speed, 600 CFM all-metal motor vents through a 6 inch round duct. It is a good fit when you want a slim built-in hood over a smaller cooktop or inside a narrow hood design.

  1. Small size, 600 CFM

    A 4-speed all-metal motor moves up to 600 CFM from a 20-1/2 in wide insert.

  2. Fits 12 inch cabinets

    At 11-3/4 in deep at the lip, it fits a standard 12 inch deep cabinet with a 19 x 10 in cut-out.

  3. Timer clears the air

    Press the fan button once more and it runs 3 more minutes, then shuts off.

At a glance

Mount
Insert
Airflow
600 CFM max, 4 speeds
Noise
1.0 to 6.0 sones
Duct size
6" round, top
Hood size
20-1/2 at the lip; body 19" W x 11-3/4 at the lip; body 10" D
Material
Seamless stainless steel
Lights
2 rectangular LED lights, 2.5 W each (12V); warm 3000K
Filters
Aluminum mesh grease filters; wash by hand with degreaser (not dishwasher safe); clean about every 30 hours of use. Optional charcoal filters (2) for recirculation.
Power
120V 60Hz
Warranty
5-year parts warranty (original purchaser, ordinary home use, US and Canada; excludes bulbs and filters)
Model
Q6

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelQ6
    Mount typeInsert
    BodySeamless stainless steel
    FinishBrushed stainless
    Size20-1/2 at the lip; body 19" W x 11-3/4 at the lip; body 10" D x about 10-1/8 by drawing; 11 with the 6 in transition per manual" H

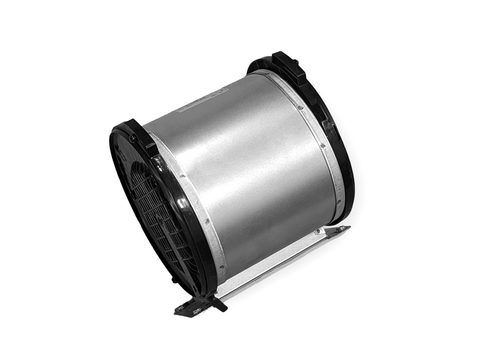

    BlowerInternal, single all-metal motor (single chamber)
    Speeds and airflow4 speeds: 150 / 300 / 450 / 600 CFM
    Noise1.0 / 6.0 sones
    Exhaust6" round, top
    Longest duct run50 ft equivalent
    Height above cooktop24" to 30"
    Power120V 60Hz, 220 W
    ElectricalPlug-in (120V plug). Needs a 120V, 60 Hz outlet on a separate 15-amp circuit inside the cabinet above the hood.
    Lights2 rectangular LED lights, 2.5 W each (12V); warm 3000K
    FiltersAluminum mesh grease filters; wash by hand with degreaser (not dishwasher safe); clean about every 30 hours of use. Optional charcoal filters (2) for recirculation.
    ControlsElectronic push buttons: light on/off, 4 fan speeds (Quiet, Low, Medium, High), fan on/off with 3-minute auto-off timer
    Without outside ventingOptional recirculation: charcoal filters (ordered separately) plus louvred vents in the cabinet top, side or doors (louvres not included)
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    Warranty5-year parts warranty (original purchaser, ordinary home use, US and Canada; excludes bulbs and filters)

    What you get

    What's in the box

    • Q6-21 range hood insertwith 120V plug
    • 6 in round duct transition
    • Aluminum mesh filters
    • M4 button head screws (x6)for the transition

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test it first

      Plug the hood in and check the fan and lights before it is enclosed.

    2. 2

      Cut the cabinet bottom

      Cut a 19 in x 10 in opening, at least 3/4 in from the wall. The cabinet needs front doors for access.

    3. 3

      Add wood blocking

      Fasten fire-rated wood blocking inside the cabinet to hold the hood.

    4. 4

      Slide it in and fasten

      Lift the hood into the opening and screw it to the blocking through the pre-drilled side holes.

    5. 5

      Connect the duct

      Attach the 6 in transition and run 6 in round metal duct to a wall or roof cap. Tape every joint with aluminum foil tape.

    6. 6

      Plug in and add filters

      Plug the hood into its outlet and fit the filters.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Q6 manualPDF · 1.9 MB Download

    Specs and drawings

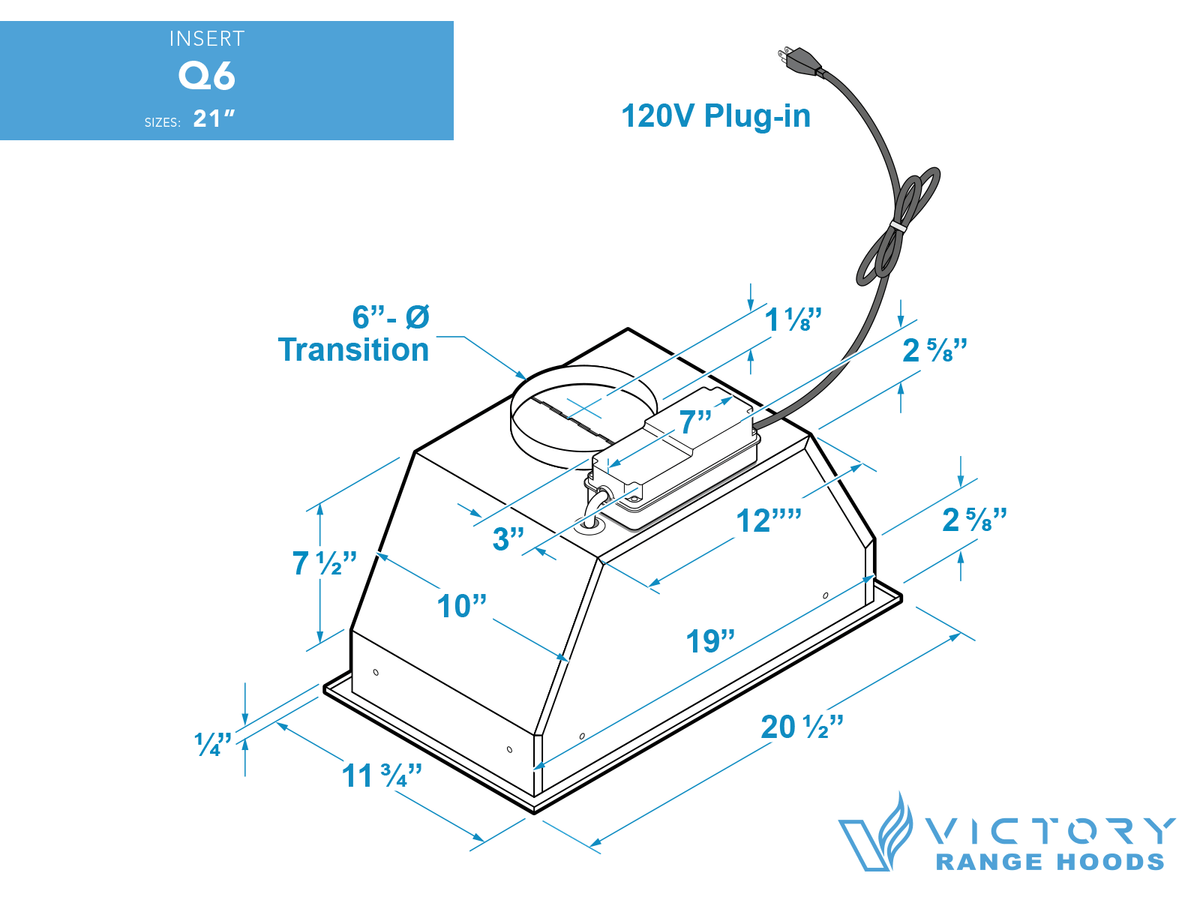

    • Victory Q6 dimensionsPDF · 1.6 MBDownload

    Questions

    Frequently asked questions

    Will it fit in a standard 12 inch deep cabinet?

    Yes. Victory lists it at 11-3/4 in deep at the lip. Cut a 19 in x 10 in opening in the cabinet bottom, at least 3/4 in from the wall.

    Can I use it in a wider wood hood?

    The lip is only 20-1/2 in x 11-3/4 in, so the hood needs a bottom panel with Victory's 19 x 10 in cut-out. It can't hang in a wide open bottom.

    How loud is it?

    Victory's manual rates it at 1.0 sones on the lowest speed and 6.0 sones on the highest.

    Does it have to vent outside?

    Ducting outside through 6 inch round duct is the standard setup. Victory's manual also shows a ductless option using charcoal filters (ordered separately) and louvred vents in the cabinet.

    Are the filters dishwasher safe?

    Victory's manual says the aluminum filters are not dishwasher safe. Soak them in degreaser, rinse and dry, about every 30 hours of use.

    How high should it hang above my cooktop?

    Victory recommends 24 to 30 inches from the cooktop to the bottom of the hood, with 28 inches as the sweet spot.

    What is the warranty?

    Victory's manual gives a 5-year parts warranty to the original purchaser. Bulbs and filters are not covered.

    Questions about venting or fit?

    Call or email us and we'll help you check the details before you order.

    Call us(508) 419-4276Email usSend a question
