VICTORY Sunset Flush Ceiling Mount Range Hood, 600 CFM (Sunset)

List price $2,599.00Marked down to $1,871.28You save $727.72

Airflow
150 / 300 / 450 / 600 CFM
Noise
1.0 / 2.5 / 4.0 / 6.0 sones
Hood size
38-1/2" W x 19-1/2" D
Duct
6" round
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

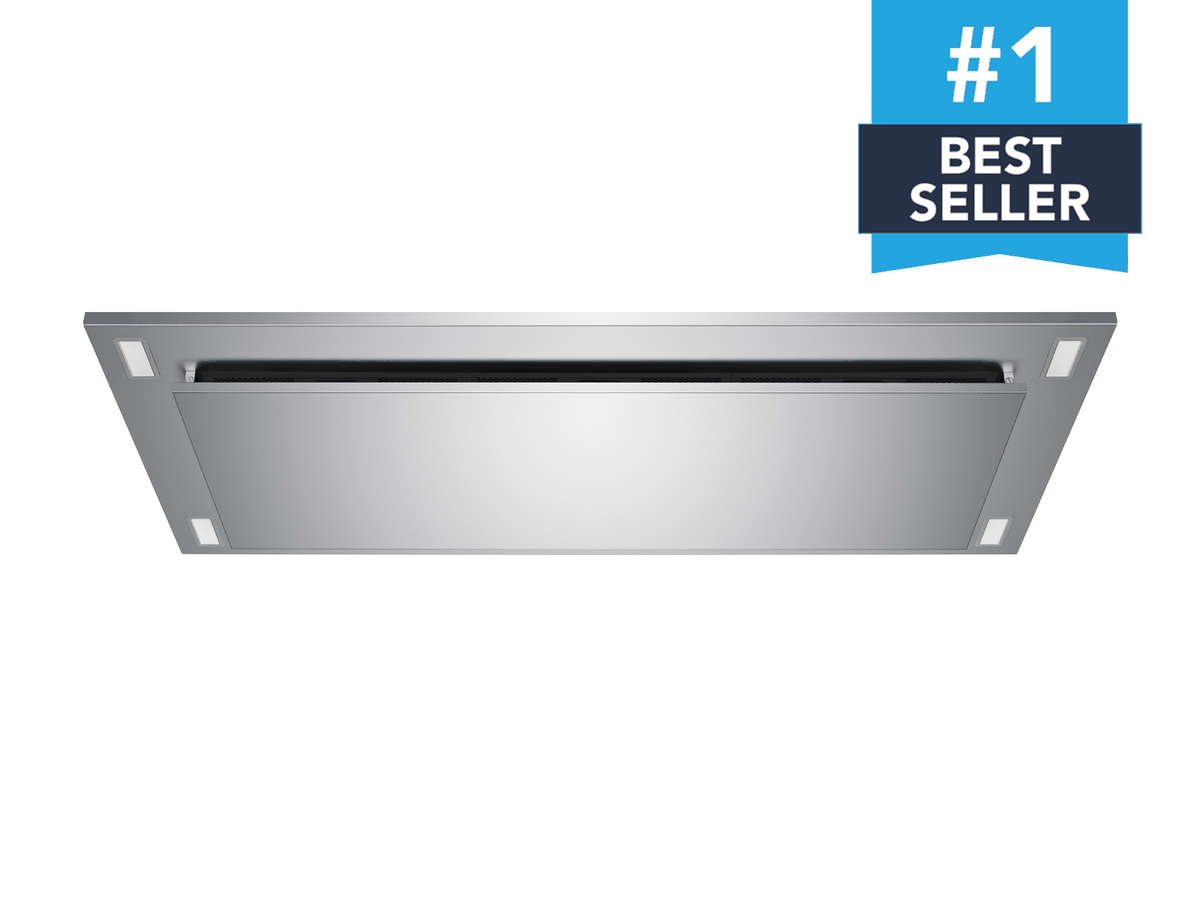

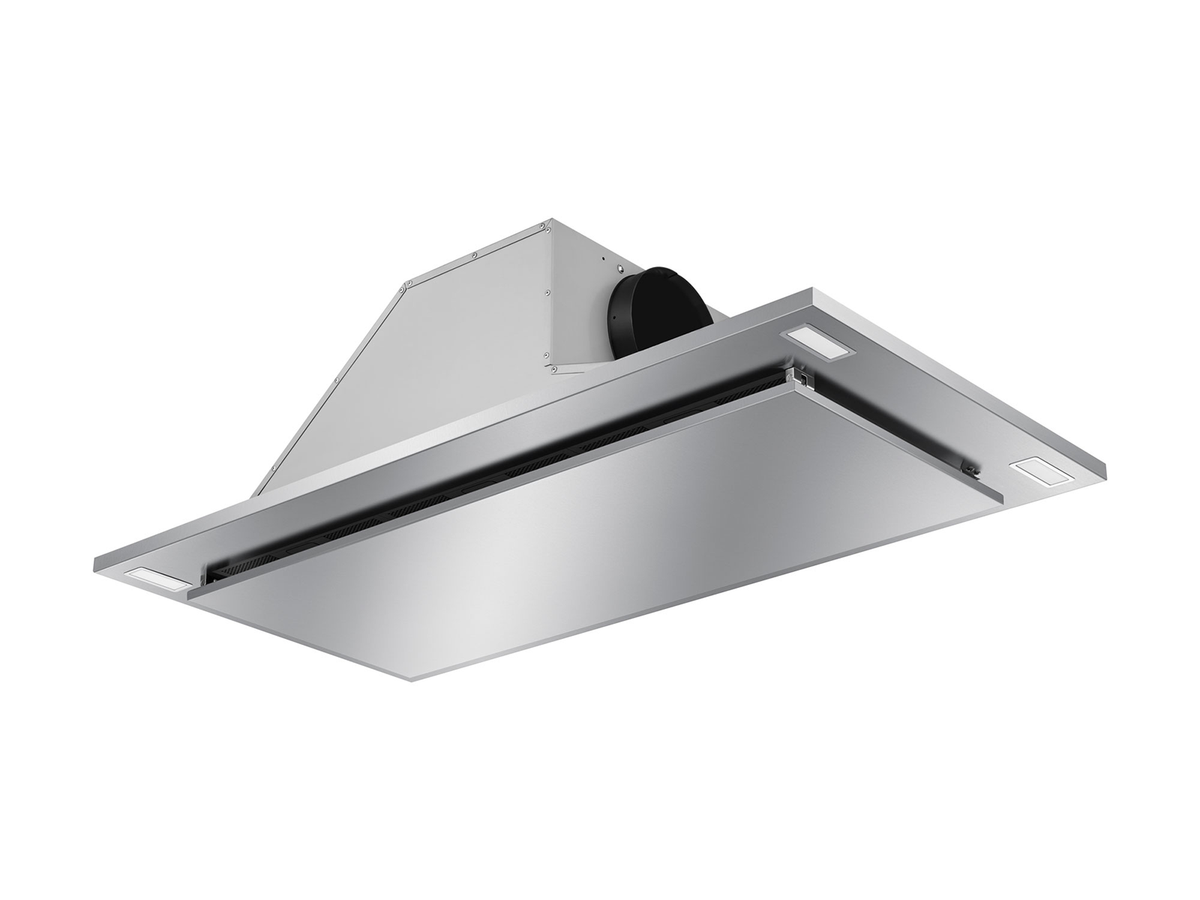

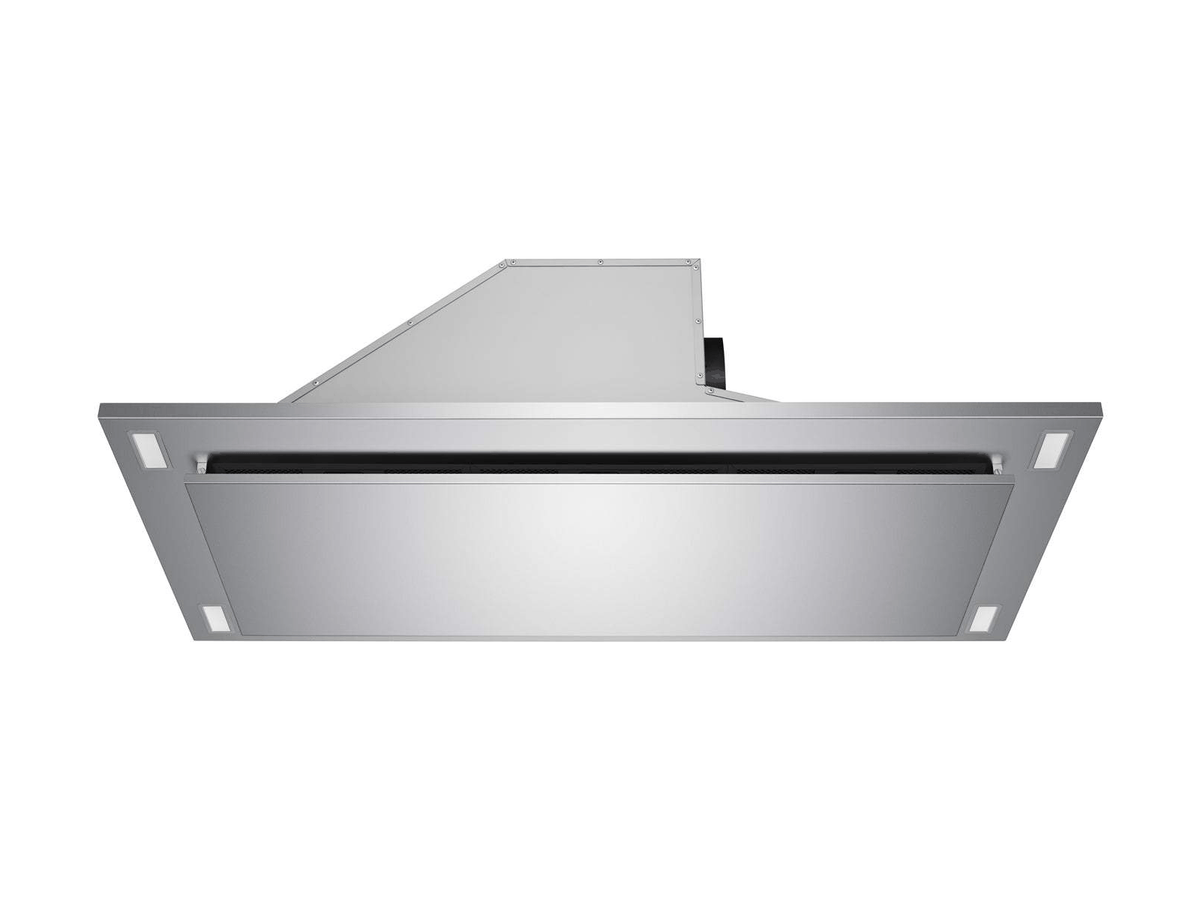

Victory Sunset Flush Ceiling Mount Range Hood

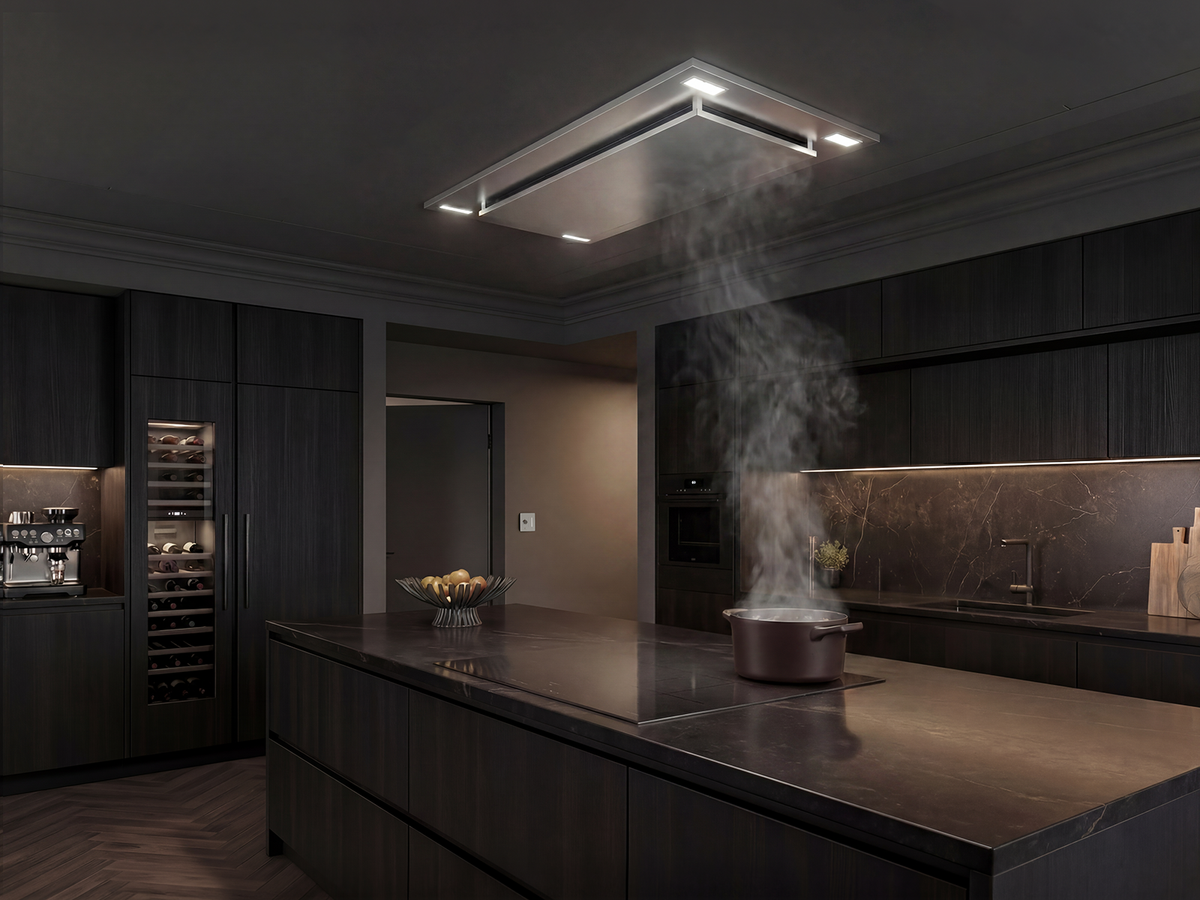

The Victory Sunset sits flush in the ceiling over your cooktop, so nothing hangs down to block the view. It is built to fit between standard ceiling joists 16" on center. A wired glass wall switch runs the 4-speed fan and dims the lights.

  1. Flush with the ceiling

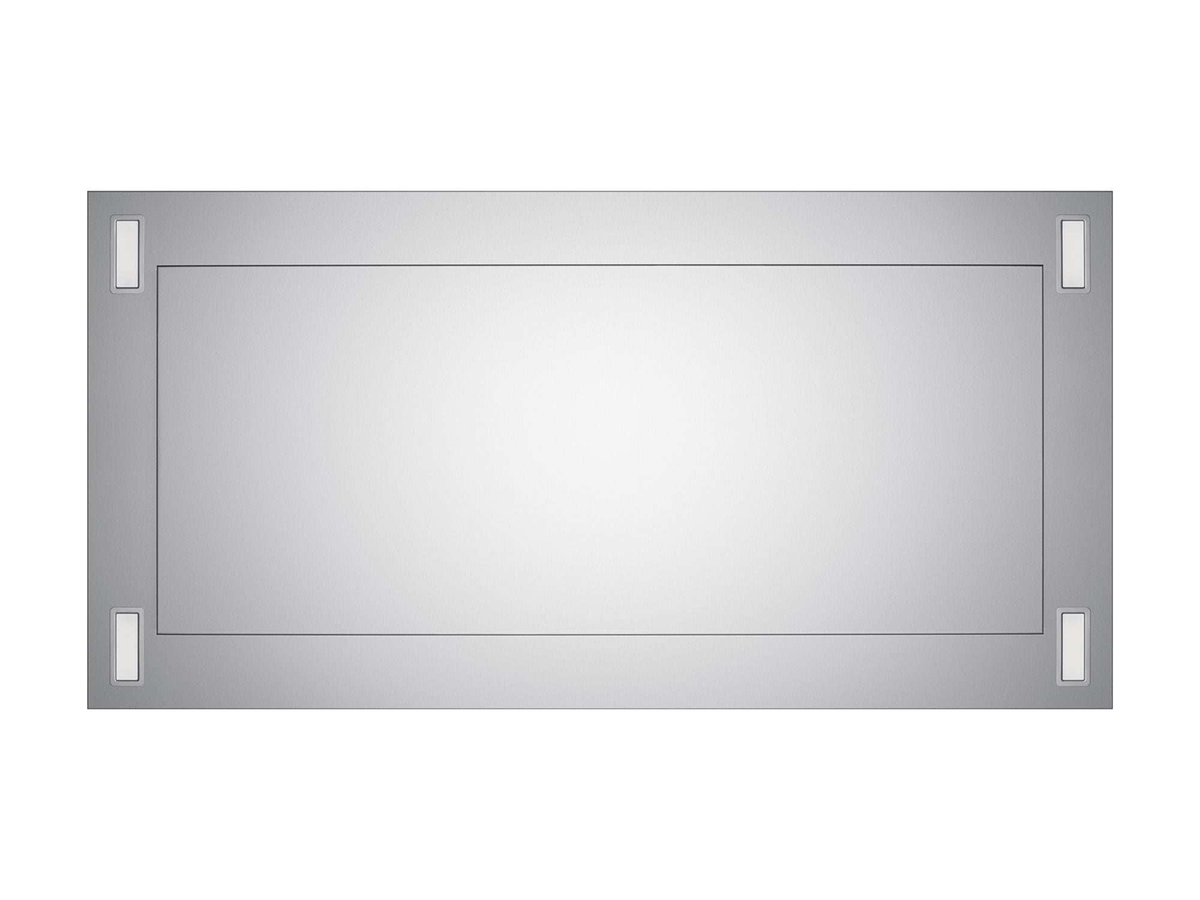

    The Sunset recesses into the ceiling between standard joists 16" on center. Only a 3/4" trim shows below the ceiling.

  2. Pulls air in at the edges

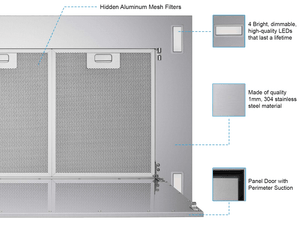

    Victory's perimeter suction design draws air in around the edges of the panel. Four speeds, up to 600 CFM.

  3. Controls on the wall

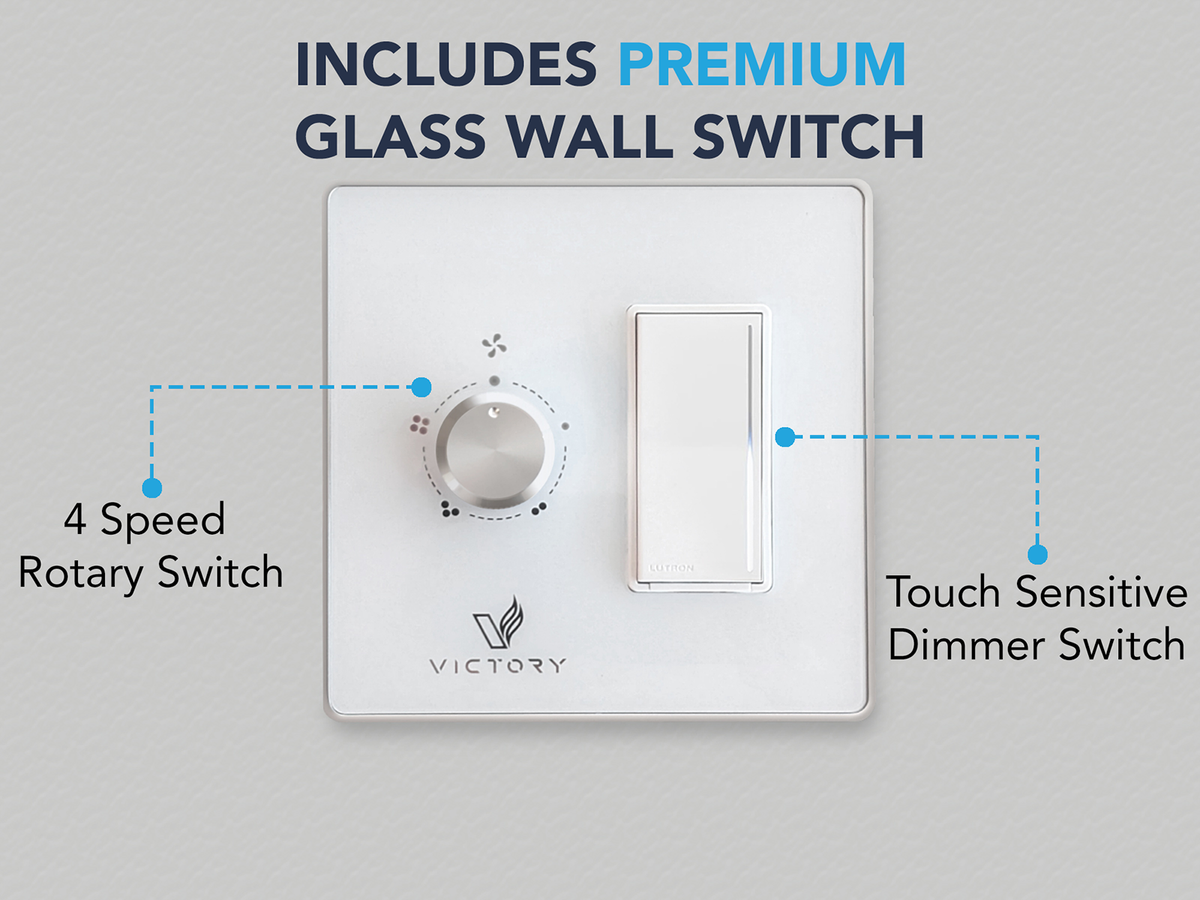

    The included glass wall switch has a 4-speed fan dial and a touch dimmer for the lights, so you never reach for the ceiling.

At a glance

Mount
Ceiling
Airflow
600 CFM max, 4 speeds
Noise
1.0 to 6.0 sones
Duct size
6" round, top or side
Hood size
38-1/2" W x 19-1/2" D
Material
304 stainless steel, 1 mm (19 gauge per P), seamless
Lights
4 dimmable LED lights, 2.5 W each, 12V, 3000K, 30,000 hour life
Filters

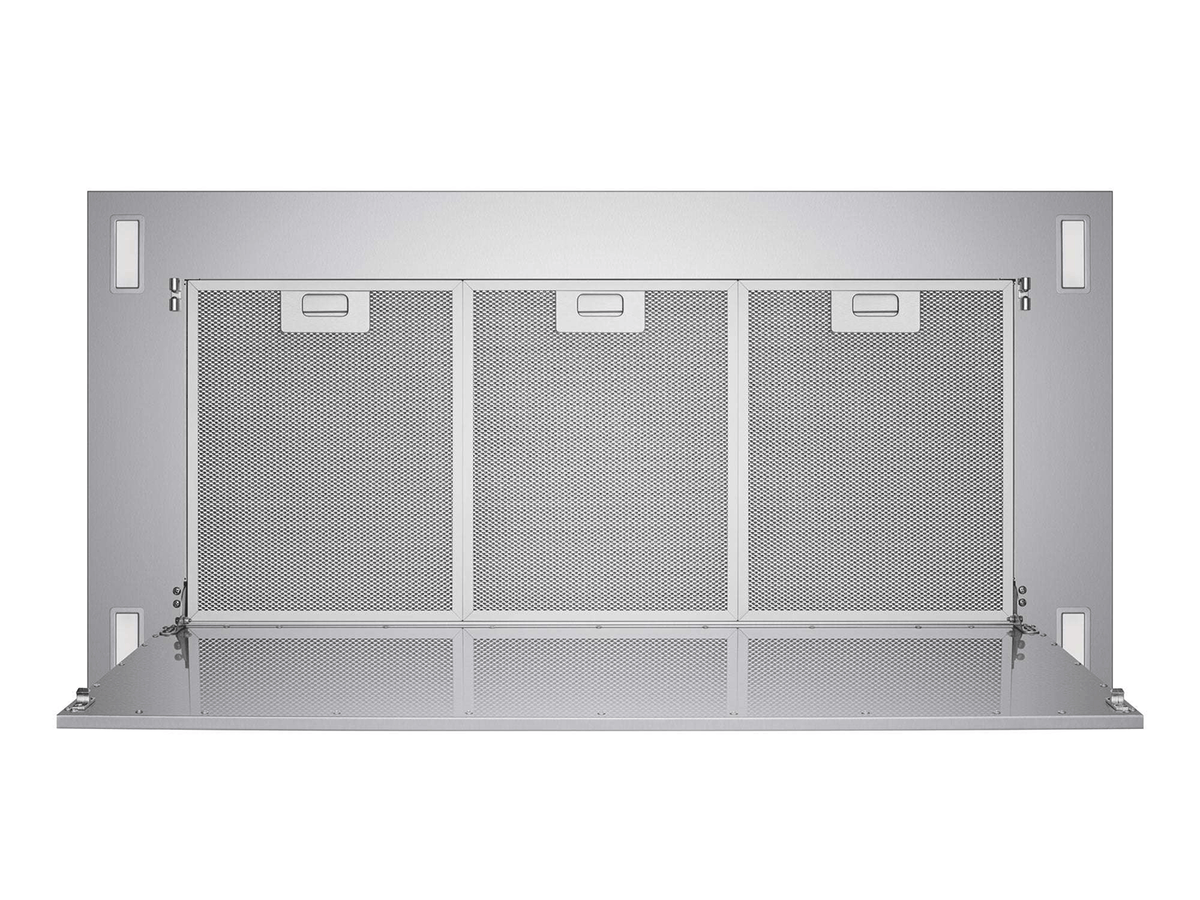

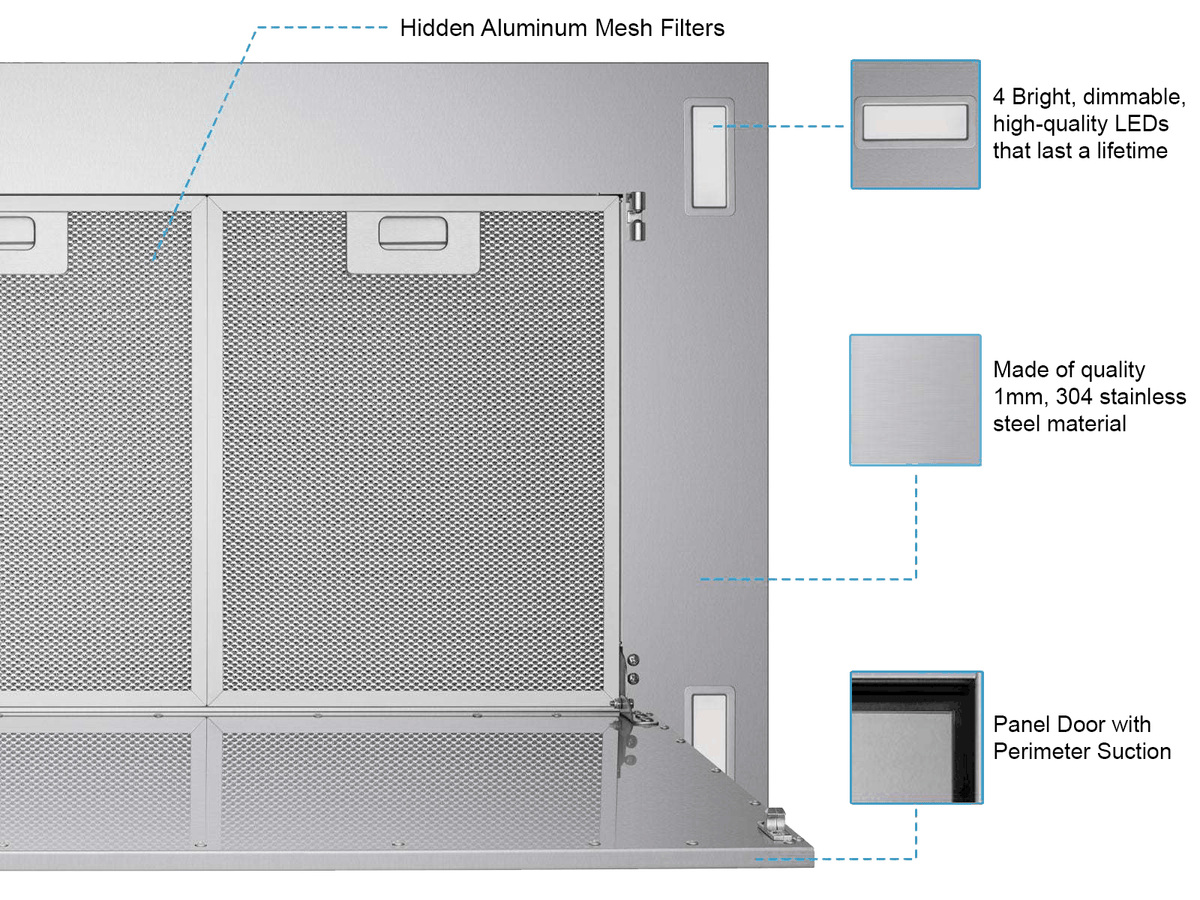

3 aluminum mesh filters behind a stainless steel door; wash by hand with degreaser (not dishwasher safe); clean every 30 hours of use
Power
120V 60Hz, 3.0 A
Weight
45.0 lb
Warranty
Lifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use, US and Canada; proof of purchase required. Excludes consumables (light bulbs, metal and charcoal filters).
Model
Sunset

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelSunset
    Mount typeCeiling
    Body304 stainless steel, 1 mm (19 gauge per P), seamless
    FinishBrushed stainless

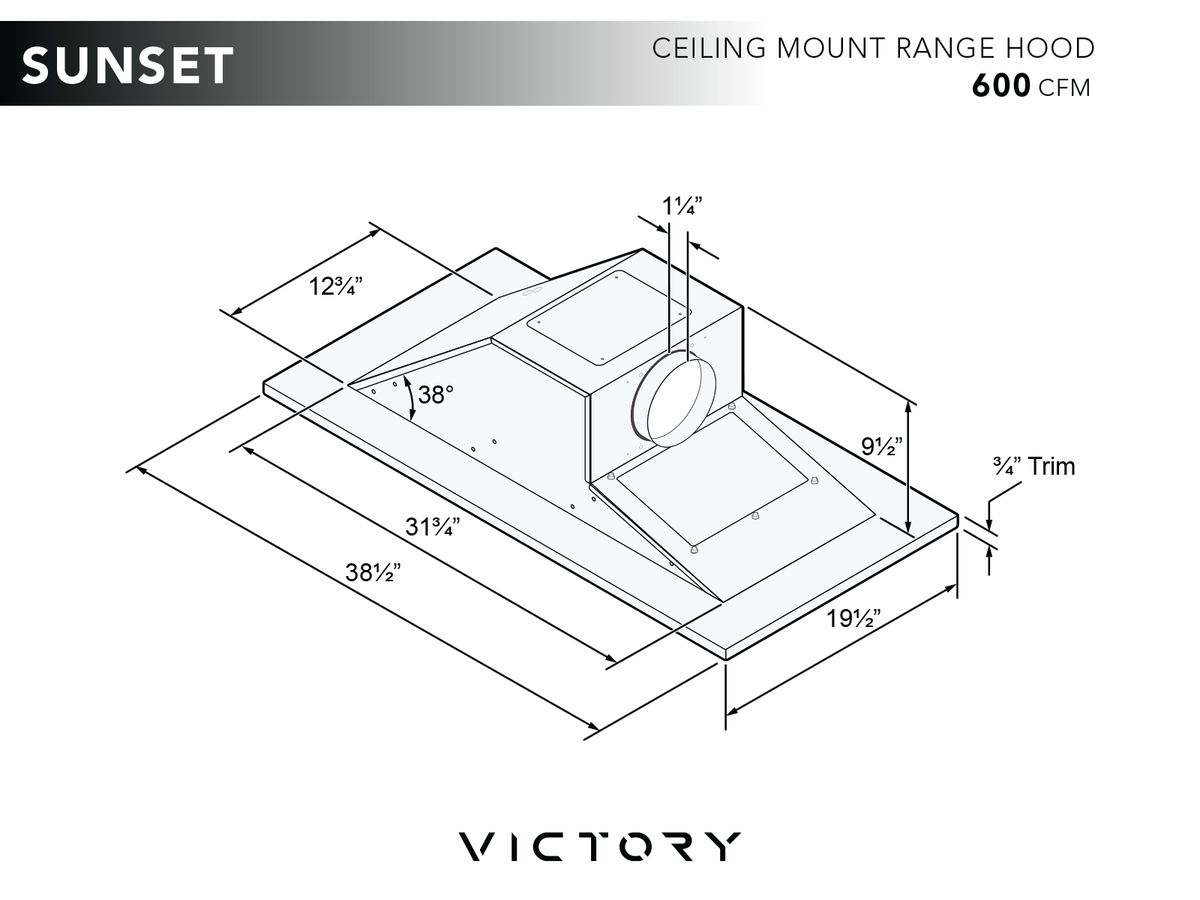

    Size38-1/2" W x 19-1/2" D x 9-1/2 (recessed into the ceiling; 3/4 trim below)" H

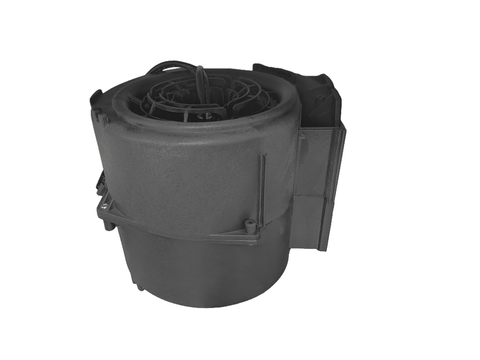

    BlowerInternal, single motor, single-chamber centrifugal squirrel cage, metal impeller
    Speeds and airflow4 speeds: 150 / 300 / 450 / 600 CFM
    Noise1.0 / 2.5 / 4.0 / 6.0 sones
    Exhaust6" round, top or side
    Longest duct run50 ft equivalent
    Height above cooktop48" recommended
    Power120V 60Hz, 310 W, 3.0 A
    ElectricalHardwired. 120V, 60Hz on a separate 15 A circuit. The included wall switch connects to the hood with two 14-3 cables (6 conductors + ground), plus a 14-2 cable from the panel; cables not included. Wiring by a certified electrician.
    Lights4 dimmable LED lights, 2.5 W each, 12V, 3000K, 30,000 hour life
    Filters3 aluminum mesh filters behind a stainless steel door; wash by hand with degreaser (not dishwasher safe); clean every 30 hours of use
    ControlsIncluded wall switch: 4-speed rotary fan dial and touch light dimmer, magnetic glass cover plate

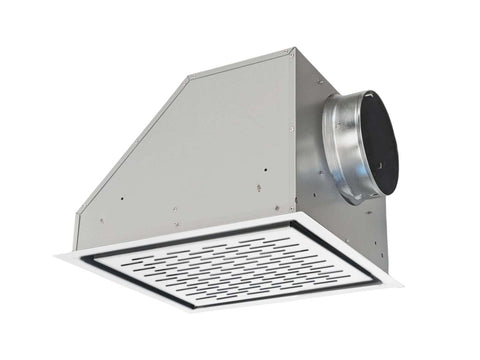

    Without outside ventingVictory sells a 6 in duct recirculation ceiling kit for the Sunset (charcoal + HEPA filter), sold separately. Otherwise the hood must be ducted outside.
    Weight45.0 lb
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    WarrantyLifetime motor warranty; 5-year parts warranty. Original purchaser, ordinary home use, US and Canada; proof of purchase required. Excludes consumables (light bulbs, metal and charcoal filters).

    What you get

    What's in the box

    • Range hoodWith 4 LED lights and the internal blower
    • Aluminum mesh filtersx3

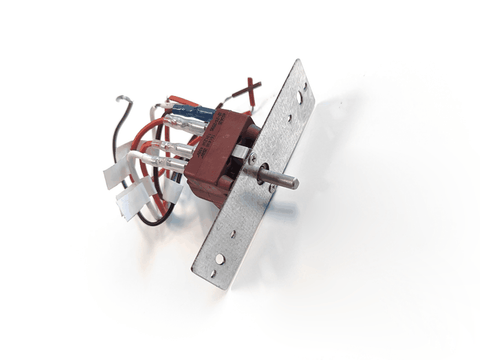

    • Rotary fan switch and knob4 speeds
    • LED touch light bar switch with dimmer
    • Dual electrical boxFor the wall switch
    • Magnetic metal plate housing and magnetic glass cover plateWall switch faceplate
    • Allen key (M3)

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test it first

      Victory says to test the fan and lights before the hood is recessed into the ceiling.

    2. 2

      Plan the rough-in

      Line the hood up with the joists and center it over the cooktop. The ceiling cut-out goes between two joists; add blocking if they are more than 14" apart.

    3. 3

      Pick the vent direction

      Use the side outlet, or follow the manual to rotate the blower to the top outlet. Test the blower again after rotating it.

    4. 4

      Wire the wall switch

      A certified electrician runs two 14-3 cables from the wall switch to the hood's electrical box, plus a 14-2 cable from the panel.

    5. 5

      Lift and connect the duct

      With a helper, lift the hood into the ceiling and attach the 6" duct. Seal every joint with aluminum foil tape.

    6. 6

      Fasten to the joists

      Remove the filters and drive wood screws through the side walls into the joists on each side. Reinstall the filters.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Sunset manualPDF · 8.3 MB Download

    Specs and drawings

    • Victory Sunset spec sheetPDF · 2.6 MBDownload
    • Victory Sunset dimensionsPDF · 1.2 MBDownload
    • Victory Sunset fan performancePDF · 1.6 MBDownload

    Questions

    Frequently asked questions

    Will it fit between my ceiling joists?

    Victory designed the Sunset to fit between joists 16" on center. The manual shows a ceiling cut-out of about 32" x 13" between two joists. If your joists are more than 14" apart, your installer adds wood blocking to bring the opening to 13". The joists and the cooktop must line up the same way; if they don't, the hood may need to drop into a framed box.

    Does it vent out the top or the side?

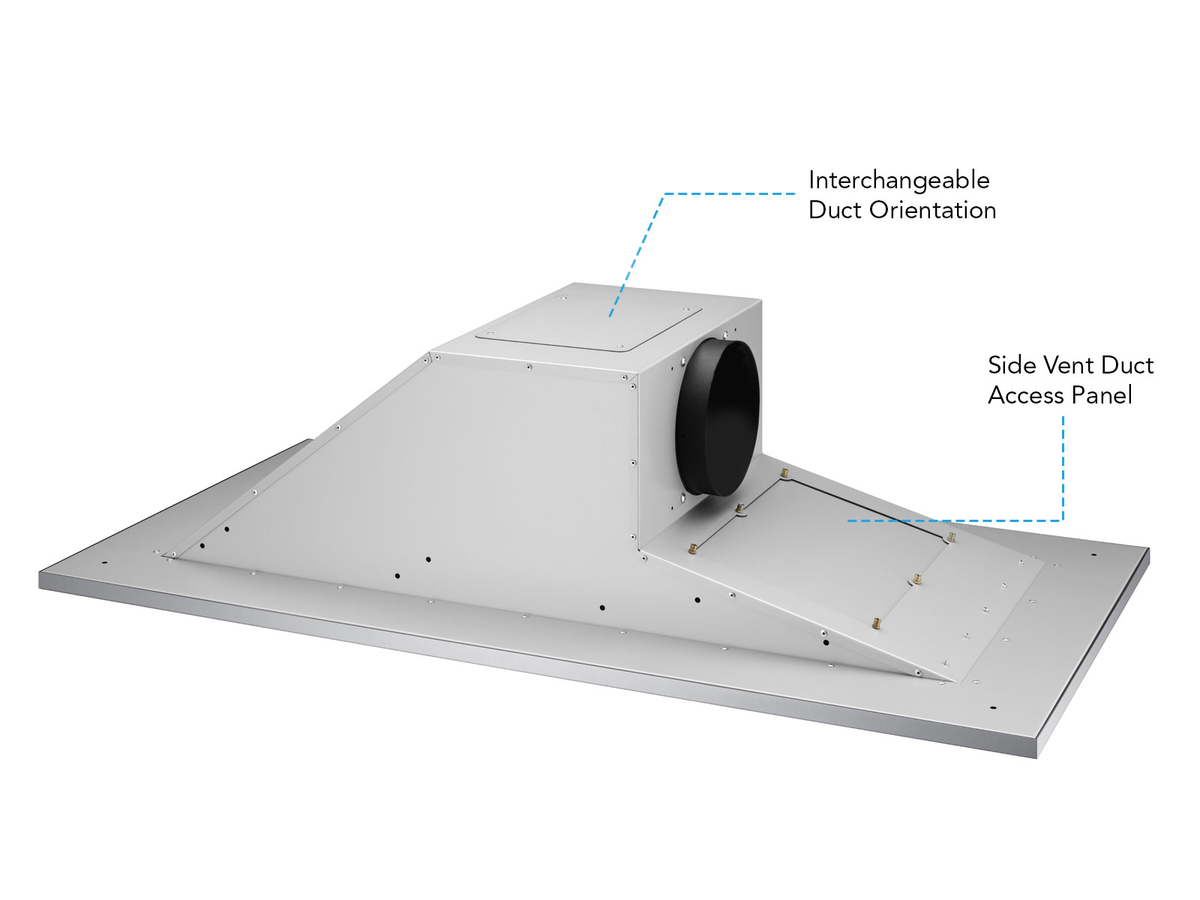

    Either. It uses a 6" round outlet on the top or the side of the blower housing. Victory's manual shows how to turn the blower to switch from side vent to top vent. Plan the direction with your installer before the ceiling is opened up.

    How loud is it?

    Victory rates it at 1.0 sones on the lowest speed and 6.0 sones on high. One sone is roughly the sound of a refrigerator.

    What size duct does it need?

    6" round metal duct at minimum, and rigid duct works best. The run can be up to 50 feet of straight duct, minus 9 feet for each 90° elbow, 5 feet for each 45° elbow, and 7 feet each for a round-to-rectangle piece and the wall or roof cap. For a long run, Victory says to step up to 8" duct. No reducers and no plenum boxes.

    How high above the cooktop should it be?

    Victory recommends 48" between the cooktop and the bottom of the hood, and says the hood works best at no more than about 8 feet from the floor. Higher is possible but less efficient.

    How is it wired?

    It is hardwired, not plugged in. It needs a 120V, 60Hz supply on its own 15 A circuit. The wall switch connects to the hood with two 14-3 cables, plus a 14-2 cable from the panel; the cable is not included. Victory says a certified electrician should do the wiring.

    How do I clean the filters?

    Open the stainless door to reach the three aluminum mesh filters. Victory says to clean them after every 30 hours of use. They are not dishwasher safe: spray them with a degreaser, let them soak if they are very dirty, then dry and reinstall.

    What does the warranty cover?

    Victory gives a lifetime motor warranty and a 5-year parts warranty to the original buyer for home use. Keep your receipt. Light bulbs and filters are consumables and are not covered, and damage from improper installation is not covered.
