VICTORY SV400J Island Range Hood, 600 CFM (SV400J)

List price $1,699.00Marked down to $1,223.28You save $475.72

No Charcoal Filters selected

Add Charcoal Filters for Recirculation?

Airflow
200 / 400 / 600 CFM
Noise
1.0 / 3.5 / 5.5 sones
Hood size
13-3/4 diameter" W x 13-3/4 diameter" D
Duct
6" round
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

Victory SV400J Island Range Hood

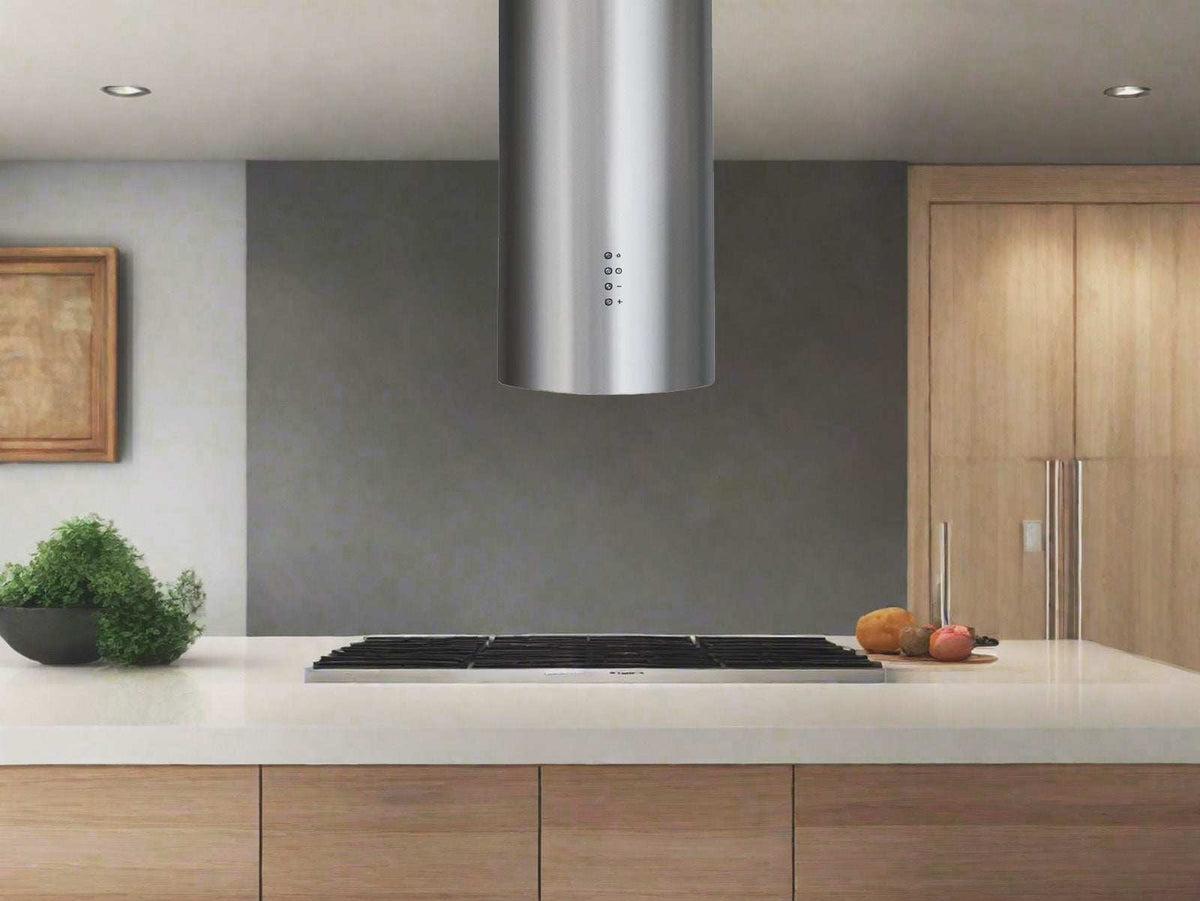

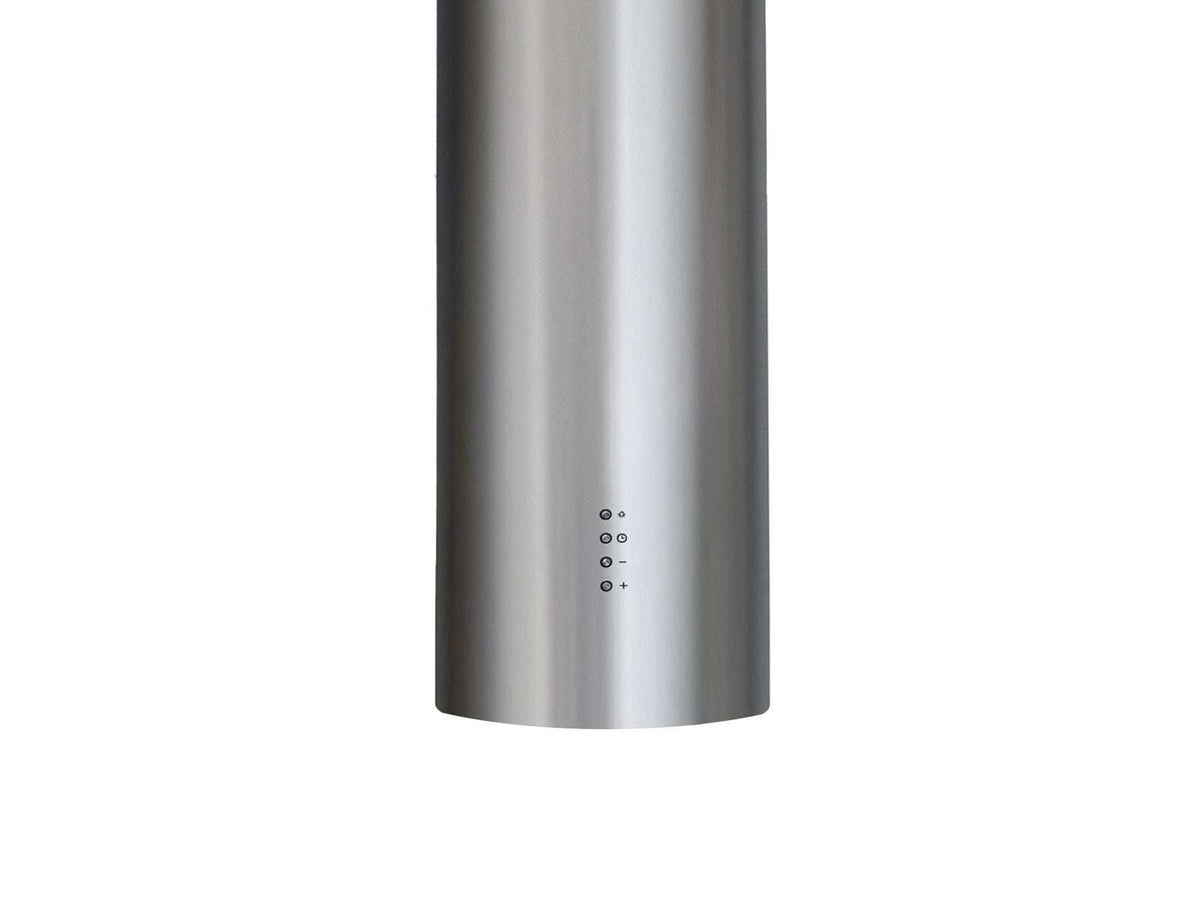

The Victory SV400J is a slim stainless steel cylinder hood that hangs from the ceiling over an island cooktop. It vents outside through 6 inch duct with up to 600 CFM, and it can also run ductless if you add charcoal filters.

  1. Slim over the island

    A 13-3/4 inch stainless cylinder keeps sightlines open across the kitchen.

  2. Ducted or ductless

    Vent outside through 6 inch duct, or add charcoal filters to recirculate when ducting is not an option.

  3. Quiet on low

    Rated 1.0 sone on low and up to 600 CFM on high.

At a glance

Mount
Island
Airflow
600 CFM max, 3 speeds
Noise
1.0 to 5.5 sones
Duct size
6" round, top
Hood size
13-3/4 diameter" W x 13-3/4 diameter" D
Material
Seamless stainless steel
Lights
2 LED lights, 1 W, 12 V
Filters
1 aluminum mesh grease filter (not dishwasher safe); charcoal filters for ductless use sold separately
Power
120V 60Hz, 4.0 A
Warranty
1-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered.
Model
SV400J

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Options
    OptionPart numberPrice
    No Charcoal FiltersVICTORY-SV400J-NO-CHARCOAL-FILTERS$1,699.00 $1,223.28
    Yes (1 set of Charcoal Filters)VICTORY-SV400J-YES-1-SET-OF-CHARCOAL-FILTERS$1,699.00 $1,223.28
    Yes (2 sets of Charcoal Filters)VICTORY-SV400J-YES-2-SETS-OF-CHARCOAL-FILTERS$1,699.00 $1,223.28
    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelSV400J
    Mount typeIsland
    BodySeamless stainless steel
    FinishBrushed stainless

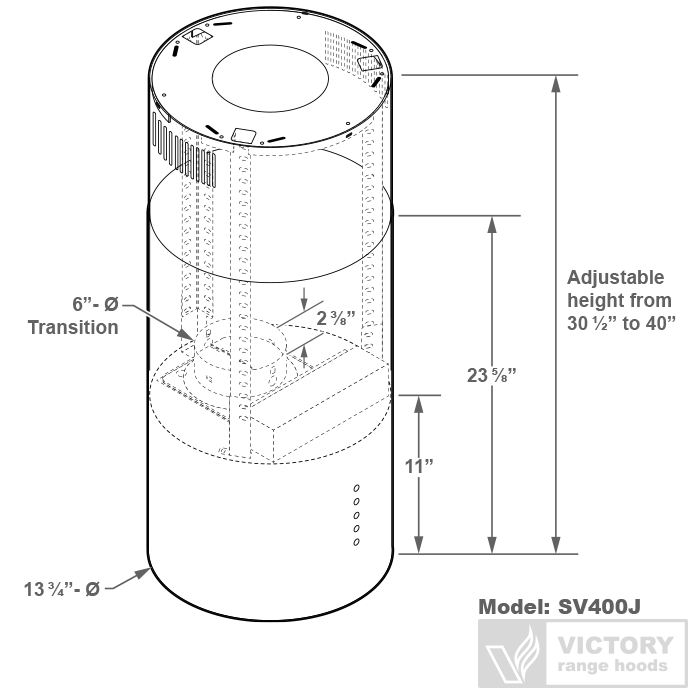

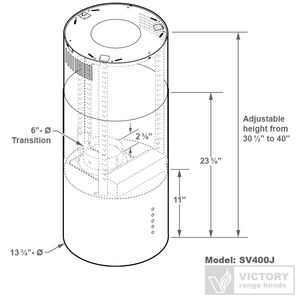

    Size13-3/4 diameter" W x 13-3/4 diameter" D x 30-1/2 to 40 (adjustable cylinder, hood plus chimney)" H
    BlowerInternal, single-motor centrifugal squirrel cage
    Speeds and airflow3 speeds: 200 / 400 / 600 CFM
    Noise1.0 / 3.5 / 5.5 sones
    Exhaust6" round, top
    Longest duct run50 ft equivalent
    Height above cooktop24" to 30"
    Ceiling height8 ft with the included frame and chimney; for 10 ft ceilings contact Victory for frame post and chimney extensions
    Power120V 60Hz, 122 W, 4.0 A
    ElectricalPlugs into a 120V outlet mounted inside the ceiling frame, on a separate 15 A circuit. Victory says a certified electrician should install the wiring.
    Lights2 LED lights, 1 W, 12 V
    Filters1 aluminum mesh grease filter (not dishwasher safe); charcoal filters for ductless use sold separately
    ControlsElectronic push buttons: power, low / mid / high, lights

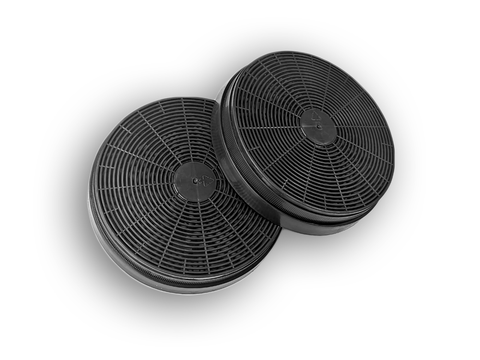

    Without outside ventingDucted to the outside as standard. Optional ductless (recirculating) use with charcoal filters, ordered separately; replace them every 3 to 6 months.
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    Warranty1-year parts warranty. Original purchaser, ordinary home use, US and Canada, proof of purchase required. Consumables (lights, metal and charcoal filters) not covered.

    What you get

    What's in the box

    • SV400J hood with chimney
    • Mounting bracket (x1)
    • Frame posts (x6) and frame anchors (x3)
    • Aluminum mesh grease filter (x1)
    • HardwareConcrete anchors, wood screws with anchors, M4 flange and button head screws, washers and nuts

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test first

      Plug the hood in and check the fan and lights before you mount or enclose it.

    2. 2

      Add ceiling support

      Add wood blocking between the joists and screw the round mounting bracket to it, centered over the cooktop.

    3. 3

      Power and duct

      Have an electrician install a 120V outlet inside the frame area. Run 6 inch metal duct to a roof or wall cap with a damper.

    4. 4

      Build the frame

      Bolt the frame posts to the bracket to set the hood 24 to 30 inches above the cooktop.

    5. 5

      Hang the hood

      With at least three people and a stable platform, lift the hood, connect the duct with foil tape, plug it in and fasten it to the frame.

    6. 6

      Filters

      Install the mesh filter, plus charcoal filters if you are running it ductless.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory SV400J manualPDF · 2.4 MB Download

    Questions

    Frequently asked questions

    Can it run without ducting?

    Yes, as an option. Add charcoal filters (choose a set when you order) and the hood filters the air and sends it back into the kitchen. Charcoal filters need replacing every 3 to 6 months. Venting outside through 6 inch duct is the standard setup.

    What ceiling height does it fit?

    As shipped, it fits an 8 foot ceiling. The hood and chimney together reach up to 40 inches. For a 10 foot ceiling, Victory offers frame post and chimney extensions.

    How high above the cooktop should it hang?

    24 to 30 inches from the cooktop to the bottom of the hood, centered over the cooktop.

    How do I clean the filter?

    Clean the aluminum mesh filter about every 30 hours of cooking. It is not dishwasher safe; soak it in a degreaser, dry it and reinstall.

    What is the warranty?

    Victory's manual gives a one-year parts warranty for the original purchaser. Lights and filters are not covered.
