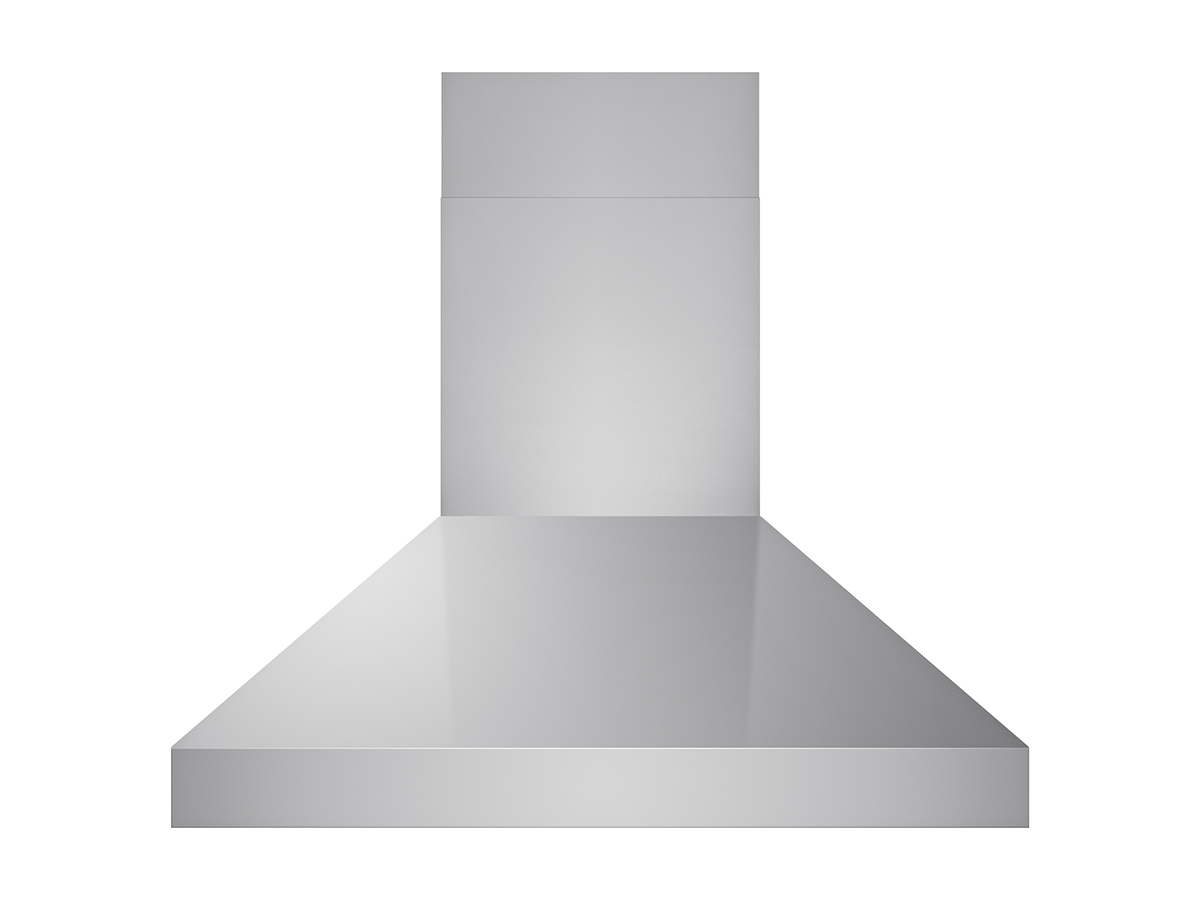

Victory Twister MAX Island 36 inch stainless steel island range hood, view 3

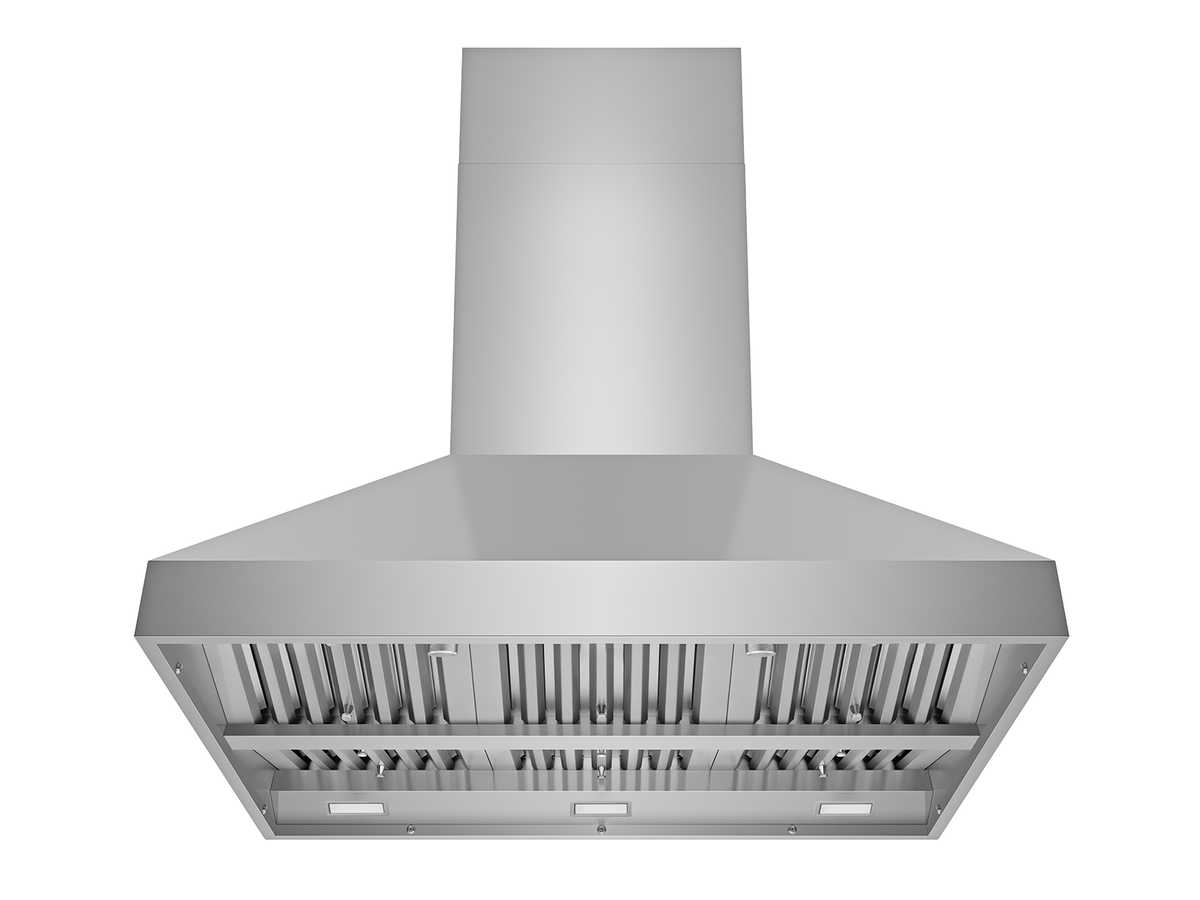

Victory Twister MAX Island 36 inch stainless steel island range hood, view 4

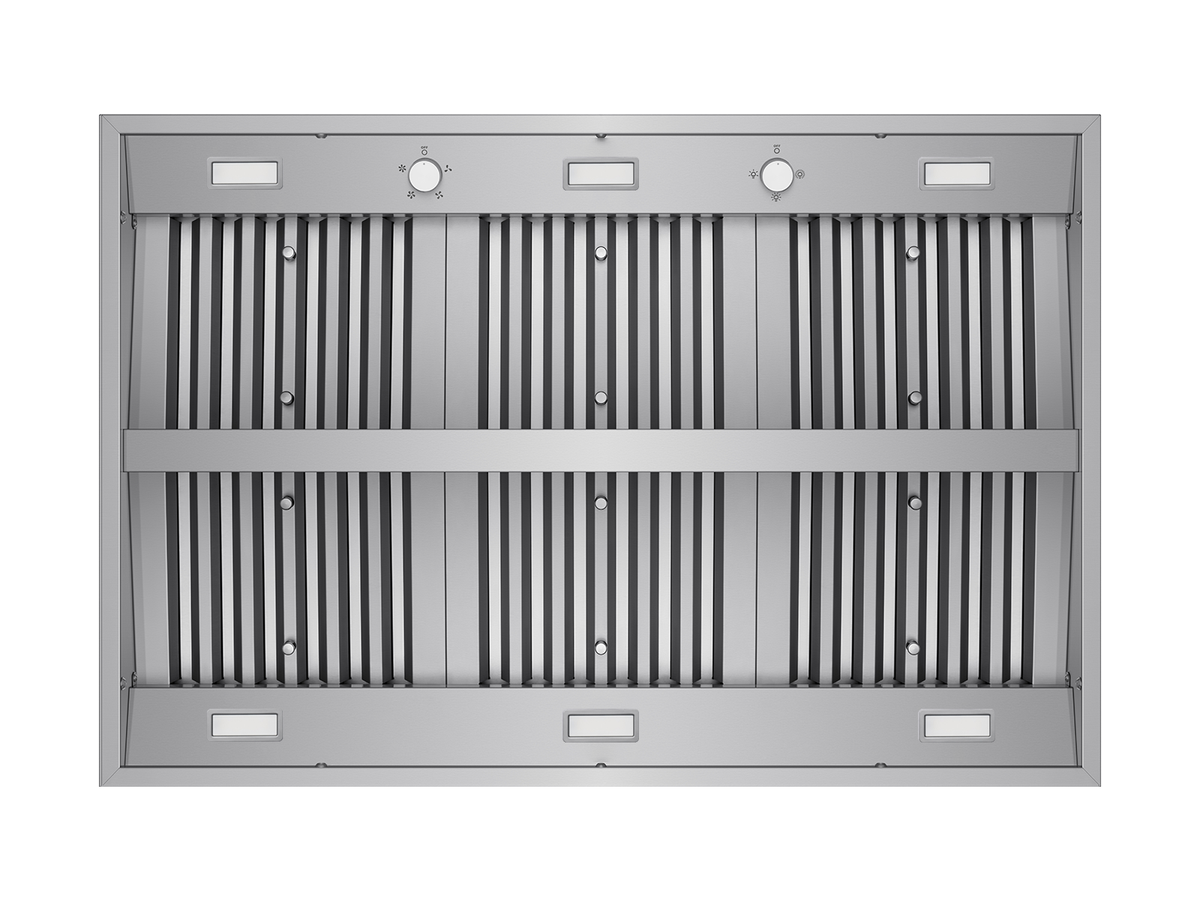

Victory Twister MAX Island 36 inch stainless steel island range hood, view 5
Victory Twister MAX Island 36 inch stainless steel island range hood, view 6
Victory Twister MAX Island 36 inch stainless steel island range hood, view 7
Victory Twister MAX Island 36 inch stainless steel island range hood, view 8
Victory Twister MAX Island 36 inch stainless steel island range hood, view 9
Victory Twister MAX Island 36 inch stainless steel island range hood

Victory Range Hoods Authorized dealer

VICTORY Twister MAX Island 36 Inch Island Range Hood, 1180 CFM (Twister-MAX-Island-36)

List price $2,799.00Marked down to $2,015.28You save $783.72

Airflow
1180 CFM
Noise
1.2 / 6.6 sones
Hood size
36" W x 28-1/4" D
Duct
8" round
  • Free shipping to the lower 48 states
  • Ships direct from Victory Range Hoods
  • Authorized Victory dealer
  • Ships to the lower 48 states only (no AK, HI or PR)

Questions before you order? Call (508) 419-4276

Overview

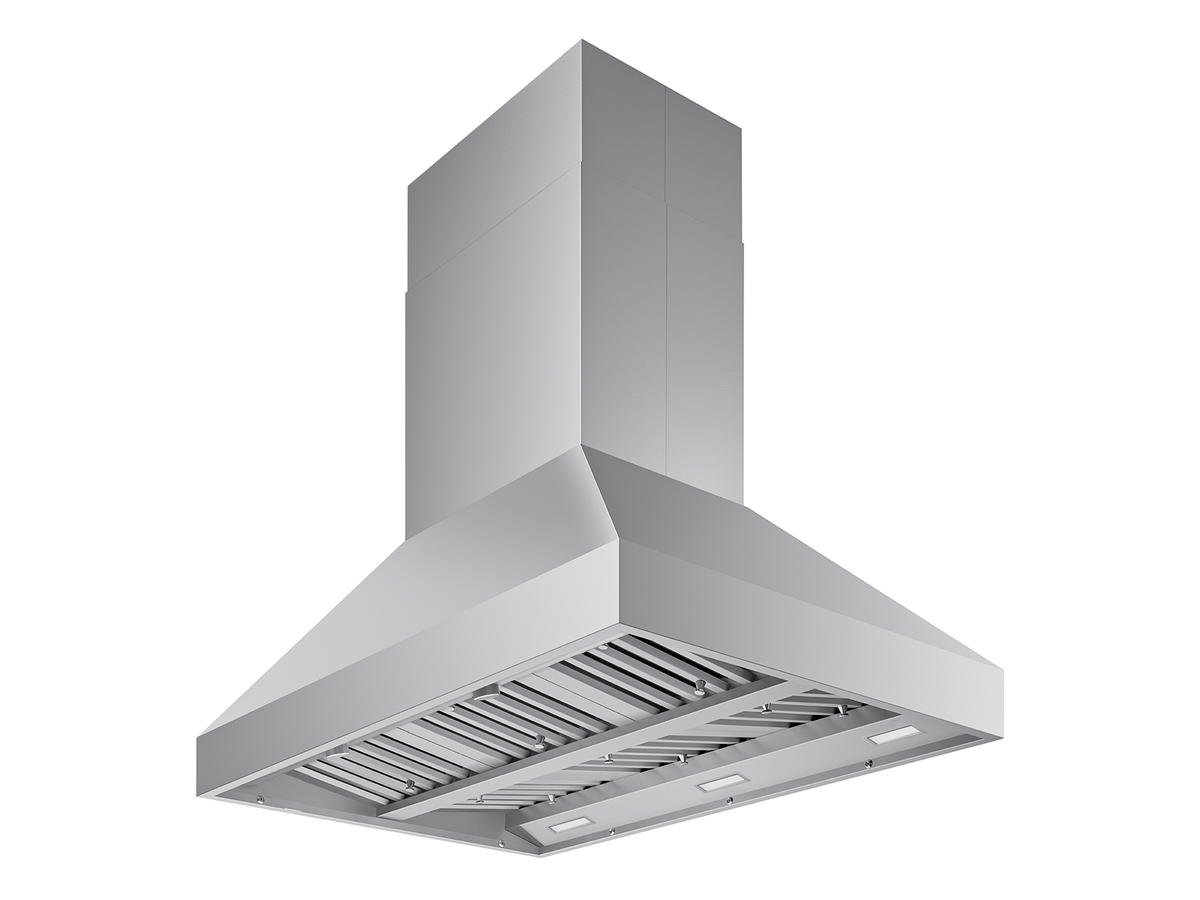

Victory Twister MAX Island 36 Inch Island Range Hood

The Victory Twister MAX Island is a 36 inch island range hood with a double-chamber, all-metal blower for heavy cooking. It is built from 19 gauge stainless steel, runs on simple rotary knobs, and has dishwasher-safe baffle filters. Made for big islands and cooks who use high heat.

  1. Built for high heat

    A double-chamber, all-metal blower with four speeds handles searing and frying.

  2. Deep 28-1/4 inch canopy

    A deep hood gives smoke and steam more room to be caught over a busy island.

  3. Dishwasher-safe filters

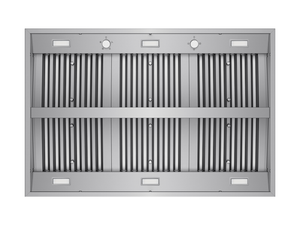

    Stainless steel baffle filters and grease tunnels lift out and clean in the dishwasher.

At a glance

Mount
Island
Airflow
1180 CFM max, 4 speeds
Noise
1.2 to 6.6 sones
Duct size
8" round, top
Hood size
36" W x 28-1/4" D
Material
Stainless steel, 19 gauge (Victory's page says 304 grade)
Lights
4 x 2.5W LED, dimmable (3000K per Victory's page)
Filters
Dishwasher-safe stainless steel baffle filters plus 2 grease tunnels (4 filters on the 36 in model)
Power
120V 60Hz
Warranty
Lifetime motor warranty; 5-year parts warranty (original purchaser, ordinary home use, US and Canada, proof of purchase required; consumables such as light bulbs and metal filters excluded)
Model
Twister MAX Island

Will it fit?

Check your kitchen

Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.

1Where is your cooktop?
2Tell us about your cooktop

Count only the cooktop or range under this hood. A separate wall oven doesn't count. The BTU is on the label under the cooktop or in your range's manual.

3How tall is the room?

36" is a typical counter height.

4Can the hood vent outside?
5Is there power near the hood?

Our suggestions

Answer what you know. Your suggestions show up here.

    Local code may differ. Your installer and building department have the final say.

    Want a second look? Call (508) 419-4276 or email us.

    Options and specs

    Options and full specifications

    Full specificationsFrom the maker's spec sheet and manual, for you or your installer
    Full specifications
    ModelTwister MAX Island
    Mount typeIsland
    BodyStainless steel, 19 gauge (Victory's page says 304 grade)

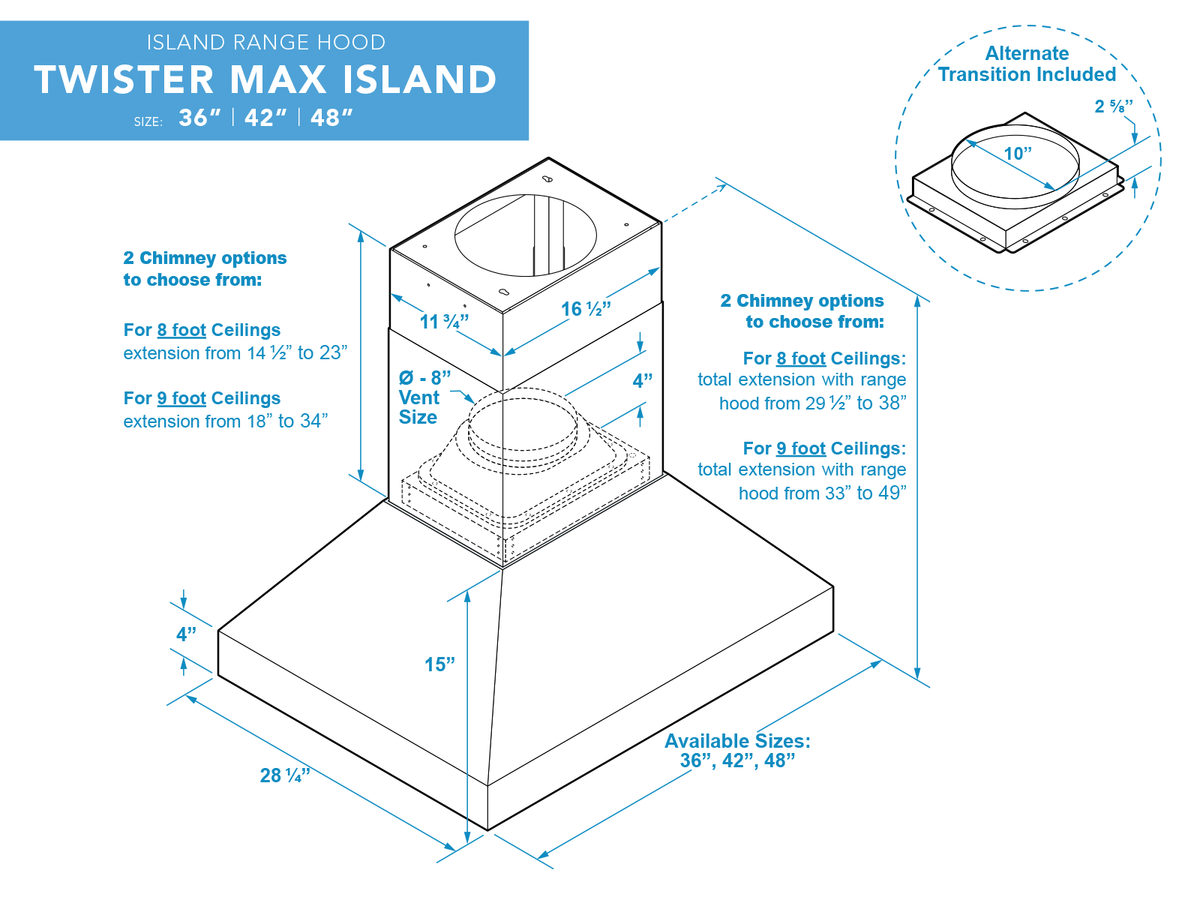

    Size36" W x 28-1/4" D x 15 (hood body); chimney extends 14-1/2 to 23 (8 ft ceiling option) or 18 to 34 (9 ft ceiling option); total with hood 29-1/2 to 38 or 33 to 49" H

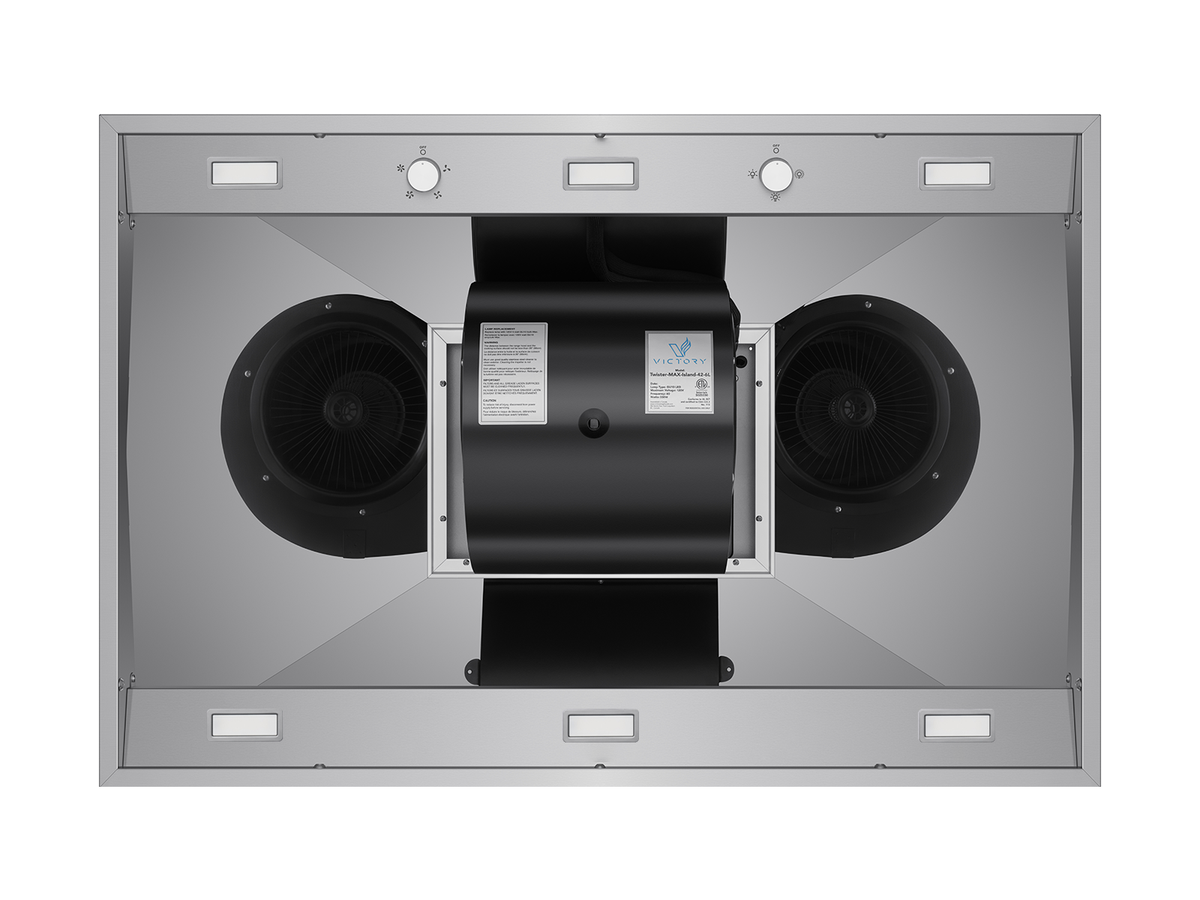

    BlowerInternal, double chamber, all-metal blower (metal blades)
    Airflow1180 CFM max
    Noise1.2 / 6.6 sones
    Exhaust8" round, top
    Longest duct run50 ft equivalent
    Height above cooktop28" to 36"
    Ceiling height8 to 9 ft (Victory's drawing shows chimney options for 8 ft and 9 ft ceilings); duct cover extension for 10 ft or 12 ft ceilings sold separately
    Power120V 60Hz, 310 W
    ElectricalPlug-in (comes with wire and plug); 120V, 60 Hz on a separate 15 A circuit; outlet installed in the ceiling between the support braces
    Lights4 x 2.5W LED, dimmable (3000K per Victory's page)
    FiltersDishwasher-safe stainless steel baffle filters plus 2 grease tunnels (4 filters on the 36 in model)

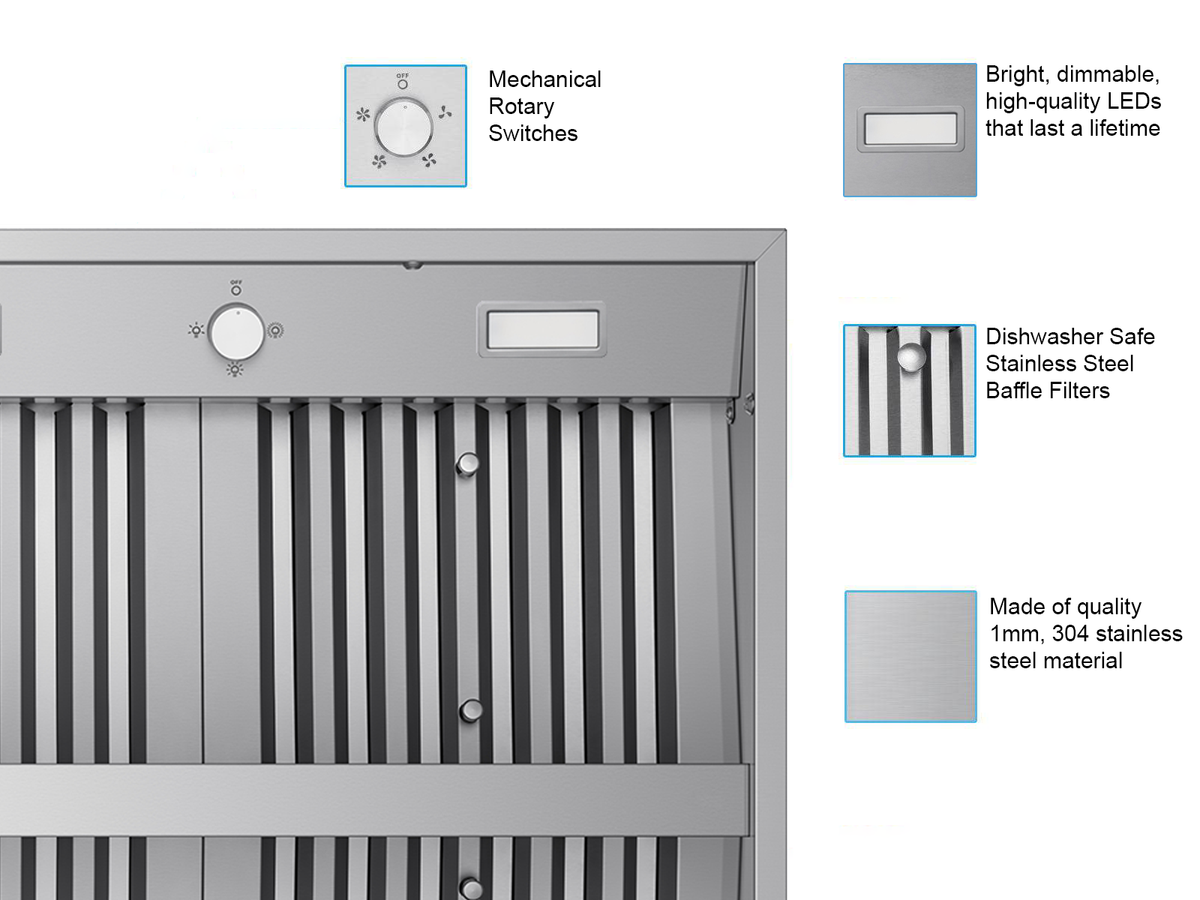

    ControlsMechanical rotary switches: 4-speed blower (Off, 1-4) and dimmable light
    Without outside ventingMust vent outside
    CertificationscETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113
    WarrantyLifetime motor warranty; 5-year parts warranty (original purchaser, ordinary home use, US and Canada, proof of purchase required; consumables such as light bulbs and metal filters excluded)
    Assembled inCanada

    What you get

    What's in the box

    • Island range hood

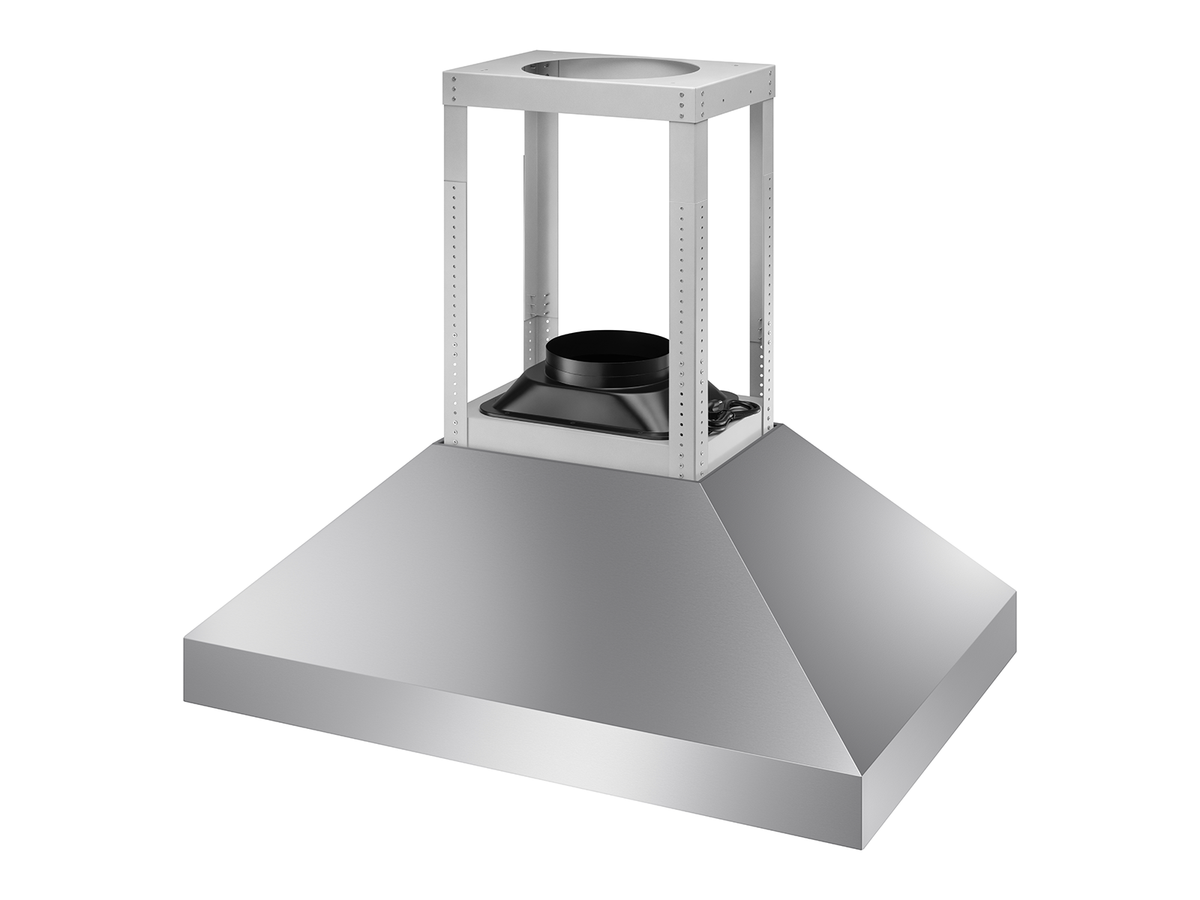

    • Support frame with extension arms
    • Upper and lower chimney covers
    • 8 inch round transitionStandard
    • 10 inch round transitionAlternate, included
    • Stainless steel baffle filters4 shown for the 36 inch model
    • Grease tunnels (2)
    • Foam rubber gasketSeals the transition to the hood
    • Screws and self-locking nutsExtra screws for added support may be needed (not included)

    Installing it

    How it goes in

    We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.

    1. 1

      Test and plan

      Plug the hood in and test it first. Mark the hood's center on the ceiling and check room for 8 or 10 inch duct.

    2. 2

      Add ceiling support

      Screw two 2x4s (wall vent) or 2x10s (roof vent) between the joists, then run the duct and a ceiling outlet between them.

    3. 3

      Mount the frame

      Screw the support frame to the ceiling and set the extension arms to the height you need.

    4. 4

      Hang the hood

      Fit the foam gasket and the 8 or 10 inch transition, then lift the hood onto the arms and fasten it. This takes three or more people.

    5. 5

      Connect and test

      Join the duct with foil tape, plug the hood in and check the fan and lights.

    6. 6

      Finish

      Raise the upper chimney to the ceiling, then install the filters and grease tunnels. Installation should be done by a qualified pro.

    We sell the hood, not the install

    We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.

    Instructions and drawings

    Downloads

    Save or print these for your installer before the work starts.

    Start hereVictory Twister MAX Island manualPDF · 2.9 MB Download

    Specs and drawings

    • Victory Twister MAX Island dimensionsPDF · 0.7 MBDownload

    Questions

    Frequently asked questions

    What size duct does it need?

    It comes set up for 8 inch round duct, and a 10 inch transition is included. Victory's manual rates it at 980 CFM on 8 inch duct and 1180 CFM on 10 inch duct. Use metal duct only, vented outside.

    What ceiling height does it fit?

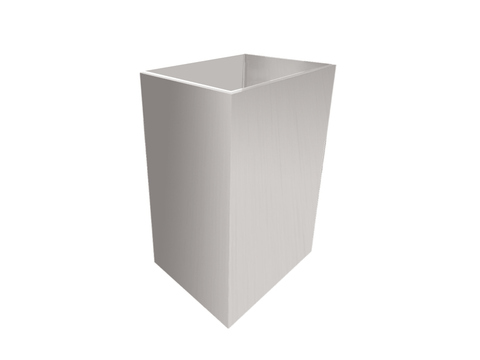

    Victory's drawing shows chimney options for 8 ft and 9 ft ceilings. For 10 ft or 12 ft ceilings, Victory makes a duct cover extension for the Twister MAX Island.

    How high should it hang above the cooktop?

    Victory recommends 28 to 36 inches between the cooktop and the bottom of the hood.

    Is it hardwired or plug-in?

    It comes with a cord and plug. You need a 120V outlet in the ceiling, on its own 15 amp circuit, hidden inside the chimney.

    Can it recirculate instead of venting outside?

    No. Victory's manual says the duct must end outside, through a roof or wall cap.

    What is the warranty?

    Victory gives a lifetime motor warranty and a 5-year parts warranty to the original purchaser.
