VICTORY Venice 48 Inch Under Cabinet Range Hood, 1200 CFM (Venice-48)
List price $2,999.00Marked down to $2,159.28You save $839.72
- Free shipping to the lower 48 states
- Ships direct from Victory Range Hoods
- Authorized Victory dealer
- Ships to the lower 48 states only (no AK, HI or PR)
Questions before you order? Call (508) 419-4276
Overview

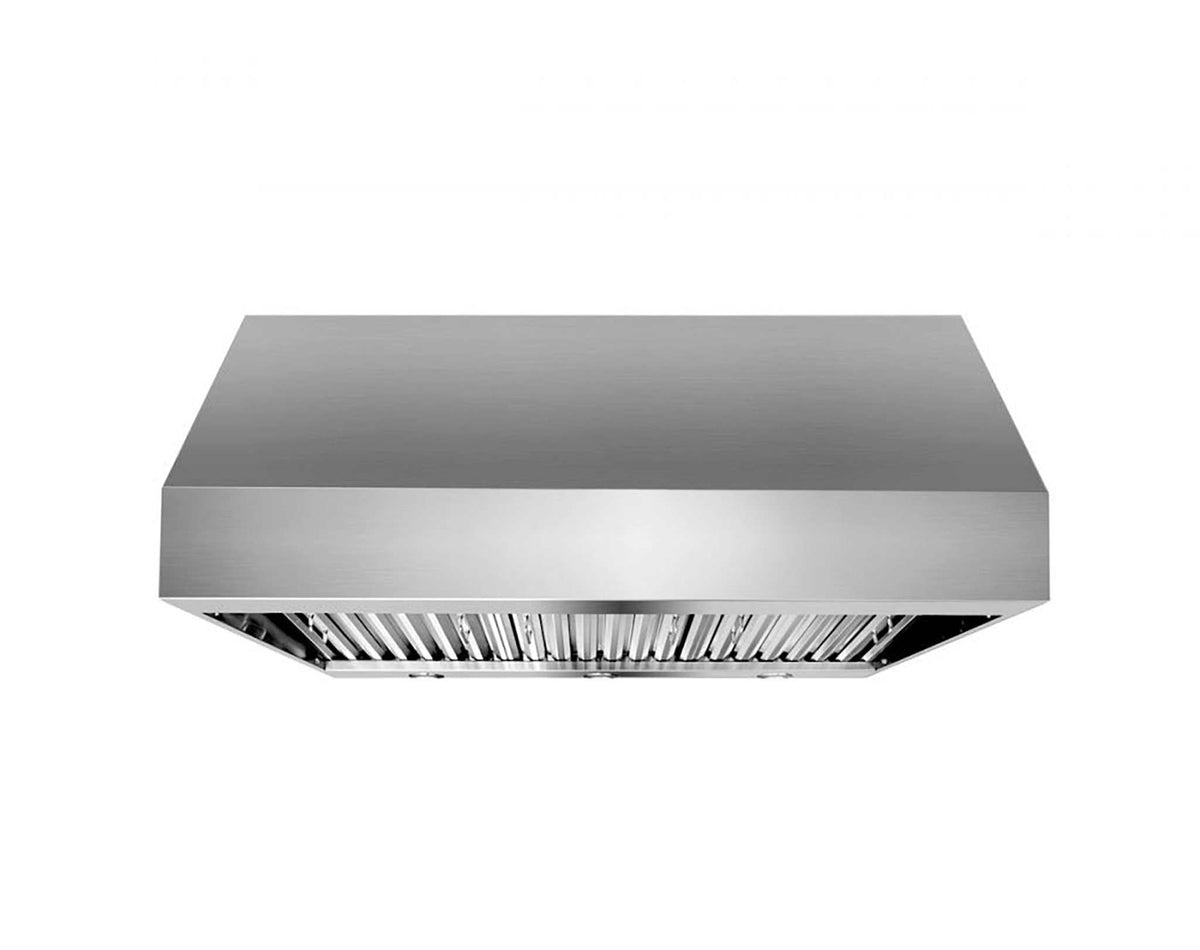

Victory Venice 48 Inch Under Cabinet Range Hood
The Victory Venice 48 inch is a big, pro-style under cabinet hood for wide ranges and serious cooking. It is nearly 25 inches deep, so it reaches the front burners, and it moves up to 1200 CFM with a 10 inch duct. Two rotary knobs run the fan and lights.
Up to 1200 CFM
A double chamber metal blower moves up to 1200 CFM with a 10 inch duct.
Extra-deep canopy
At 24-7/8 inches deep it reaches out over the front burners.
Light front and back
Six dimmable lights, three in front and three in back, light the whole cooktop.
At a glance
- Mount
- Under cabinet
- Airflow
- 1200 CFM max, 4 speeds
- Noise
- 1.2 to 6.6 sones
- Duct size
- 8" round, top
- Hood size
- 47-1/2" W x 24-7/8" D
- Material
- Stainless steel, 19 gauge (P also says 304 grade)
- Lights
- 6 dimmable GU10 lights (3 front, 3 back)
- Filters
- 3 stainless steel baffle filters with handles, plus grease tunnel
- Power
- 120V 60Hz
- Warranty
- Lifetime motor warranty (P) and 5-year parts warranty (M), original purchaser, US and Canada
- Model
- Venice
Will it fit?
Check your kitchen
Answer what you know and skip the rest. Each check uses the numbers in Victory's manual for this hood. Your installer makes the final call.
Our suggestions
Answer what you know. Your suggestions show up here.
Local code may differ. Your installer and building department have the final say.
Want a second look? Call (508) 419-4276 or email us.
Options and specs
Options and full specifications
Full specificationsFrom the maker's spec sheet and manual, for you or your installer
| Model | Venice |
|---|---|
| Mount type | Under cabinet |
| Body | Stainless steel, 19 gauge (P also says 304 grade) |
| Finish | Brushed stainless |
| Size | 47-1/2" W x 24-7/8" D x 18" H |
| Blower | Internal, double chamber centrifugal, metal blades |
| Airflow | 1200 CFM max |
| Noise | 1.2 / 6.6 sones |
| Exhaust | 8" round, top |
| Longest duct run | 50 ft equivalent |
| Height above cooktop | 28" to 36" |
| Power | 120V 60Hz, 510 W |
| Electrical | Comes with a wire and plug. Needs a 120V, 60Hz fused supply on a separate 15 amp circuit, grounded, by a qualified electrician. |
| Lights | 6 dimmable GU10 lights (3 front, 3 back) |
| Filters | 3 stainless steel baffle filters with handles, plus grease tunnel |

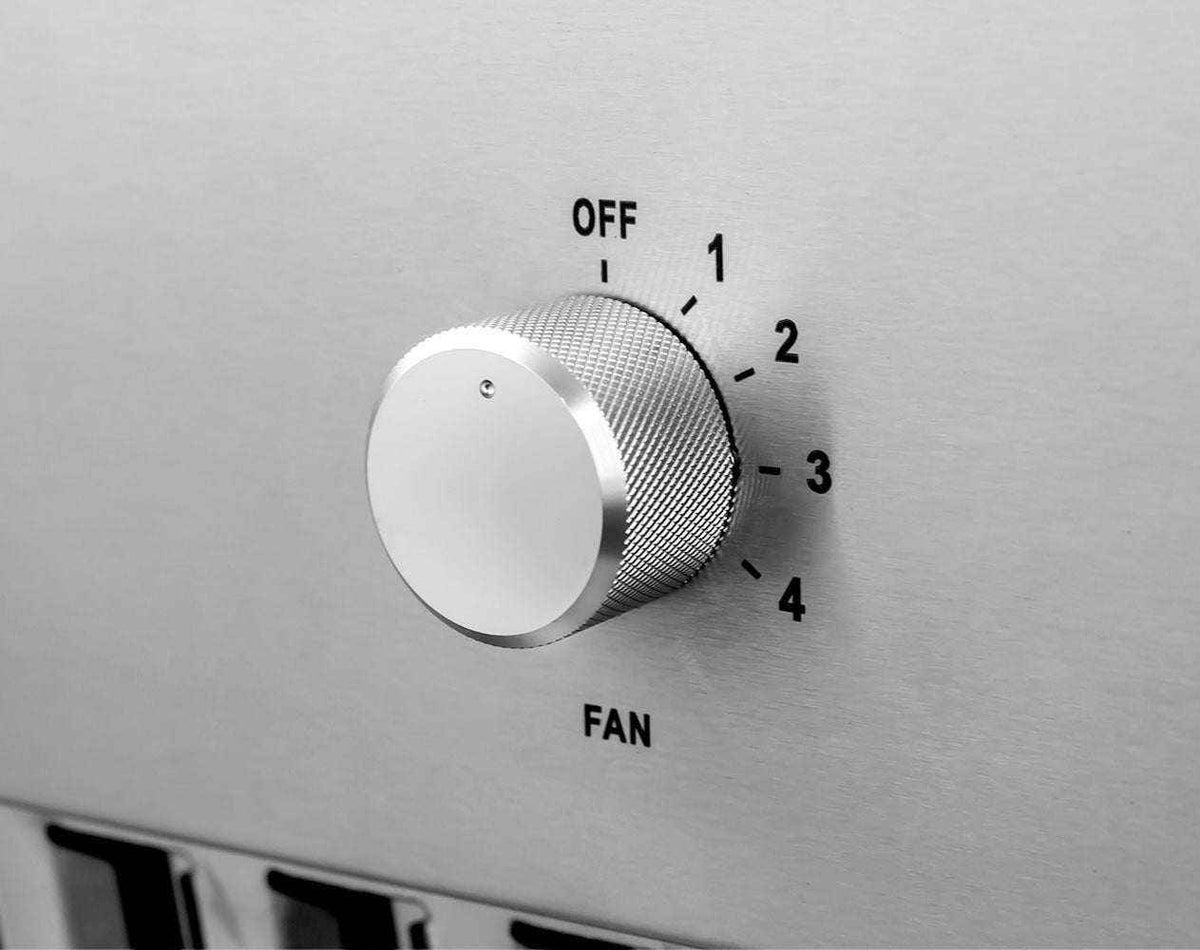

| Controls | Two mechanical rotary knobs: left = 4-speed fan, right = dimmable light |
| Without outside venting | Must vent outside |
| Certifications | cETLus (US and Canada); Conforms to UL 507; Certified to CSA C22.2 No. 113 |
| Warranty | Lifetime motor warranty (P) and 5-year parts warranty (M), original purchaser, US and Canada |
| Assembled in | Canada |
What you get
What's in the box
- Venice 48 range hood
- 8 in round duct transitionStandard (M p9)
- 10 in round duct transitionThe manual lists this as a requested option; Victory's page says both are included. Confirm with order.
- Stainless steel baffle filters (x3)
- Filter handles (x6)
- Grease tunnel
- Mounting bracketsFor wall mounting
- Inner ring light keyFor changing GU10 bulbs
- M5 and M4 screwsPer M p8
Installing it
How it goes in
We sell Victory hoods but don't install them. These steps summarize Victory's installation manual so you and your installer know what's involved. Always follow the manual and local codes.
- 1
Test it first
Unbox, check for damage, plug it in and run the fan and lights. Remove the filters and grease tunnel until the hood is mounted.
- 2
Plan height and duct
Set the hood 28 to 36 inches above the cooktop and plan an 8 or 10 inch metal duct run to the outside.
- 3
Attach the transition
Screw the 8 inch (or optional 10 inch) round transition to the top outlet with the M5 screws.
- 4
Cut the cabinet
Cut openings in the cabinet bottom for the transition and power, and drill pilot holes to match the hood.
- 5
Mount and connect
With two people, lift the hood and screw it to the cabinet and wall studs (wood screws not included). Connect and tape the duct.
- 6
Finish
Plug in, test, then install the grease tunnel and the three baffle filters.
We sell the hood, not the install
We don't install. A contractor, with an electrician for the power, should follow the maker's manual. Questions while you plan? Call us at (508) 419-4276.
Instructions and drawings
Downloads
Save or print these for your installer before the work starts.
Questions
Frequently asked questions
Do I need an 8 inch or 10 inch duct?
8 inch round is the minimum and gives up to 1000 CFM. Victory rates the Venice at 1200 CFM with a 10 inch duct, and recommends 10 inch for long runs.
How high above the cooktop should it go?
Victory's manual says 28 to 36 inches from the cooktop to the bottom of the hood.
How do I clean the filters?
The three stainless baffle filters and the grease tunnel lift out. Victory's manual says to clean them about every 30 hours of use with a degreaser.
Does it plug in?
Yes, it comes with a wire and plug. It needs a 120V outlet on its own 15 amp circuit, checked by an electrician.
What bulbs does it use?
It uses six GU10 bulbs that dim with the light knob. Replacement GU10 bulbs are common at hardware stores.
